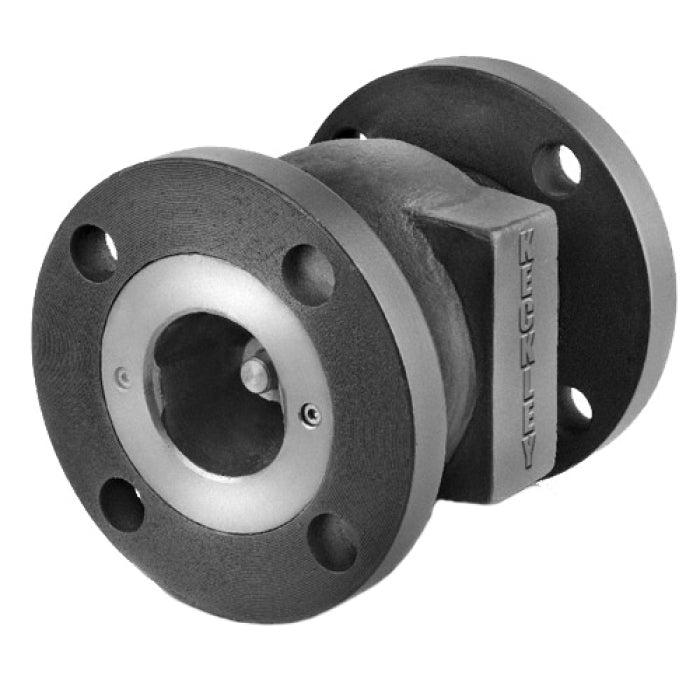

Keckley CG1F-CI-B2334-200 Globe Style Silent Check Valve 2 in

Product Description

Keckley CG1F-CI-B2334-200 is a globe style silent check valve designed to protect pipelines from liquid flow reversal. This valve is specifically suited for various liquid applications. However, it is not recommended for natural gas, steam, or vacuum services.

• Constructed from cast iron material
• 200 psi pressure rating with a temperature rating of one hundred fifty degrees Fahrenheit
• Flat face flanged end style for easier installation

Product Highlights

The Keckley Silent Check Valve combines durability and reliable performance in a compact design.

Product Information

Standard Information

• Brand: Keckley
• Manufacturer: Keckley

Technical Specifications

• Body Material: Cast Iron
• End Style: Flat Face Flanged
• Finish: Epoxy Coated
• Inlet to Outlet Length: 6-1/4 in
• Media: Gas/Oil/Water
• Nominal Size: 2 in
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Series: Style CG
• Temperature Rating: 150 deg F
• Trim Material: Cast Bronze Seat/Disc
• Type: Globe Style
• Dimensions: 6 in Dia
