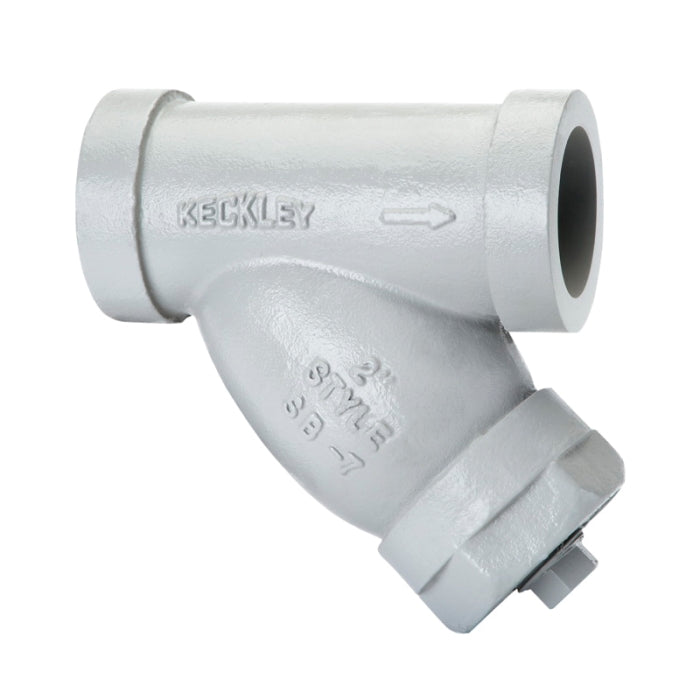

Keckley 25SWY-CS062P34-GTI-SB7 Wye Strainer 2 in

Product Description

The KECKLEY 25SWY-CS062P34-GTI-SB7 is a carbon steel Y-strainer with drain connections and pipe plugs. It allows the strainer screen to be cleaned while the system is in process. By opening the drain valve while the system is under pressure, debris trapped in the screen is blown through, reducing system shut-downs for maintenance and cleaning.

• Features a machined groove in the body and cap for proper alignment.
• Furnished standard with a NPT blow-off connection.
• Gasket is 304 stainless steel spiral wound for maximum strength and durability.

Product Highlights

This Keckley wye strainer is made of cast carbon steel with a socket weld connection and a 1 in blow-off size.

Product Information

Standard Information

• Brand: KECKLEY
• Manufacturer Part Number: 25SWY-CS062P34-GTI-SB7

Technical Specifications

• Blow-Off Size: 1 in
• Body Material: Cast Carbon Steel
• Connection Type: Socket Weld
• Domestic/Import: Import
• Grade: WCB
• Nominal Size: 2 in
• Overall Length: 6-15/16 in
• Series: Style SB7I
