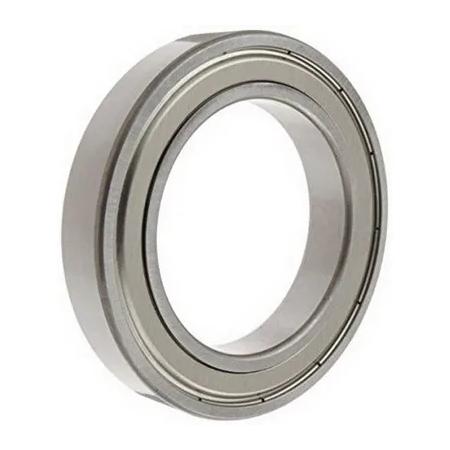

KBC Bearings 6209ZZK Single Row Deep Groove Radial Ball Bearing 45 mm Bore x 85 mm OD x 19 mm W Double Shield

Product Description

KBC Bearings 6209ZZK is designed for moderate to heavy radial loads and low to moderate thrust loads. This single row deep groove radial ball bearing features a bore diameter of forty-five millimeters and an outer diameter of eighty-five millimeters. The width of the bearing is nineteen millimeters. The bearing is suitable for both oil and grease lubrication, ensuring versatility in applications. The double shield design offers protection against contamination, making it ideal for various operational environments.

• Accepts moderate to heavy radial loads
• Compatible with grease lubrication
• Double shield for contamination protection

Product Highlights

This deep groove ball bearing is a reliable choice for mechanical applications requiring efficient load handling.

Product Information

Standard Information

• Brand: KBC Bearings
• Part #: 6209ZZK

Technical Specifications

• Bore Diameter: 45 mm
• Outside Diameter: 85 mm
• Width: 19 mm
• Static Load Capacity: 20300 N
• Dynamic Load Capacity: 32700 N
• Cage Material: Chrome Steel
• Lubrication Type: Grease
• Enclosure Type: Double Shield
• Number of Rows: 1
• Clearance: C3
• Speed Rating: 8000 rpm (Grease)
• Fillet Radius: 1.1 mm
• Net Weight: 407.00 g
