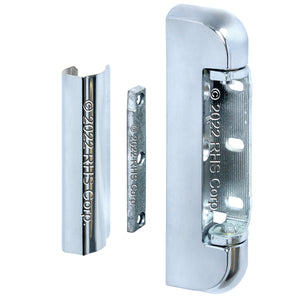

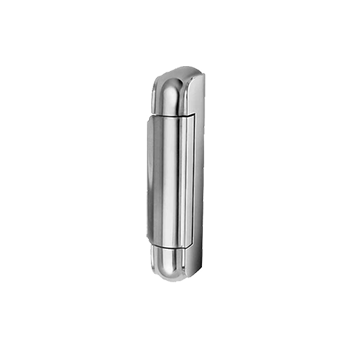

Kason 10220000012 Hinge Assy 1-3/8 (KAS10220000012)

Product Description

Kason 10220000012 is a 0220 series spring hinge assembly with a 1-3/8 inch offset designed for equipment door hinging applications. The assembly features a polished chrome finish, a fully round pivot pin, and adjustable spring tension to compensate for gasket compression. Construction uses a high-pressure die-cast zinc flange and adjustment plate, a chrome-plated brass cover, and a zinc-plated steel strap. The hinge is drilled and countersunk for No. 10 (5.0 mm) screws.

• 1-3/8 in offset spring hinge with adjustable spring tension and fully round pivot pin
• Construction: high-pressure die-cast zinc flange and adjustment plate; chrome-plated brass cover; zinc-plated steel strap
• Drilled and countersunk for No. 10 (5.0 mm) screws; 3/16 in (4.8 mm) adjustment range; reversible for right- or left-opening doors

Product Highlights

0220 series spring hinge assembly, 1-3/8 in offset; adjustable tension; die-cast zinc and brass construction; drilled for No. 10 screws; 3/16 in adjustment range.

Product Information

Standard Information

• Brand: KASON
• Manufacturer Part Number: 10220000012
• Country of Origin: United States
