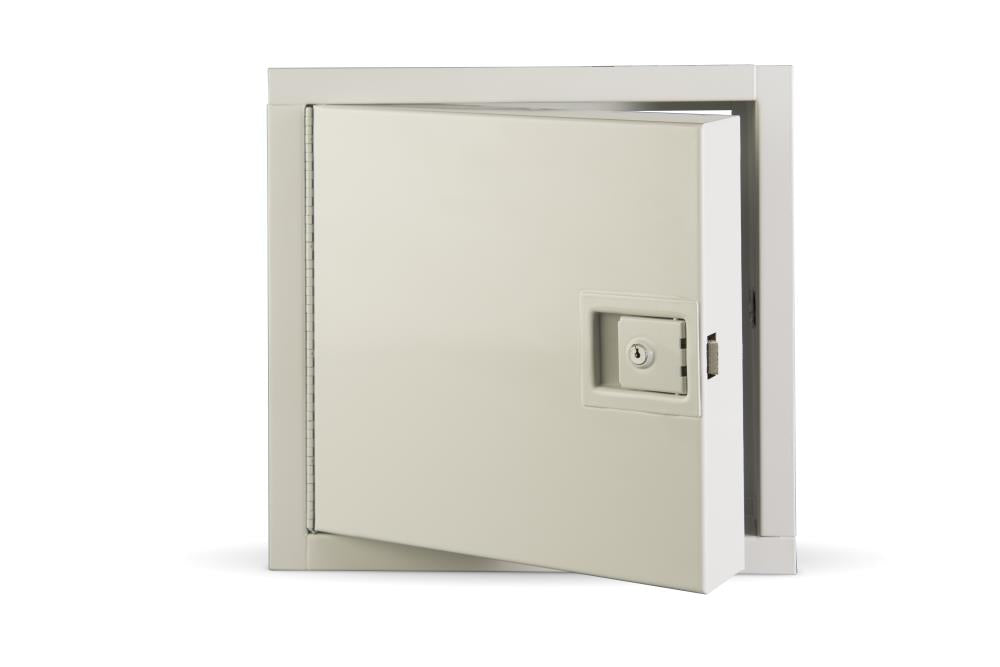

Karp KRPP3636PH 36 x 36 Fire Rated Access Door

Product Description

The Karp KRPP3636PH is a 36 x 36 inch fire-rated access door designed for safety and reliability. This door is rated by Underwriters Laboratories for one and a half hours B label in wall applications and is also suitable for two-hour fire-rated wall assemblies. In ceilings, it has a rating of three hours by Warnock Hersey.

• Constructed with a frame and trim made of 16 gauge steel.
• Features a 20 gauge steel door, designed as a welded pan type filled with two-inch thick fire-rated insulation.
• Self-latching design with an automatic closer and interior latch release, opens to a maximum angle of 175 degrees.

Product Highlights

This access door is ideal for use in hospitals, pharmaceutical facilities, research laboratories, and food processing plants.

Product Information

Standard Information

• Brand: Karp
• MPN: KRPP3636PH

Technical Specifications

• Material: Cold Rolled Steel
• Fire Rated: Yes
• Opening Width: 35.2 inches
• Overall Width: 38 inches
• Opening Length: 35.17 inches
• Overall Height: 2.63 inches
• Hinge Type: Continuous Piano
• Number Of Latches: 2
• Lockable: Yes
• Manufacturer Warranty: Limited 1-year
