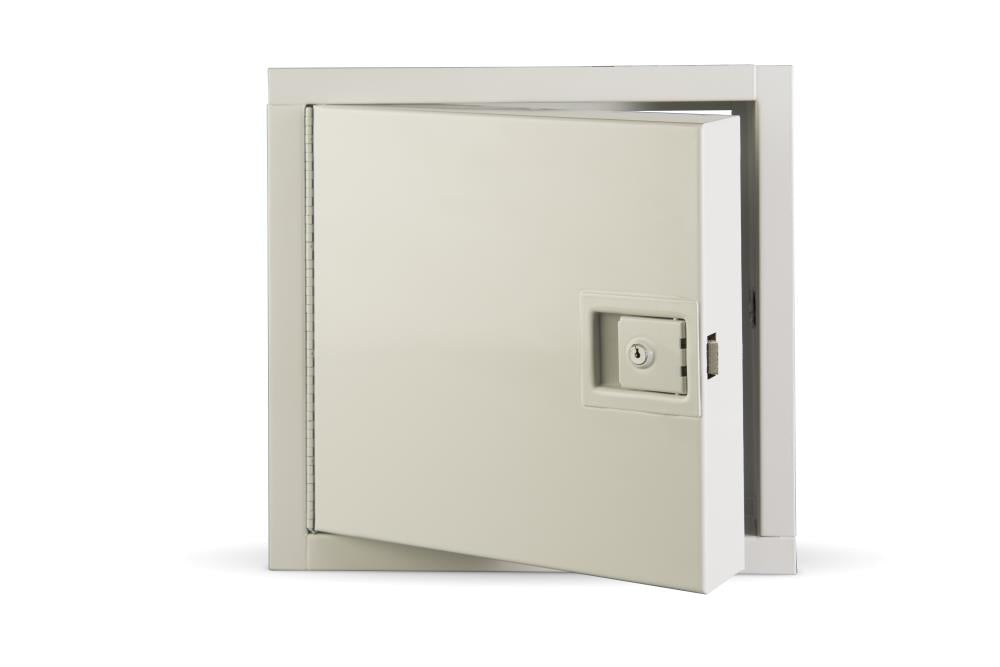

Karp KRPP3030PH Karp 30 x 30 Fire Rated Insulated Access Door

Product Description

The Karp KRPP3030PH is an insulated access door designed for fire-rated applications. It is suitable for installation in walls and ceilings that require fire resistance. This door meets the standards set by Underwriters Laboratories for a fire rating of one and a half hours for walls and three hours for ceilings. Constructed with a welded pan type and filled with two inches of fire-rated insulation, this access door is built to enhance safety in critical areas.

• Heavy-duty frame and trim made from sixteen-gauge steel.
• Self-latching mechanism with automatic closer; opens up to one hundred seventy-five degrees.
• Designed for installation in various applications including hospitals and pharmaceutical plants.

Product Highlights

Durable design caters to environments needing fire protection. The continuous piano hinge allows for smooth operation, and the keyed paddle latch enhances security.

Product Information

Standard Information

• Brand: Karp
• Manufacturer Part Number: KRPP3030PH

Technical Specifications

• Material: Cold Rolled Steel
• Fire Rated: Yes
• Door Gauge: 20
• Overall Width: 32 inches
• Overall Height: 2.63 inches
• Overall Length: 32 inches
• Opening Width: 29.2 inches
• Opening Length: 29.17 inches
• Rough Opening Width: 30-3/8 inches
• Rough Opening Height: 30-3/8 inches
• Number of Latches: 1
• Lockable: Yes
• Hinge Type: Continuous Piano
• Applications: Hospitals, Health Care, Pharmaceutical Plants, Research Laboratories, Food Processing Facilities
