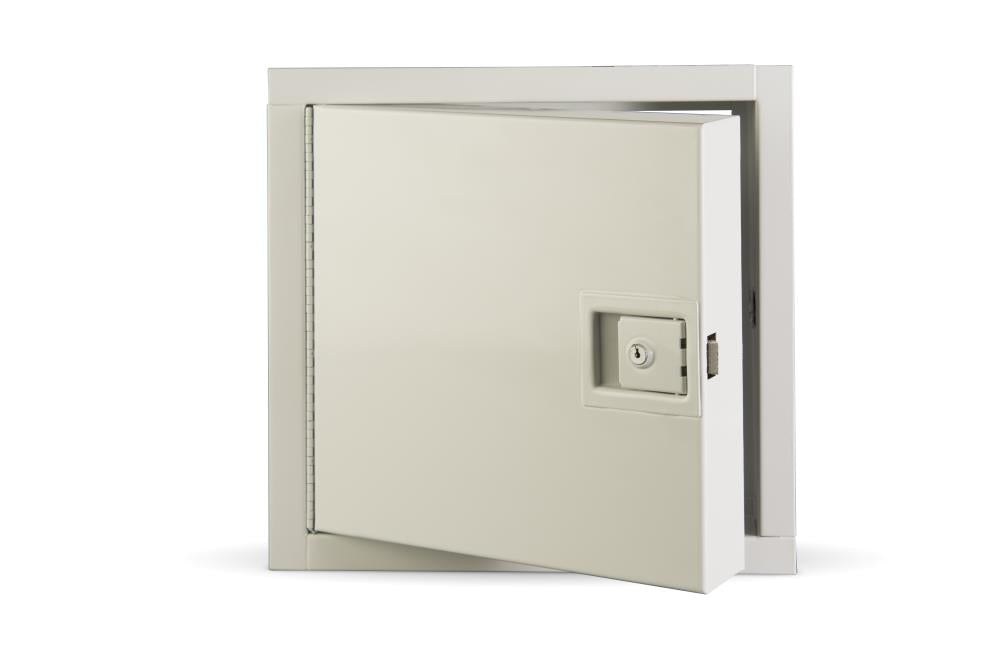

Karp KRPP2020PH Karp 20 X 20 Fire Rated Insulated Access Door

Product Description

The Karp KRPP2020PH is a fire rated insulated access door designed for various applications including hospitals and research facilities. This door features a steel frame and trim with integrated insulation to meet strict fire safety standards. The unit is designed to open to a maximum of one hundred seventy-five degrees. The automatic closer and self-latching mechanism ensure secure operation in critical areas.

• Rated for one and a half hours in wall assemblies and three hours in ceilings.
• Constructed with twenty gauge steel and filled with two inch thick fire-rated insulation.
• Equipped with a continuous piano hinge for reliable performance.

Product Highlights

This access door’s streamlined design integrates easily into building structures while providing essential fire safety.

Product Information

Standard Information

• Brand: Karp
• Part Number: 142FR2020

Technical Specifications

• Fire Rated: Yes
• Material: Cold Rolled Steel
• Overall Width: 22 inches
• Overall Height: 2.63 inches
• Opening Width: 19.2 inches
• Opening Length: 19.17 inches
• Nominal Product Depth: 0 inches
• Lockable: Yes
• Hinge Type: Continuous Piano
• Rough Opening Width: 20-3/8 inches
• Rough Opening Height: 20-3/8 inches
• Manufacturer Warranty: Limited 1-year
