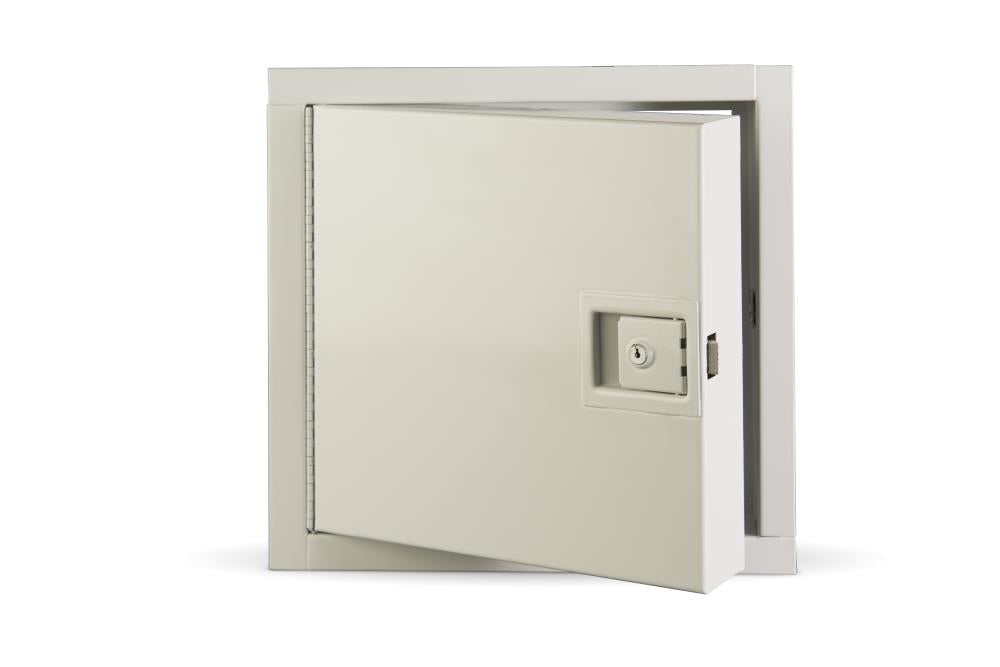

Karp KRPP1010PH 10 x 10 Fire Rated Access Door

Product Description

The Karp KRPP1010PH is a fire-rated access door that measures ten inches by ten inches. It is designed with a frame and trim made of sixteen gauge steel, providing strength and durability. The door is constructed from twenty gauge steel, filled with two inches of fire-rated insulation. This access door is suitable for applications in walls and ceilings that require a fire-rating. The Karp KRPP1010PH is rated for one and a half hours by Underwriters Laboratories and three hours when installed in ceilings as per Warnock Hersey standards.

• Self-latching mechanism with automatic closer
• Continuous piano hinge for smooth operation
• Mountable in wall and ceiling applications

Product Highlights

This access door is essential for use in areas requiring easy access while adhering to fire safety regulations.

Product Information

Standard Information

• Brand: Karp
• MPN: KRPP1010PH

Technical Specifications

• Material: Cold Rolled Steel
• Fire Rated: Yes
• Hinge Type: Continuous Piano
• Lockable: Yes
• Opening Width: 9.2 inches
• Overall Width: 12 inches
• Overall Height: 2.63 inches
• Overall Length: 12 inches
