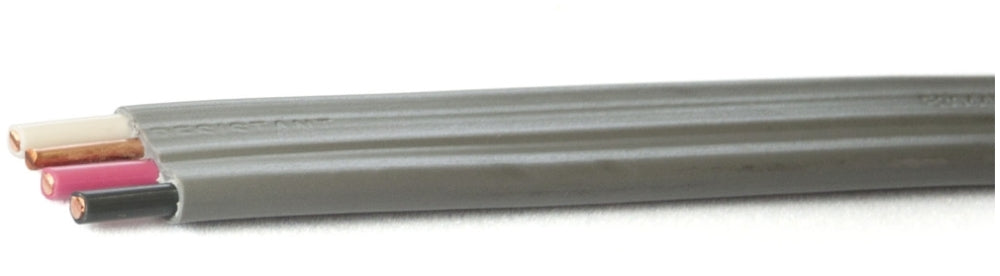

KALAS 460015.03.010 Well Access Underground Feeder Cable

Product Description

The KALAS 460015.03.010 is a well access underground feeder cable with multiple conductors. This cable is built for applications as defined in Articles 340 of the National Electrical Code (NEC). It is suitable for both wet and dry locations, and also for corrosive environments. The cable can be used in areas where temperatures do not exceed ninety degrees Celsius, with ampacity limited to sixty degrees Celsius as per NEC standards.

This underground feeder cable is designed for direct burial, underground use, and can be exposed to direct sunlight. The cable features a durable PVC jacket and has a voltage rating of 600 volts. It operates efficiently within a temperature range of minus twenty-five degrees Celsius to sixty degrees Celsius. This product meets both UL Standard 493 and UL Standard 83.

• Features ten conductors with ground.
• Approved for underground and direct burial applications.
• Compliant with UL Standards.

Product Highlights

The KALAS 460015.03.010 provides reliable and safe electrical connections in various environments.

Product Information

Standard Information

• Brand: KALAS
• Product Type: Well Access Underground Feeder Cable

Technical Specifications

• Voltage: 600 V
• Temperature Rating: -25 Degrees C to 60 Degrees C
• Conductor Design: Solid
• Jacket Material: PVC
• Number of Conductors: 10/2 with GND
• Nominal Outside Diameter: 0.230 x 0.460 inches
• Standards: UL Standard 493 and UL Standard 83
