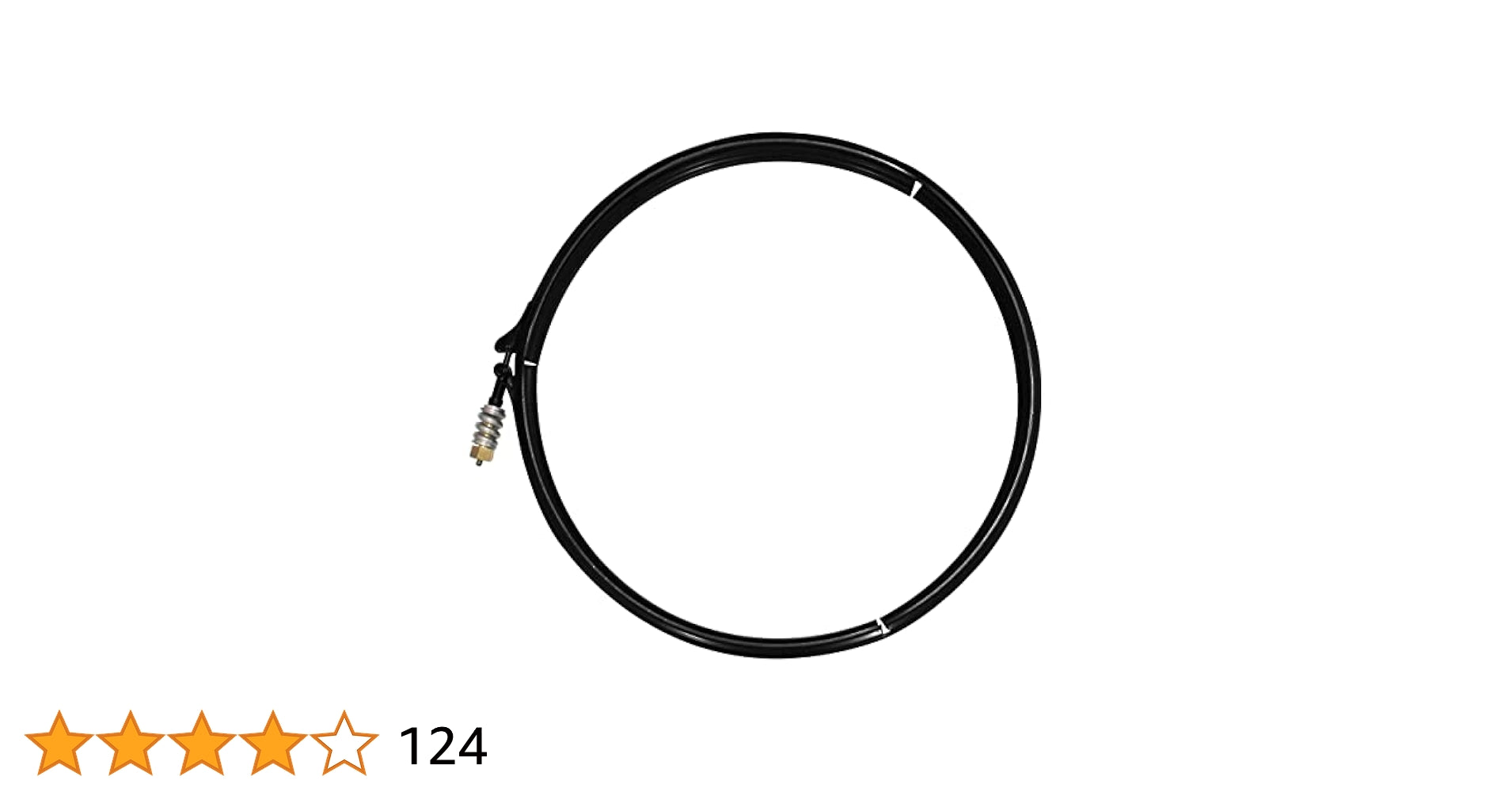

KALAS 440018.03.999 Pump Cable 8/3 (1000FT)

Product Description

The KALAS 440018.03.999 is a pump cable made for submersible use. It has a twisted design and includes a ground wire for safety. The conductors are made from annealed bare stranded copper with a specific stranding of nineteen strands at twenty-nine thousand five hundred inches. The solid ground wire measures one hundred point nineteen inches. The cable is covered with a clear PVC jacket, making it durable for various applications. This product is ideal for well and water systems, specifically designed for submersible wire setups.

• Twisted submersible pump cable
• Includes eight three gauge conductors with a number ten ground
• Available in one thousand feet spool

Product Highlights

This reliable cable supports safe and efficient operation in submersible environments.

Product Information

Standard Information

• Product Type: Twisted Submersible
• Gauge/Conductor: 8/3 with #10 Ground

Technical Specifications

• Spool/Coil Length: 1000FT
• Material: Annealed Bare Stranded Copper - 19/.0295IN with Solid .1019IN Ground
• Jacket Material: Clear PVC
• Insulation Thickness: 0.060IN
• Outside Diameter: 0.608IN
• Voltage: 600V
• Temperature: -40 to 75DEG C
• Standard: UL Listed, ROHS
