Kadant Johnson 24A79000 VB8-151-SS-T-S-E 1-1/2 inches IPM Stainless Vac Breaker

Product Description

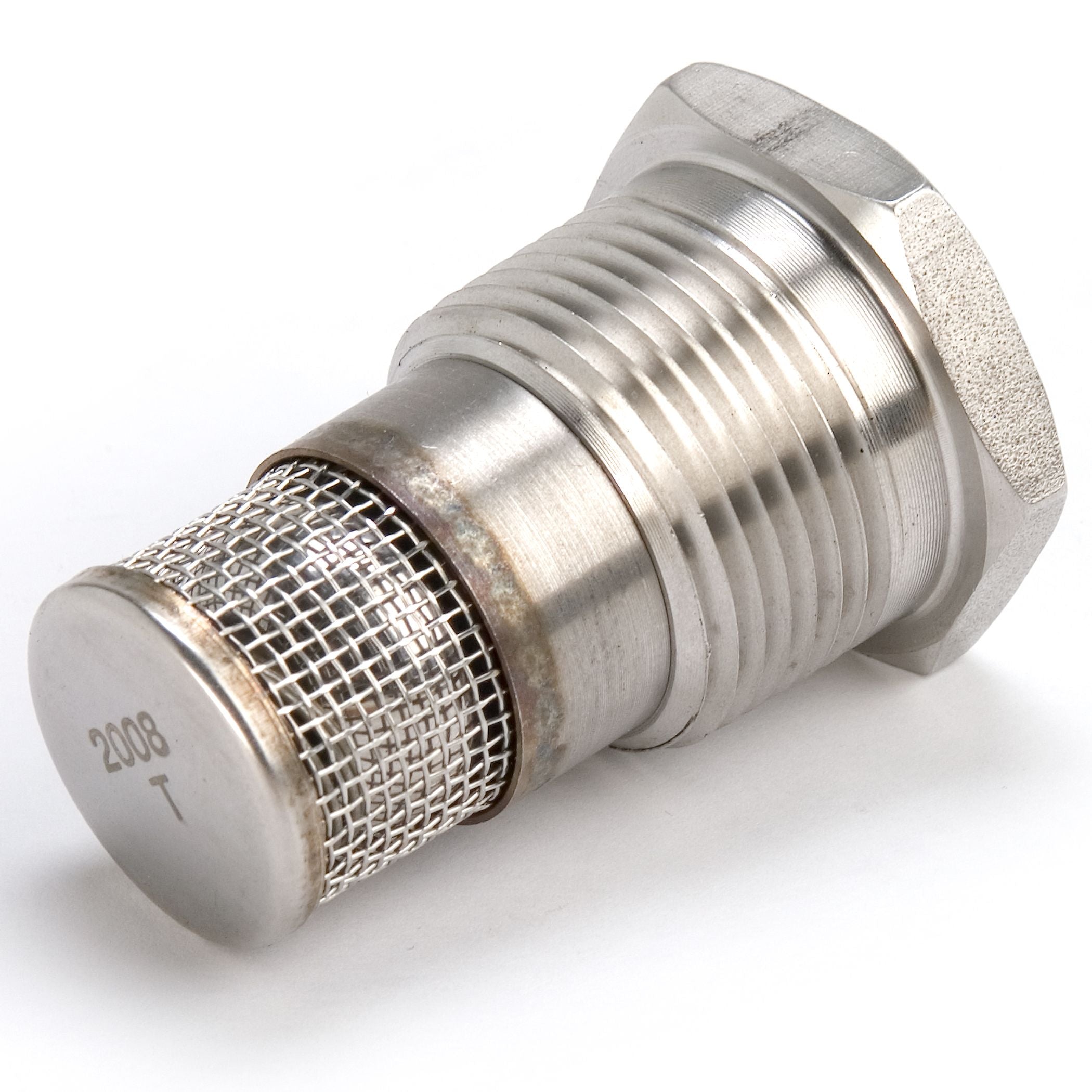

The Kadant Johnson 24A79000 VB8-151-SS-T-S-E is a 1-1/2" IPM stainless steel vacuum breaker. This vacuum breaker is rated to 300 psig and 365°F. It features a 1-1/4" threaded outlet and is designed to relieve unwanted vacuum in closed vessels or pipelines, preventing collapse or back flowing. Suitable for fluid handling applications.

• 1-1/2" IPM stainless steel vacuum breaker
• 1-1/4" threaded outlet
• Rated to 300 psig and 365°F

Product Highlights

Stainless steel vacuum breaker designed to relieve vacuum and prevent collapse in fluid handling systems.

Product Information

Standard Information

• Brand: KADANT JOHNSON
• Manufacturer Part Number: 24A79000

Technical Specifications

• Brand: Kadant Johnson
• MPN: 24A79000
• Model: VB8-151-SS-T
• Valve Size: 1-1/2"
• Valve Connection: IPM
• Piping Configuration: Straight
• Body Material: Stainless Steel
• Valve Application: Fluid Handling
• Max Pressure: 300 psi
• Connection Size: 1-1/2 inch
• Connection Type: Threaded
• Manufacturer: Kadant Johnson
• Pressure Temperature Rating: 300 psig, 365ºF
