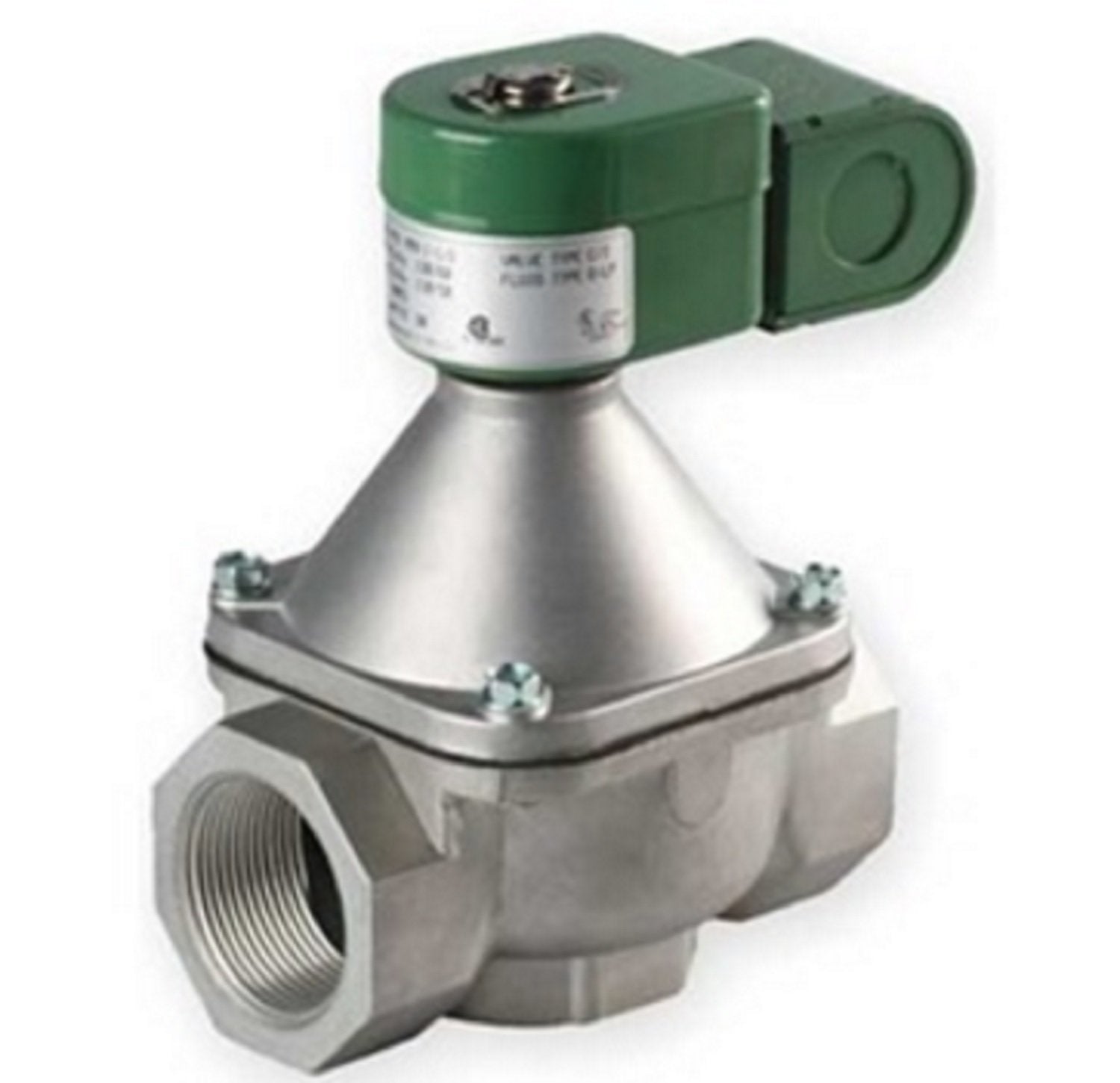

Asco K3A772U Aluminum Body Medium Pressure Direct Acting Fuel Gas Shutoff Valve 1-1/4 Pipe Size 2-Way Normally Closed

Product Description

The Asco K3A772U is an aluminum body medium pressure direct acting fuel gas shutoff valve. This unit operates at a pipe size of one and one-quarter inches and functions with a two-way normally closed design. It features nitrile butylene sealing and offers an orifice size of one point twenty-five inches with an eighteen Cv flow rate. This valve is suitable for control over gas applications.

• Medium pressure direct acting operation
• Compatible with fuel gas systems
• Designed for durability with aluminum construction

Product Highlights

This valve is engineered for reliability in HVAC systems and other industrial applications, providing efficient gas flow control.

Product Information

Standard Information

• Brand: Asco
• MPN: K3A772U

Technical Specifications

• Pipe Size: 1-1/4 inches
• Design: 2-Way Normally Closed
• Sealing Material: Nitrile Butylene
• Orifice Size: 1.25 inches
• Flow Rate: 18 Cv
• Voltage: 120V/60Hz, 110V/50Hz
• Maximum BTU: 1,028,000
• Maximum Pressure: 1.5 Psi
