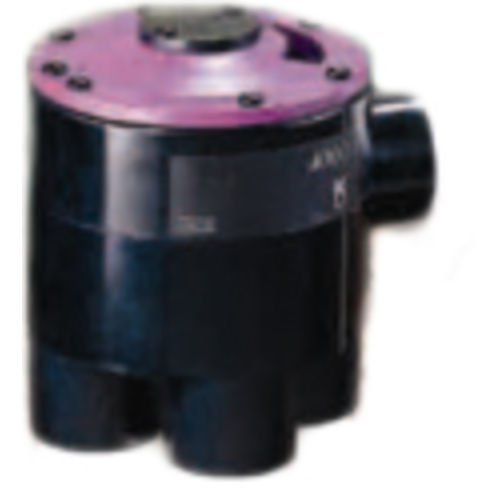

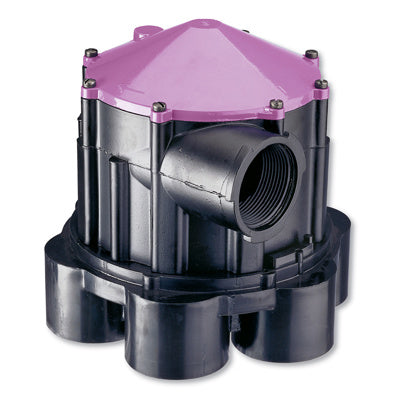

K-Rain 6404-RCW 6000 indexing valve 4 outlet 4 zone operation

Product Description

The K-RAIN 6404-RCW 6000 series indexing valve offers exceptional reliability and durability, even under dirty water conditions. With a metal die-cast body, the 6000 valves are capable of high-pressure applications and are recommended for pump-fed or high-flow city water systems. This model is the 4 outlet, 4 Zone for reclaimed water use.

• Metal Die-Cast Body ">– Durable, long lasting and capable of high-pressure applications
• Available in 4 and 6 Outlet Models ">– Can quickly and easily change from two to six watering zones
• Simplicity of Design ">– Valves are easily maintained and serviced for long product life

Product Highlights

Ideal for wastewater and effluent water applications, the valve requires 15 GPM (57 LPM) to operate and works at pressures from 25 to 150 PSI (1,7 to 10,3 bar).

Product Information

Standard Information

• Brand: K-RAIN
• Manufacturer Part Number: 6404-RCW
• Country of Origin: United States

Technical Specifications

• Four Outlet: 1 1/2" Threaded Inlet x 1 1/2" Slip Outlets
• Cam for: 4 Zone Operation Only
• Purple Cap: for Reclaimed Water Use
• Flow Range: 15 - 150 GPM (57-568 LPM)
• Pressure Rating: 25 - 150 PSI (1.7 to 10.3 bar)
• Inlet: Threaded NPT Connection
• Outlets: Slip and Glue Connections
• Pressure Loss: FLOW (GPM) 20 40 60 80 100 PSI LOSS 2.5 3.5 5.0 7.5 10.0
• This Model: has a Cam for 4 Zone Operation Only
• Manufacturer: K-RAIN
• Item model number: 6404-RCW
• Brand: K-Rain
• Model: 6404-RCW
• Country of Origin: United States
