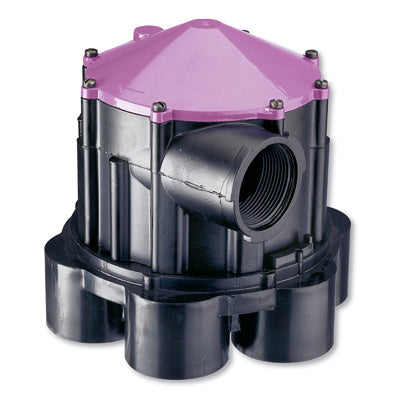

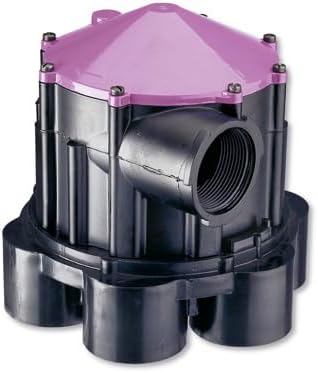

K-Rain 6403-RCW 6000 Valve 4 Outlet 3 Zone Rcw

Product Description

The K-RAIN 6403-RCW 6000 Series indexing valves are rugged and reliable, even under dirty water conditions. With a metal die-cast body, the 6000 valves are capable of high-pressure applications and are recommended for pump-fed or high-flow city water systems. This model is the 4 outlet, 3 Zone for reclaimed water use.

• Metal Die-Cast Body – Durable, long lasting and capable of high-pressure applications
• Available in 4 and 6 Outlet Models – Can quickly and easily change from two to six watering zones
• Simplicity of Design – Valves are easily maintained and serviced for long product life

Product Highlights

Ideal for pump-fed systems or high-flow city water systems, the valve operates at minimum 15 GPM at Pressures of 25–150 PSI. It also has a built-in atmospheric vacuum breaker.

Product Information

Standard Information

• Brand: K-RAIN
• Manufacturer Part Number: 6403-RCW

Technical Specifications

• Four Outlet: 1 1/2" Threaded Inlet x 1 1/2" Slip Outlets
• Cam: 3 Zone Operation Only
• Purple Cap: Reclaimed Water Use
• Flow Range: 15 - 150 GPM (57-568 LPM)
• Pressure Rating: 25 - 150 PSI (1.7 to 10.3 bar)
• Inlet: Threaded NPT Connection
• Outlets: Slip and Glue Connections
• Pressure Loss: FLOW (GPM) 20 40 60 80 100 PSI LOSS 2.5 3.5 5.0 7.5 10.0
• Material: Metal
• Brand: K-Rain
• Exterior Finish: Metal
• Inlet Connection Size: 1 Inches
• Inlet Connection Type: Flange
• Outlet Connection Type: Flange
• Maximum Operating Pressure: 150 Pound per Square Inch
• Number of Ports: 4
• Valve Type: indexing valve
