K-Flex Usa 6RXLO048068 Insul-Lock Ds Pipe Insulation 6 ft.

Product Description

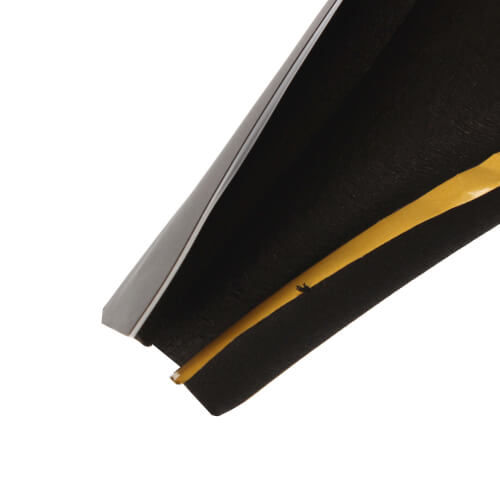

The K-FLEX USA 6RXLO048068 Insul-Lock DS Pipe Insulation is a pipe insulation made from NBR/PVC. It is pre-slit and pre-glued with an overflap. Designed to retard heat flow and prevent condensation when properly installed, this insulation is suitable for applications ranging from -70 Degrees F to 220 Degrees F.

• Pre-Slit/Pre-Glued with Overflap
• Closed cell construction
• Flexible elastomeric foam material

Product Highlights

This pipe insulation features pressure-sensitive adhesive on the seam and flexible PVC overlap tape with acrylic adhesive for added security. It also contains an antimicrobial agent that resists mold, fungi, and bacteria.

Product Information

Standard Information

• Brand: K-FLEX USA
• Manufacturer Part Number: 6RXLO048068
• Country of Origin: Mexico

Technical Specifications

• Insulation Body Material: NBR/PVC
• Type: Pipe Insulation Pre-Slit/Pre-Glued with Overflap
• Wall Thickness - Insulation: 1/2 in
• Insulation Length: 6 ft
• Fits Pipe Size - Pipe Insulation: 1 in
• Fits Tube Size: 3/4 in
• Insulation Nominal I.D.: 3/4 in
• Insulation Temp. Range: -70 Degrees F to 220 Degrees F
• Insulation Approx. R Value: 3.1
• Insulation Approx. K Value: 0.23
• R-Value: 3.1
• Operating Temp Range: -70° to 220°F
• Density: 3-6 PCF
• Water Absorption: 0% by volume
• Chemical/Solvent Resistance: Good
• Mildew Resistance/Air Erosion: Pass
• Ozone Resistance: Pass
• Brand: K-FLEX USA
• Insulation Type: Elastomeric
• Item: Pipe Insulation
• Mfr. Part Number: 6RXLO048068
• Nominal Inside Diameter: 3/4 in.
• Package Quantity: 1
• Temperature Range (Deg. F): -70 to 220 deg. F
• Approx. K Value: 0.23
• Approx. R Value: 3.1
• For Tube I.D.: 5/8 in
• MPN: 6RXLO048068
• GTIN: 0362720991199
• UPC: 0362720991199
• eBay Product ID (ePID): 1451951604
• Item Thickness: 2 in
• Suitable For: Pipe
• Number in Pack: 1
• Features: Unfaced
• Material: NBR/PVC Based Elastomeric
• For Iron Pipe Size: 1"
• Overall Length: 6 ft
• For Copper Tube Size: 3/4 in
• Inside Diameter: 3/4 in
• For Tube O.D.: 3/4"
• Pipe Insulation Item: Pipe Insulation
• Temp. Range: -70 Degrees to 220 Degrees F
• Tube Style: Slit
• K Value: 0.23 BTU
• Smoke Developed Index: 119
• Flexibility: Flexible
• Flame Spread Index: 94
• Installation Style: Slit with Adhesive and Flap
• For Piping System: Chilled Water, Hot Water, Liquid, Refrigeration, Solar Thermal
• Outdoor Weather Protection: Acrylic Adhesive
• Plenum Rating: Plenum Rated
• Maximum Operating Temperature: 220 Degrees F
• Form: Tube
• Facing Material: Unfaced
• Minimum Operating Temperature: -70 Degrees F
