K-Flex Usa 6RX100448 4-1/2 inches x 6 ft. Elastomeric Pipe Insulation 1 inches Wall

Product Description

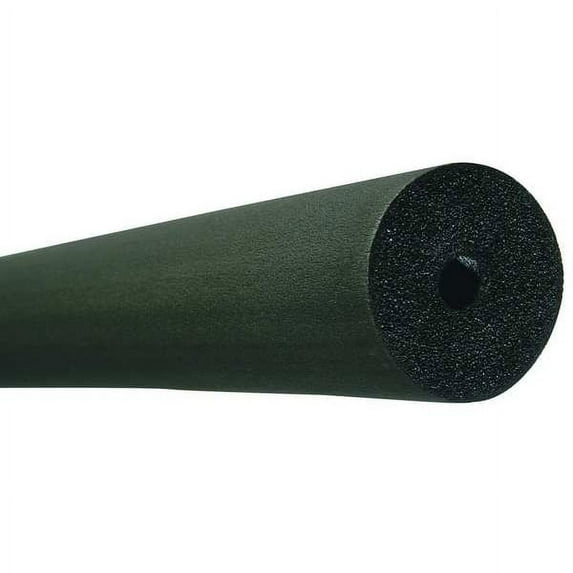

The K-FLEX USA 6RX100448 pipe insulation is constructed from NBR/PVC. This unslit pipe insulation has a 1 inch wall thickness, 6 ft length, and fits a 4 inch pipe size with a 4-1/2 inch nominal I.D. It is suitable for use in temperatures ranging from -297 to 220 Degrees F.

• Made from NBR/PVC
• Insulation temperature range of -297 Degrees to 220 Degrees F
• Approximate R value of 5.60

Product Highlights

The K-FLEX USA pipe insulation is ideal for insulating pipes. Features include fiber free and non-dusting.

Product Information

Standard Information

• Brand: K-FLEX USA
• Manufacturer Part Number: 6RX100448
• Country of Origin: USA

Technical Specifications

• Insulation Body Material: NBR/PVC
• Type: Pipe Insulation Unslit
• Wall Thickness - Insulation: 1 In.
• Insulation Length: 6 ft.
• Fits Pipe Size - Pipe Insulation: 4 In.
• Insulation Nominal I.D.: 4-1/2 In.
• Insulation Temp. Range: -297 Degrees F to 220 Degrees F
• Insulation Approx. R Value: 5.60
• OEM: K-Flex USA
• Green Certification or Other Recognition: GREENGUARD(R) Certified
• Green Environmental Attribute: Product Contributes To Reducing Energy Consumption
• Pipe Insulation Item: Pipe Insulation
• Standards: ASTM C 534 Type 1 Tubing; ASTM D 1056-00-2C1; New York City MEA 186-86-M Vol. IV; USDA Requirements, MIL-P-15280 For T (Tubing), Meets requirements of ASTM C 411 (Test Method for Hot Surface performance of High Temperature Thermal Insulation); Meets
• Item: Pipe Insulation
• Body Material: NBR, PVC
• Features: Fiber Free, Non Dusting
• Fits Pipe Size: 4"
• Flame Spread Index: 62
• Flexibility: Flexible
• Foam Cell Type: Closed
• For Environment: Submersible
• Form: Tube
• Insulation Material: Buna N Rubber, PVC
• Insulation Max. Thickness: 1"
• Insulation R Value: 5.6
• Maximum Operating Temperature: 220°F
• Minimum Operating Temperature: -297°F
• Outside Diameter: 6 1/2"
• Overall Length: 6 ft.
• Plenum Rating: Plenum Rated
• Resistance Properties: Moisture Resistant, Mold/Mildew Resistant
• Smoke Developed Index: 87
• Thickness: 1"
• Tube Style: Unslit
• Wall Thickness: 1"
• Insulation thickness: 1 in
• Insulation type: Pipe Insulation
• Material: NBR/PVC Based Elastomeric
• Inside Diameter: 4 1/2"
