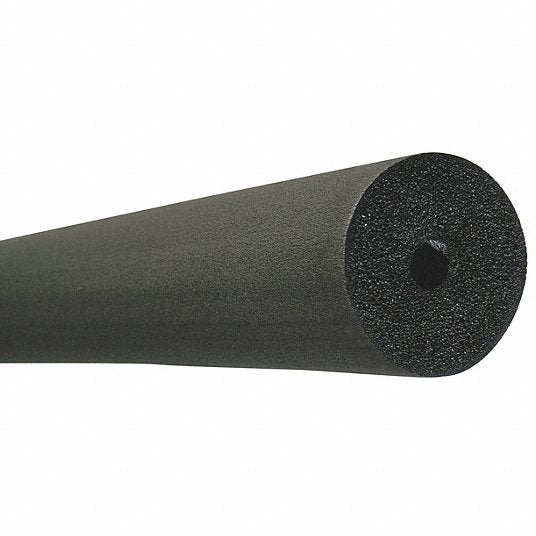

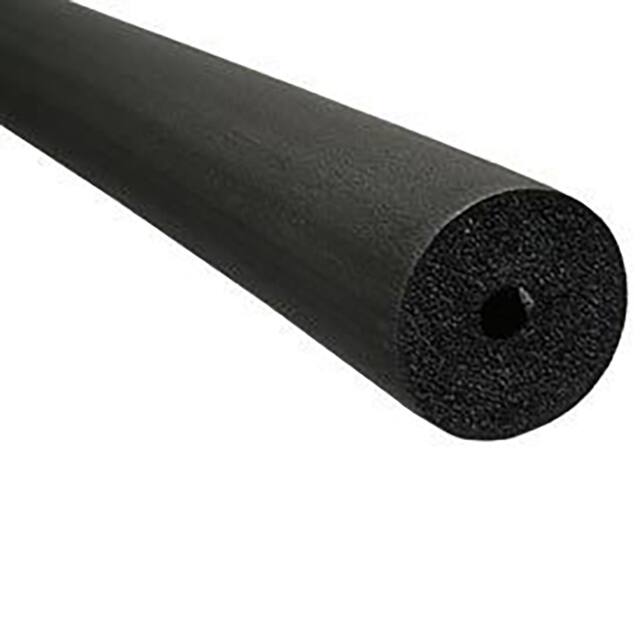

K-Flex Usa 6RX100358 Insul-Tube 6 feetL, 1 inches Wall Thickness, 3-5/8 inches Nom. I.D - Pkg Qty 5

Product Description

The K-FLEX USA 6RX100358 Insul-Tube® retards heat gain and prevents condensation or frost formation on refrigerant lines, cold water plumbing, and chilled water systems. It also retards heat flow for hot water plumbing, liquid heating, dual temperature piping, and many solar systems. This tubular insulation is non-porous, non-fibrous and resists mold growth. It is made from a UV resistant elastomeric blend.

• Used to retard heat gain
• Prevents condensation or frost formation
• Resists mold growth

Product Highlights

The Insul-Tube® is designed for the HVAC and Refrigeration industry. It is suitable for moderate UV exposure, and for severe UV exposure, a protective coating should be used.

Product Information

Standard Information

• Brand: K-FLEX USA
• Manufacturer Part Number: 6RX100358
• Country of Origin: USA

Technical Specifications

• Brand: K-Flex USA
• Manufacturers Part Number: 6RX100358
• Type: Tubular Insulation
• Length: 6 ft
• Density: 3-6 PCF lbs/ft³
• Ozone Resistance: Pass
• Package Quantity: 5
• Water Absorption: <0.20 by Volume %
• Wall Thickness: 1 in
• Chemical/Solvent Resistance: Good
• Operating Temperature Range: -297°F - 220°F
• Nominal Inside Diameter: 3-5/8 in
• Mildew Resistance/Air Erosion: Pass
• Thermal Conductivity 75°F Mean: .25 BTU-in/hr-ft²-°F °F
• Thermal Conductivity 90°F Mean: .27 BTU-in/hr-ft²-°F °F
• Water Vapor Permeability Dry Cup: <0.06
• Flame Spread Up to 1/2" Thickness: Not Greater Than 25
• Smoke Developed Up to 1/2" Thickness: Not Greater Than 50
• Form: Tube
• Insulation Material: Buna-N Rubber/PVC
• Installation Style: Unslit
• For Copper Tube Size: 3-5/8 in
• Inside Diameter: 3-5/8 in
• Outside Diameter: 5-5/8 in
• Thickness: 1 in
• Insulation R-Value: 5.5
• Minimum Operating Temperature: -297 °F
• Maximum Operating Temperature: 220 °F
• Foam Cell Type: Closed
• Flexibility: Flexible
• Features: Fiber-Free; Non-Dusting
• For Environment: Submersible
• Resistance Properties: Moisture-Resistant; Mold/Mildew-Resistant
• Plenum Rating: Plenum Rated
• Standards: ASTM C411; ASTM C534 Type 1; ASTM D1056-00-2C1; ASTM E84; CAN/ULC S-102-M88; FMRC 2006; MIL-P-15280; New York City MEA 186-86-M Vol. IV; NFPA 255; NFPA 90A Sect 2.3.3; NFPA No 101 Class A; UL 181 11.0/16.0; UL 723; UL 94-5V; USDA
• Mfr: K-Flex USA
• Package: Box
• Product Status: Active
• Series: -
