Product Description

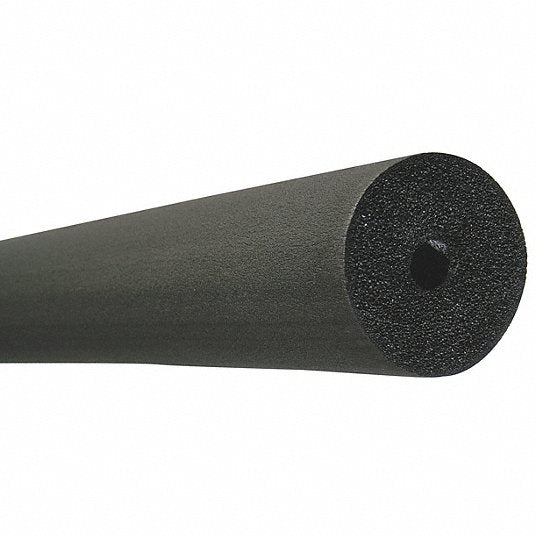

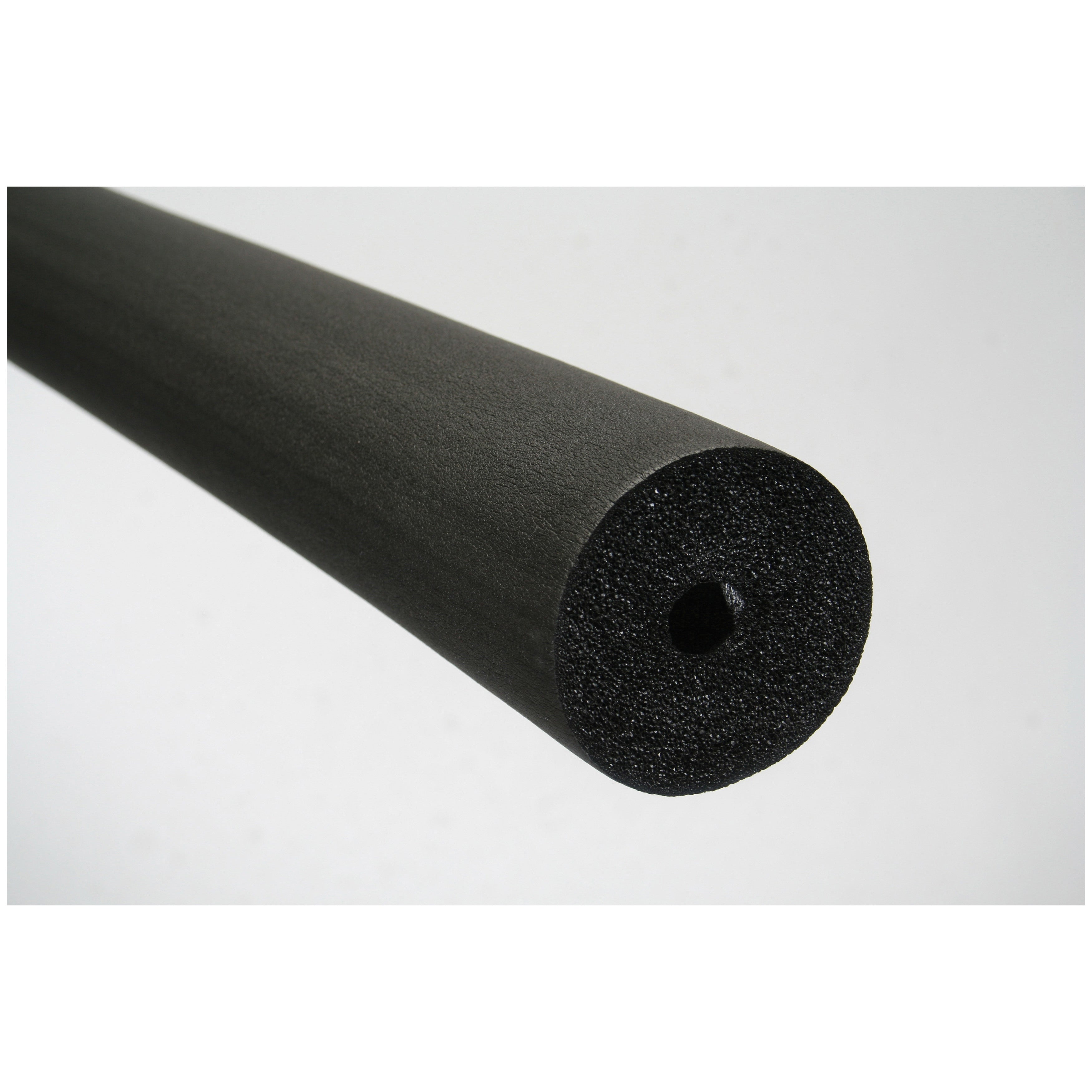

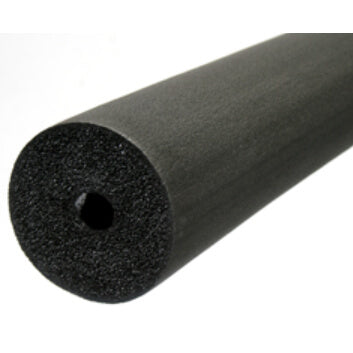

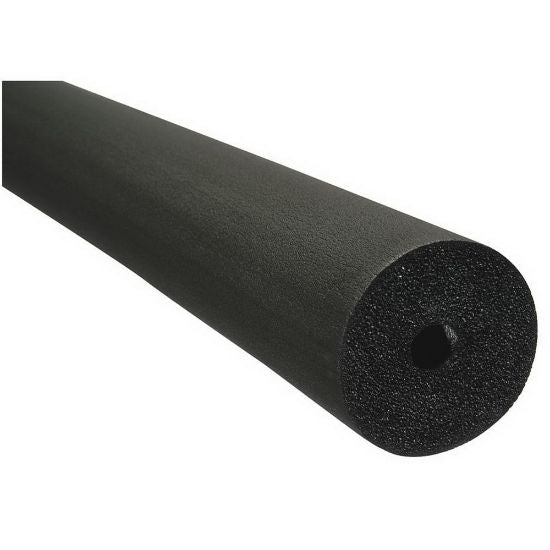

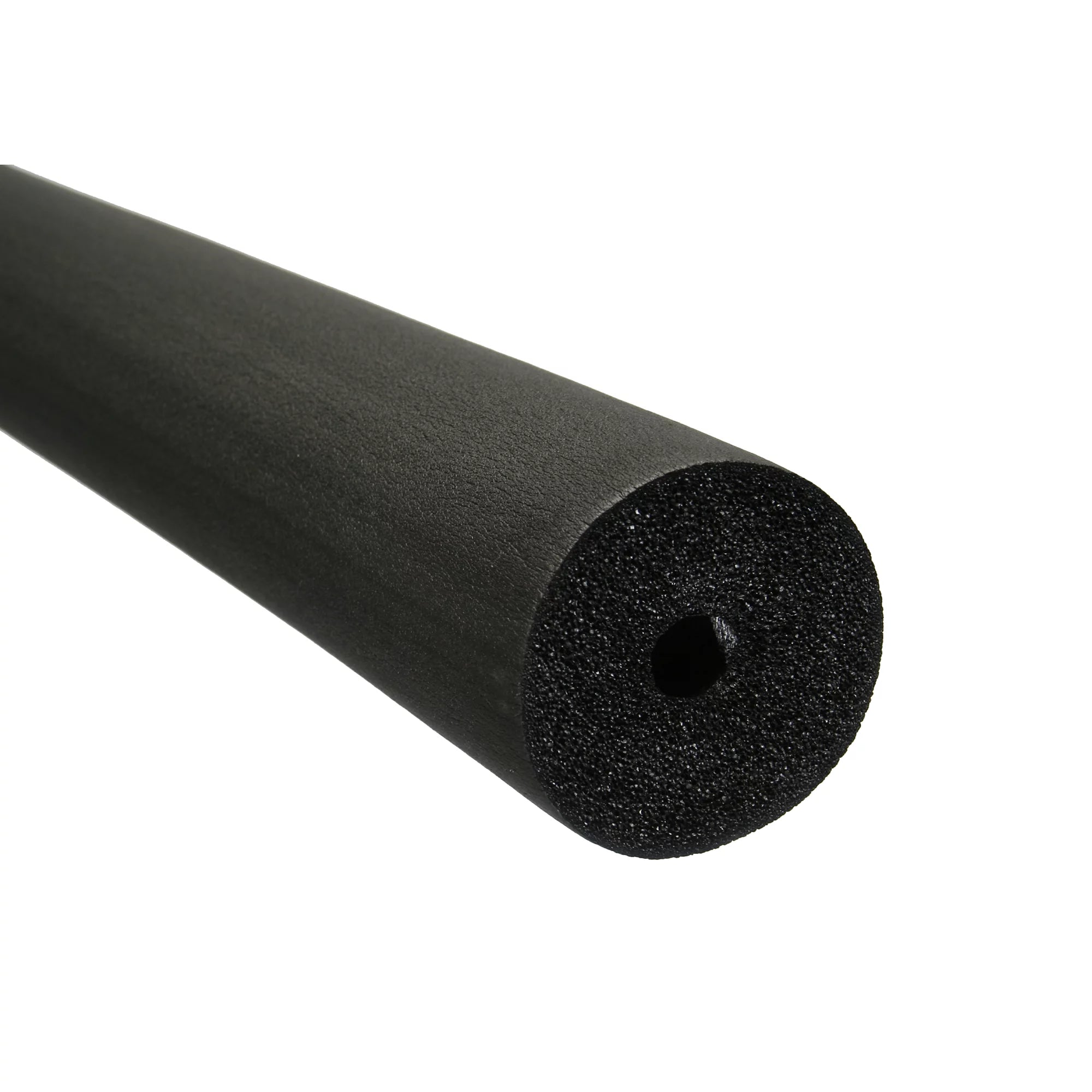

The K-FLEX 6RX068068 Insul-Tube pipe insulation is recognized for its superior characteristics, including cold weather flexibility and a durable skin surface. This closed-cell elastomeric tube conserves energy and prevents condensation on piping applications. It is non-porous, non-fibrous, and resists mold, fungal, and bacterial growth. It is available in 6' lengths.
- Provides moisture vapor resistance and condensation control.
- Temperature range: -297°F to 220°F (-182°C to 104°C).
- Greenguard certified as a low VOC material.
Product Highlights
Ideal for HVAC/R and plumbing applications, K-Flex Insul-Tube ensures lasting performance with exacting manufacturing tolerances.
Product Information
Standard Information
-
Brand: K-FLEX
-
Manufacturer Part Number: 6RX068068
-
Country of Origin: USA
Technical Specifications
-
Composition: Closed Cell Flexible Elastomeric Foam Insulation
-
Insulation Nominal I.D.: 3/4"
-
Length: 72 in
-
R-Value: R5.4
-
Temperature Range: -297°F to 220°F (-182.78°C to 104.44°C)
-
Wall Thickness: 3/4"
-
UV Resistant: Yes
-
Flame/Smoke Rating: ASTM E84 - 25/50
-
Brand: K-Flex
-
Width: 2.25
-
Height: 2.25
-
Prop 65: No
-
Type: Closed Cell Flexible
-
Material: NBR/PVC
-
Nominal Size: 3/4 in
-
Inside Diameter: 3/4 in
-
Domestic/Import: Domestic
-
Thermal Conductivity: 0.258 Btu-in/hr-sq-ft-deg F
-
Outside Diameter: 2-1/4 in
-
Connection Type: CTS
-
Form: Tube
-
Insulation Material: Buna-N Rubber/PVC
-
Installation Style: Unslit
-
For Copper Tube Size: 3/4 in
-
Overall Length: 6 ft
-
Thickness: 3/4 in
-
Insulation R-Value: 5
-
Minimum Operating Temperature: -297 °F
-
Maximum Operating Temperature: 220 °F
-
Foam Cell Type: Closed
-
Flexibility: Flexible
-
Features: Fiber-Free; Non-Dusting
-
For Environment: Submersible
-
Resistance Properties: Moisture-Resistant; Mold/Mildew-Resistant
-
Plenum Rating: Plenum Rated
-
Flame Spread Index: 36
-
Smoke Developed Index: 61
-
Standards: ASTM C411; ASTM C534 Type 1; ASTM D1056-00-2C1; ASTM E84; CAN/ULC S-102-M88; FMRC 2006; MIL-P-15280; New York City MEA 186-86-M Vol. IV; NFPA 255; NFPA 90A Sect 2.3.3; NFPA No 101 Class A; UL 181 11.0/16.0; UL 723; UL 94-5V; USDA
-
UNSPSC: 30141505
-
Colour/Finish Name: Black
-
Diameter - Inside 1: 3/4 in.
-
Plastic: Rubber
-
Specifications - ASTM: ASTM C-1304;ASTM C-1710;ASTM C-177;ASTM C-209;ASTM C-411;ASTM C-534 Type 1 Grade 1;ASTM D-1056-00-2B1;ASTM D-1171;ASTM D-1667;ASTM E-84;ASTM E-90;ASTM E-96
-
Specifications - UL Listed: Yes
-
Style Name: Insul-Tube
-
Application: CTS Pipe;Chilled Water;Cold Water Plumbing;Copper Tubing;IPS Pipe and Industrial Process Lines
-
Product Type: Pipe Insulation
-
Diameter: 3/4 in.
-
Colour/Finish Category: Blacks
-
Size: 3/4 in. x 3/4 in.
-
Insulation Type: Coil
-
Tier: Insul-Tube
-
Country of Origin: USA
