K-flex 6rcu048068dp Insul-tube Coil 3/4 in 1/2 in Wall 1000 Ft

Product Description

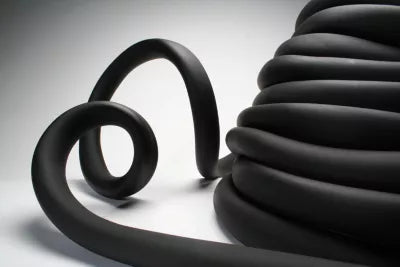

The K-FLEX 6rcu048068dp is a closed-cell elastomeric pipe insulation coil designed to limit heat gain and condensation on refrigerant and chilled-water lines. The coil format delivers 1,000 feet of continuous material, reducing splice points and speeding up installation on long runs. The tube has a 3/4-inch inner diameter and a 1/2-inch wall thickness. The no-talc finish allows adhesive to bond directly to the surface without surface prep, and the printed markings provide identification for inspection and code compliance documentation. HVAC and refrigeration technicians are the primary installers of this product.

This insulation coil is suited for residential and light commercial HVAC applications where suction lines, chilled-water piping, or other low-temperature copper tubing requires thermal and condensation control. The 1,000-foot coil format is practical for new construction and large retrofit projects where multiple runs of the same pipe size are involved. The no-talc surface and printed exterior are common requirements on projects where contractors need clean adhesive bonds and documented material identification in the field.

Key Features

• 3/4-inch inner diameter fits standard copper tubing used in refrigerant and chilled-water systems
• 1/2-inch wall thickness provides thermal resistance and condensation control
• 1,000-foot continuous coil minimizes splice points on long piping runs
• No-talc exterior surface accepts adhesive bonding without additional surface preparation
• Printed markings support material identification for inspection and project documentation

Compatibility

Designed as an OEM-style elastomeric insulation product for use on copper or other smooth-walled tubing in residential and commercial HVAC and refrigeration piping applications where a 3/4-inch inner diameter and 1/2-inch wall are specified.

Installation Notes

Licensed HVAC technicians and pipefitters typically install closed-cell elastomeric tube insulation. Shut down and de-energize the system before working on refrigerant or chilled-water lines. Slide the insulation over the pipe before connections are made where possible to avoid splitting; if splitting is required, use a compatible closed-cell elastomeric contact adhesive on all seams and butt joints. Local mechanical codes and ASHRAE 90.1 energy standards may specify minimum insulation thickness requirements for the application.

Technical Specifications

• Inner Diameter: 3/4 inches
• Wall Thickness: 1/2 inches
• Length: 1,000 feet
• Surface Finish: No Talc
• Marking: With Print
• Unit of Measure: Each

Standard Information

• Brand: K-FLEX
• Manufacturer Part Number: 6rcu048068dp
