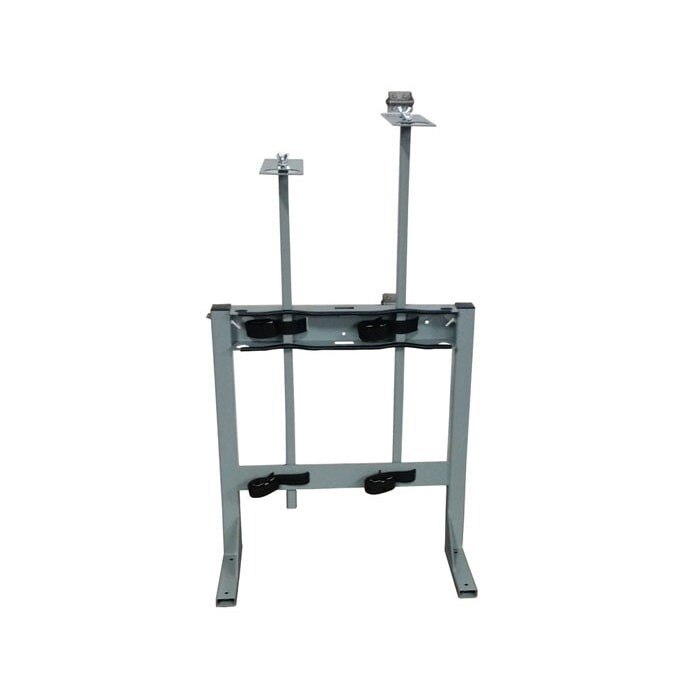

Justrite 35292 Gas Cylinder Mobile Stand 2 Cylinder

Product Description

The JUSTRITE 35292 is a mobile gas cylinder stand designed to safely transport and secure upright compressed gas cylinders in industrial, laboratory, and facility environments. Built from 11-gauge steel with fully welded construction, the stand holds two cylinders ranging from 4 to 10 inches in diameter. A powder-coat finish provides chemical resistance and long-term durability. The locking post extends up to 66 inches in height to accommodate cylinders of varying sizes. Two heavy-duty polypropylene support straps rated at 1,138 pounds each cinch cylinders firmly to prevent tipping. Licensed tradespeople and safety personnel responsible for compressed gas handling typically source and install this stand.

The 35292 is suited for over-the-road cylinder transportation and fixed facility installations where OSHA, NFPA 55, and CGA compliance is required. Pre-drilled base holes allow floor mounting with application-specific fasteners, which are not included. The stand is appropriate for industrial plants, welding shops, laboratories, and any environment where compressed gas cylinders must be secured against tipping or movement. Optional chains for secondary support can be added by ordering model 35366 separately.

Key Features

• Fully welded 11-gauge steel construction for structural integrity and long service life
• Locking collar and post system extends up to 66 inches for vise-like cylinder immobilization
• Two 1.5 x 54 inch heavy-duty polypropylene straps with steel cinch buckles, each rated at 1,138 pounds
• Powder-coat finish provides chemical resistance
• Exclusive bumper guard edging with steel-reinforced vinyl protects cylinders from impact damage
• Openings for retrofit secondary support chains included; compatible with optional model 35366 chains

Compatibility

Designed to accommodate gas cylinders ranging from 4 to 10 inches in diameter; suitable for standard compressed gas cylinder sizes used in industrial, welding, and laboratory applications.

Installation Notes

Installation should be performed by qualified safety or facilities personnel familiar with compressed gas handling requirements. Shut off all cylinder valves and cap cylinders before moving or repositioning the stand. Base mounting requires floor fasteners specific to the mounting surface, which are not included. Reference OSHA 29 CFR 1910.101 and NFPA 55 for compressed gas cylinder storage and handling requirements.

Technical Specifications

• Cylinder Capacity: 2
• Compatible Cylinder Diameter: 4 to 10 inches
• Locking Post Height (Extended): 66 inches
• Strap Dimensions: 1.5 x 54 inches
• Strap Load Rating: 1,138 pounds each
• Gauge: 11-gauge
• Material: Steel
• Finish: Powder coat
• Color: Gray
• Length: 40 inches
• Width: 14 inches
• Height: 36 inches
• Weight: 47 pounds
• Compliance: OSHA, NFPA 1, NFPA 55, CGA
• UOM: Each

Standard Information

• Brand: JUSTRITE
• Manufacturer Part Number: 35292
