Justrite 35258 Gas Cylinder Support Bracket Bench Mount

Product Description

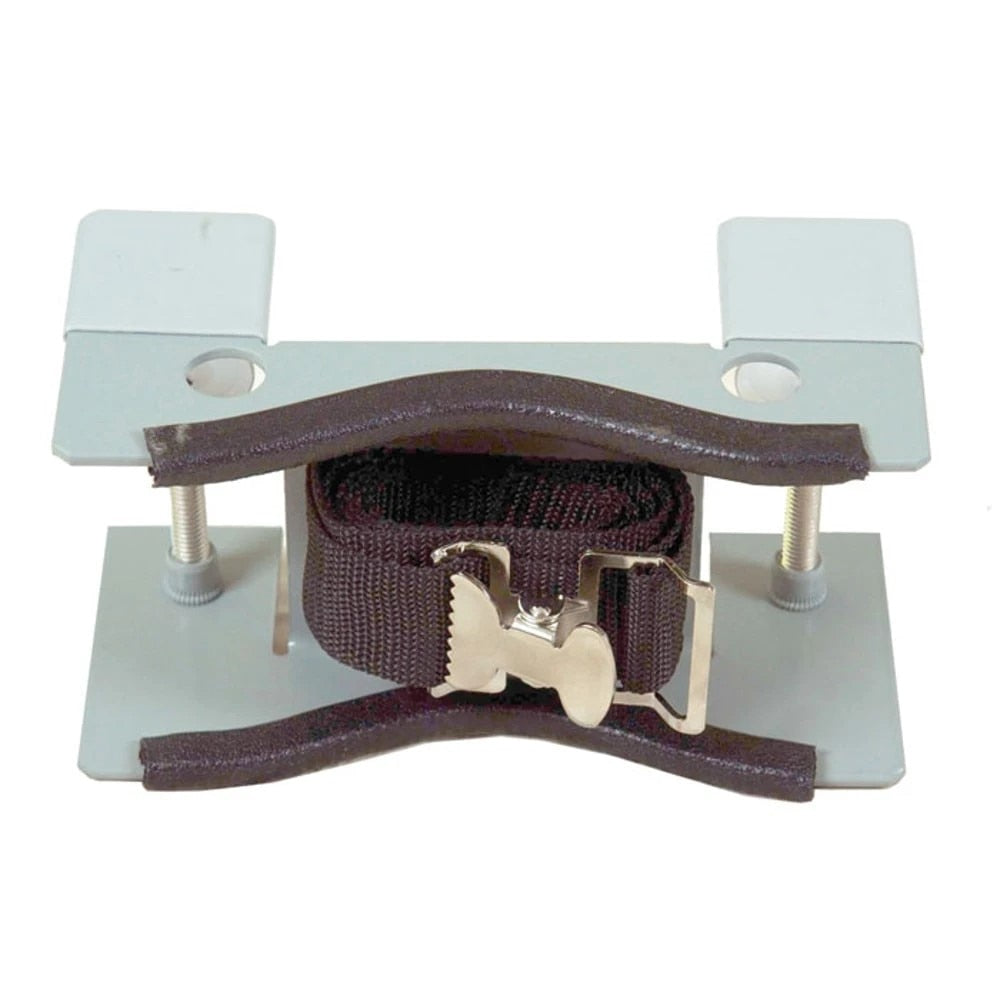

The JUSTRITE 35258 is a bench-mount gas cylinder support bracket designed to secure a single compressed gas cylinder in vertical orientation. Constructed from heavy-gauge, powder-coated steel, it accepts cylinder diameters from 4 to 12 inches and clamps to bench or table surfaces 1 to 2.75 inches thick. The bracket ships as a single unit and is intended for installation by industrial safety personnel, laboratory technicians, or maintenance trades working in facilities that store or use compressed gas cylinders in tight quarters.

This bracket is suited for bench-top or workstation environments in laboratories, welding shops, manufacturing facilities, and similar settings where compressed gas cylinders must be secured vertically and floor space is limited. The design accommodates a single cylinder station and provides an anchor point for optional secondary restraint chains, supporting compliance with compressed gas safety requirements common to industrial and laboratory environments.

Key Features

• Accepts cylinder diameters from 4 to 12 inches (102 to 305 mm)
• Clamps to surfaces 1 to 2.75 inches (26 to 70 mm) thick using dual 0.375-inch diameter clamping posts with 1.5-inch swivel pad faces
• Heavy-gauge powder-coated steel construction for long service life and chemical resistance
• Bumper guard edging with steel-reinforced vinyl protects cylinder surfaces and provides grip
• Heavy-duty polypropylene support strap, 1.5 x 54 inches, rated at 1,138 pounds, with steel cinch buckle
• Includes openings to retrofit secondary support chains for enhanced safety compliance

Compatibility

Designed for bench-mount installation securing compressed gas cylinders with diameters ranging from 4 to 12 inches in single-cylinder configurations.

Installation Notes

Installation is typically performed by facilities maintenance or laboratory safety personnel. Before mounting, confirm the bench or table surface thickness falls within the 1 to 2.75-inch clamping range and that the surface material can support the bracket and loaded cylinder. Verify the support strap and any secondary chain restraints are fully engaged and tensioned before placing a charged cylinder in service. Follow applicable compressed gas safety regulations and facility-specific cylinder storage procedures during installation.

Technical Specifications

• Cylinder Diameter Range: 4 to 12 inches
• Mount Type: Bench mount
• Cylinder Capacity: 1 cylinder
• Clamping Post Diameter: 0.375 inches
• Swivel Pad Face Width: 1.5 inches
• Table Thickness Range: 1 to 2.75 inches
• Support Strap Size: 1.5 x 54 inches
• Strap Load Rating: 1,138 pounds
• Material: Powder-coated steel with steel-reinforced vinyl edging and polypropylene strap
• Length: 4 inches
• Width: 8 inches
• Height: 4.25 inches
• Weight: 1.4 pounds
• UPC: 697841210851

Standard Information

• Brand: JUSTRITE
• Manufacturer Part Number: 35258
