Product Description

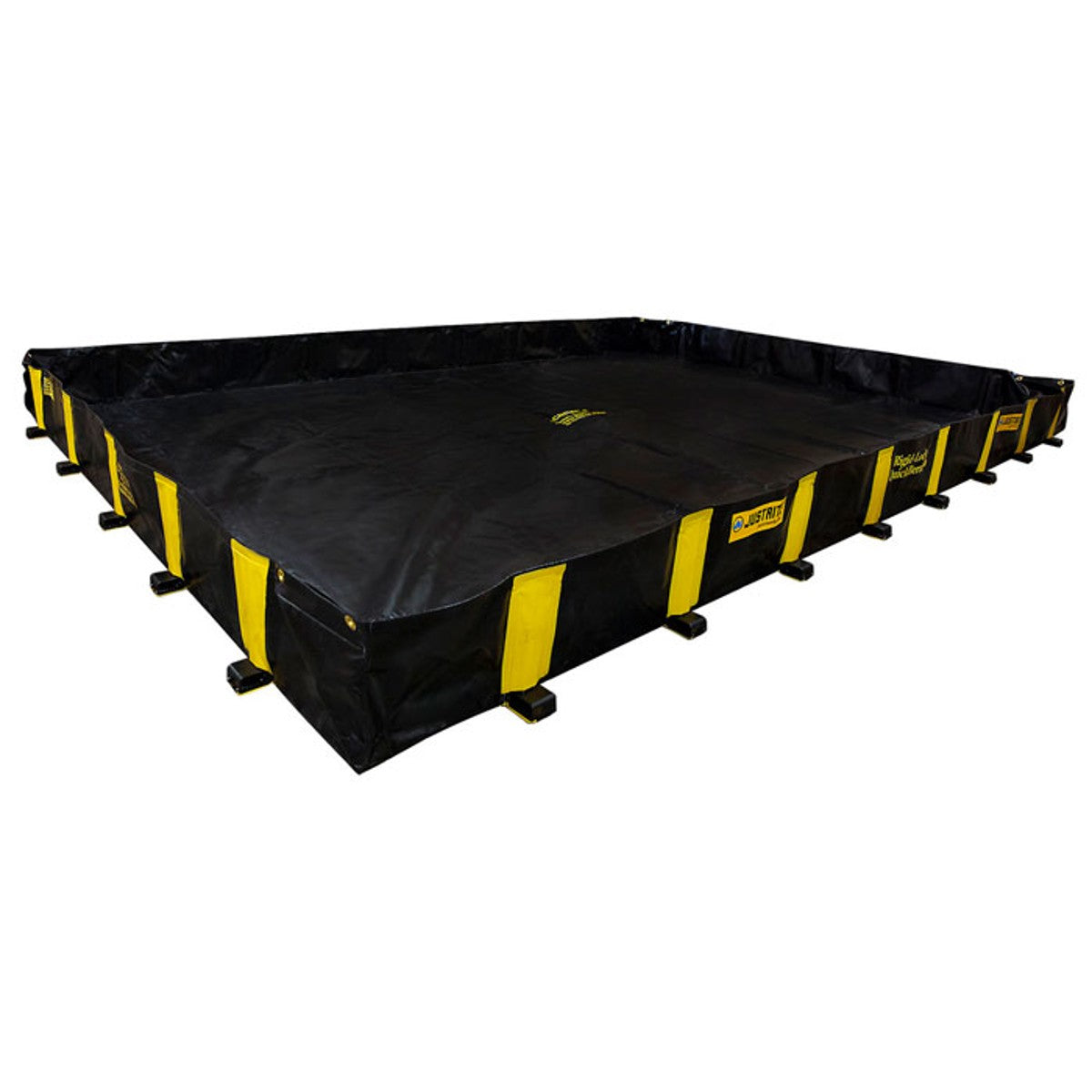

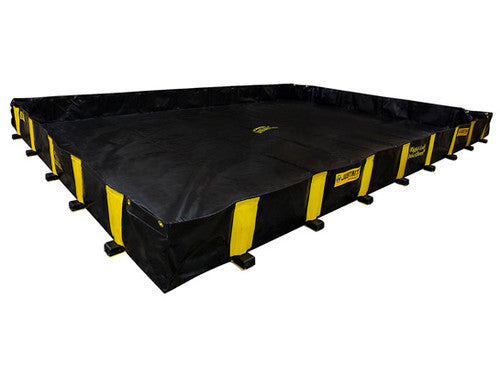

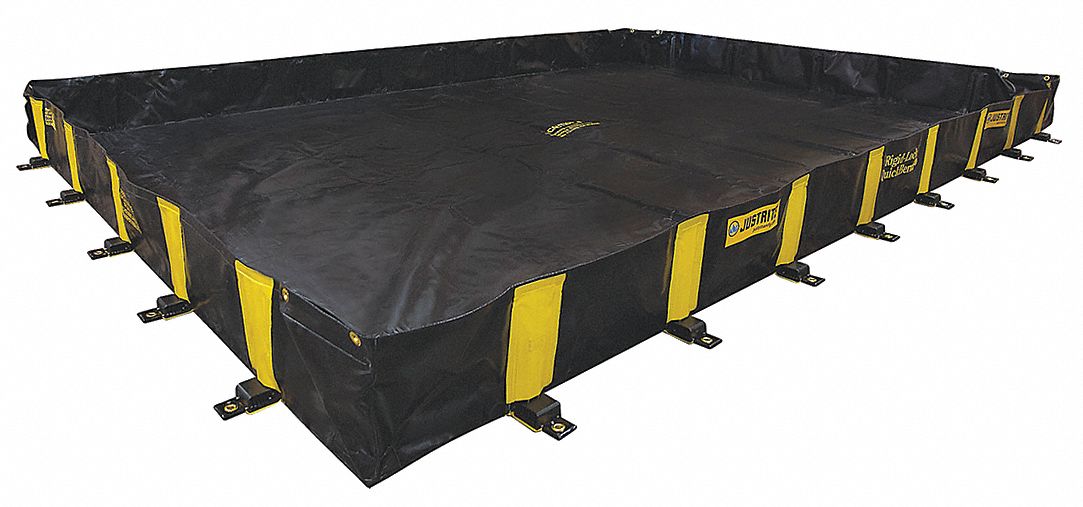

The Justrite 28524 Rigid-Lock QuickBerm is a single-piece, drive-in containment berm designed to capture and contain up to 1,435 gallons within a 12 ft by 16 ft footprint and 12 in sidewalls. It uses stainless steel rigid-lock wall supports to lock walls at 90 degrees for unobstructed interior access and drive-in/drive-out capability. Constructed of PVC and modified PVC-coated fabric with reinforced corners and RF welds, it withstands extreme temperatures and wind when anchored.
- Contains approximately 1,435 gallons in a 12' x 16' x 12" footprint; interior dimensions 12" H x 144" W x 192" L
- Patented rigid-lock stainless steel wall supports lock sidewalls at 90° for safe drive-in access and can withstand vehicle loads up to 11,000 lb per tire when lowered
- PVC / modified PVC-coated fabric construction with reinforced CriticalCorner diagonal RF welds, temperature range -50°F to 160°F, and wind resistance up to 40 mph when anchored
Product Highlights
1,435 gallon capacity; 12' x 16' x 12" drive-in single-piece berm with stainless steel rigid-lock supports
Product Information
Standard Information
-
Brand: JUSTRITE
-
Manufacturer Part Number: 28524
-
Country of Origin: United States
Technical Specifications
-
Brand: Justrite
-
MPN: 28524
-
Model: Rigid-Lock QuickBerm
-
Product Type: Containment berm
-
Containment Capacity (gallons): 1,435 gal
-
Containment Capacity (liters): 5,432 L
-

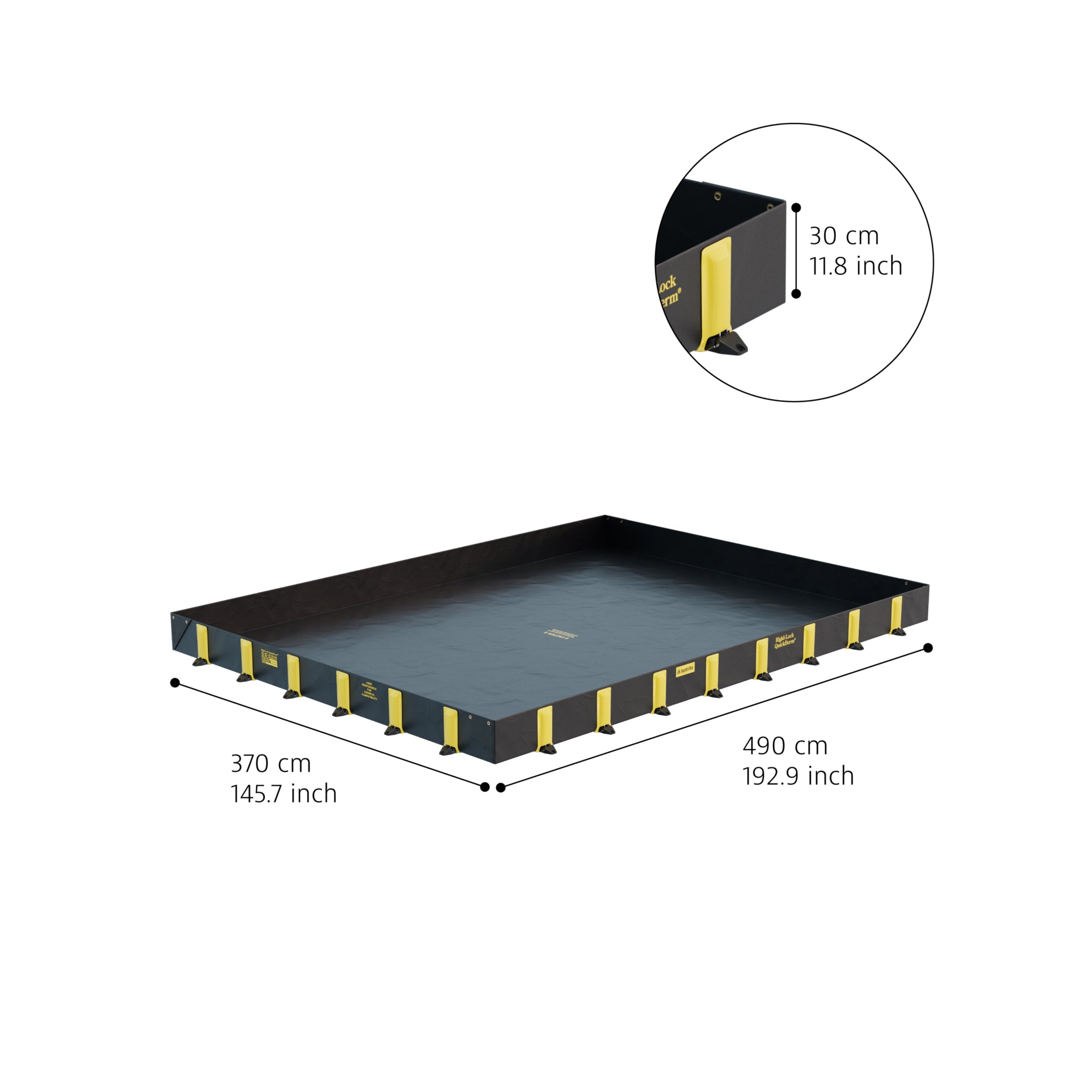

Footprint: 12 ft x 16 ft (144" x 192")
-
Height: 12 in (sidewall height)
-
Interior Dimensions: 12" H x 144" W x 192" L (305 mm H x 3658 mm W x 4877 mm L)
-
Exterior Dimensions: 12" H x 152" W x 200" L (305 mm H x 3861 mm W x 5080 mm L)
-
Folded Dimensions: 26" W x 26" L x 16" H (660 mm W x 660 mm L x 406 mm H)
-
Material: PVC; modified PVC-coated fabric (EnGuard IV)
-
Wall Supports: Stainless steel wall supports with high-strength engineered nylon hubs and anchor holes
-
Corner Construction: Reinforced CriticalCorner diagonal RF welds
-
Temperature Range: -50°F to 160°F
-
Wind Resistance: Up to 40 mph when anchored
-
Vehicle Load Capacity per Tire: 11,000 lb (5,000 kg) per tire (when sidewalls lowered)
-
Net Weight: 79 lb (35.8 kg)
-
UPC / GTIN: 697841156470
-
EPA Compliance: Helps comply with EPA SPCC containment and spill prevention guidance
-
Prop 65: Yes
-
Shape: Rectangle
-
Country of Origin: United States
