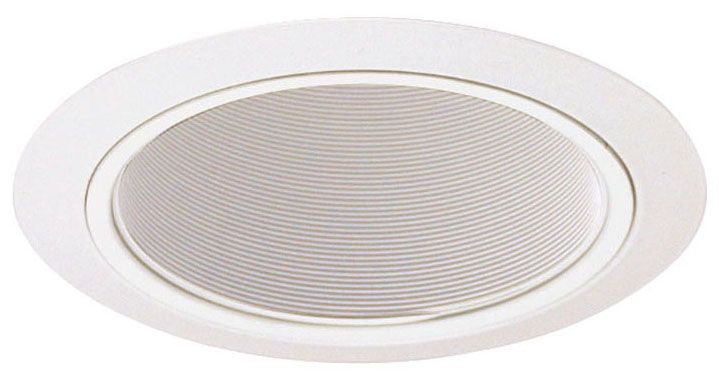

Juno 203W-WH 203 deep downlight baffle trim 5 inches

Product Description

The Juno 203W-WH is a deep downlight baffle trim designed for recessed lighting applications. It features a 5" deep baffle trim and a 4-1/2" aperture with a white baffle. This trim is suitable for use with TC20/TC20S/TC20R series housings with 75W PAR30 or 65W BR30 lamps. It is designed for wall mounting.

• 5 in deep baffle trim
• 4-1/2 in aperture, white baffle
• For use with TC20/TC20S/TC20R 75W PAR30, 65W BR30 housing and lamp

Product Highlights

Deep downlight baffle trim for recessed lighting. Compatible with various housing types and lamp wattages. Ideal for residential and commercial applications.

Product Information

Standard Information

• Brand: JUNO
• Manufacturer Part Number: 203W-WH
• Country of Origin: UKN

Technical Specifications

• Alternate Catalog Number: 243RL9
• Aperture Size: 5-in
• Application: Recessed Residential; Damp Location
• Catalog Number: 203 WWH
• Color: White
• Depth: 5 in
• EU RoHS Indicator: N
• Finish: Black (Baffle), White (Trim)
• Series: 203
• Standards: UL Listed
• Sub Brand: Juno®
• Type: Deep Baffle
• UNSPSC: 39111515
• UPC 11: 66120900762
• UPC 12: 661209007629
• Brand: Juno®
• Manufacturer: Acuity Brands
• Lamp Type: Halogen/Incandescent

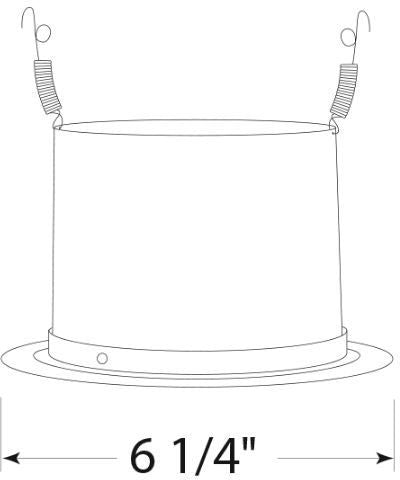

• Outside Diameter: 6-1/4 in
• Suitable For Use With: TC20/TC20S/TC20R Series Housing
• Aperture Shape: Round
• Approval: Ul, Csa
• Ceiling Type: Insulated/Non-Insulated
• Nominal Aperture Size: 4 1/2 Inch
• Size: 6 1/4" Dia
• Used On: IC20/IC20R/TC20/TC20R Series Incandescent Housing
• Model: 203w-wh
• MPN: 203w-wh
• Incandescent Lamp Type: PAR30 75 W, BR30 65 W
• Category: Lighting Fixture
