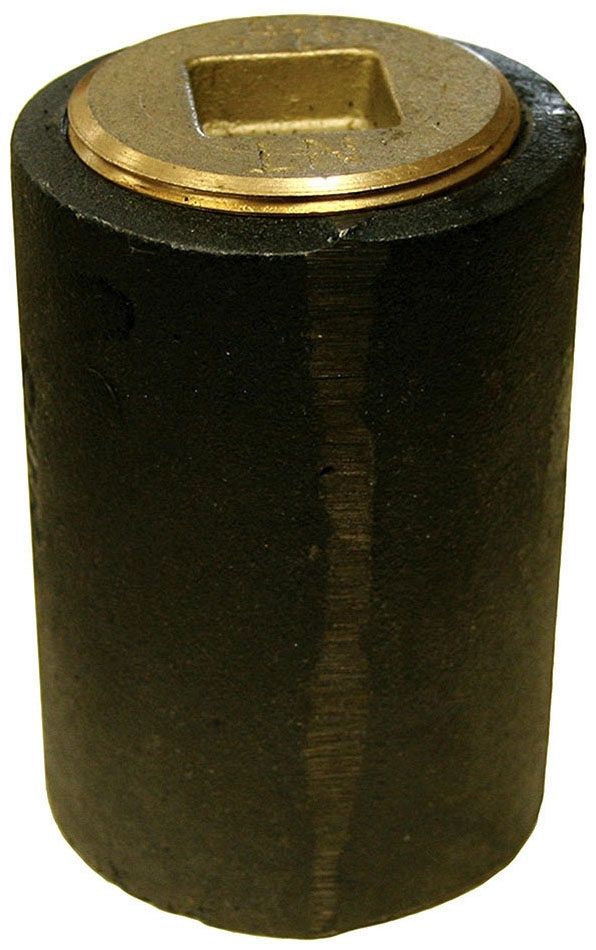

Jumbo Mfg c39-006 6 Inch Standard Body Cleanout No Hub

Product Description

The JUMBO MFG c39-006 is a 6-inch standard body cleanout designed for no-hub and service weight cast iron drainage systems. It ships with a 5-inch countersunk plug and provides access to the drain line for rodding, inspection, and clearing blockages without cutting into the pipe. Licensed plumbers install this fitting in residential and light commercial drain, waste, and vent systems wherever code requires accessible cleanout points.

This cleanout is suited for 6-inch no-hub service weight cast iron installations. The countersunk plug sits flush with the cleanout body, making it appropriate for floor-level or slab applications where a low-profile access point is required. It is intended for use in gravity-flow sanitary drain and waste lines.

Key Features

• 6-inch no-hub connection compatible with service weight cast iron pipe
• Includes 5-inch countersunk plug for flush, low-profile closure
• Standard body configuration for straightforward inline or terminal cleanout installation
• Designed for access to drain lines for maintenance and obstruction clearing

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 6-inch no-hub service weight cast iron drain, waste, and vent piping systems.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code and applicable local amendments. No-hub connections require an approved no-hub coupling and torque-controlled band clamp driver. Ensure the drain line is empty and depressurized before removing the plug for service access. Follow local code requirements for cleanout spacing and accessibility clearance.

Technical Specifications

• Pipe Size: 6 inches
• Plug Size: 5 inches countersunk
• Connection Type: No-hub / service weight
• Body Style: Standard body

Standard Information

• Brand: JUMBO MFG
• Manufacturer Part Number: c39-006
