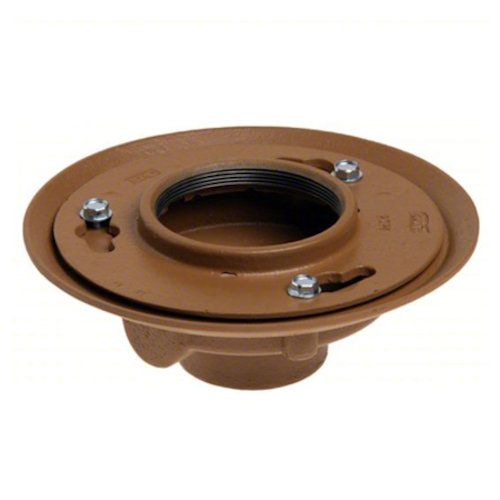

Jr Smith 2005y04ba-p050 4 Inch Round Floor Drain

Product Description

The JR SMITH 2005y04ba-p050 is a 4-inch adjustable cast iron floor drain designed for commercial and residential plumbing installations where reliable floor-level drainage is required. The round top measures 5 inches across with an overall top size of 9 inches, and the adjustable body allows for precise height setting during concrete pours or finish floor work. It includes an integrated strainer and a trap primer connection, making it compatible with trap primer supply lines that maintain the water seal in the drain trap. Licensed plumbers install this drain as part of wet-area and utility floor drainage systems.

This drain is suited for shower rooms, toilet rooms, and kitchen areas where floor drainage is required by code. The trap primer connection port makes it appropriate for installations where the drain may experience infrequent use and trap evaporation is a concern, such as mechanical rooms, commercial kitchens, and restroom floors. The adjustable body accommodates variations in finished floor thickness, giving installers flexibility during rough-in and finish stages of construction.

Key Features

• Adjustable body allows height tuning to match finished floor elevation
• Cast iron construction provides durability in concrete slab and wet-area applications
• Trap primer connection port maintains water seal in low-use drain scenarios
• Integrated strainer included to capture debris at the drain opening
• Round top design with 5-inch top size and 9-inch overall top dimension
• Suitable for shower, toilet room, and kitchen floor drain applications

Compatibility

Designed as an OEM-style floor drain for 4-inch drain pipe connections in residential and commercial plumbing systems requiring a round adjustable floor drain with trap primer capability.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and verify drain line routing before setting the drain body in the slab form or existing floor opening. The adjustable collar should be set to finished floor height before concrete is poured or tile is set to ensure a flush, properly sloped finish. Do not overtighten the strainer or locking ring components during final assembly.

Technical Specifications

• Type: Adjustable Floor Drain
• Pipe Size: 4 inches
• Top Shape: Round
• Top Size: 5 inches
• Overall Top Size: 9 inches
• Body Material: Cast Iron
• Inclusions: Trap Primer Connection, Strainer
• Application: Shower, Toilet, Kitchen

Standard Information

• Brand: JR SMITH
• Manufacturer Part Number: 2005y04ba-p050
