JPL MHP25R8B12 Silver Flex Duct R8 12 in x 25 ft

Product Description

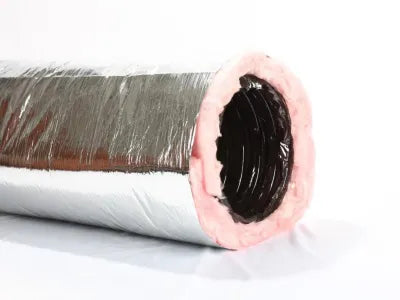

The JPL MHP25R8B12 is a silver flexible duct designed for indoor air distribution. This duct is twelve inches in inside diameter and twenty-five feet in length. The construction features a spring steel wire helix encapsulated in an airtight, two-ply inner core. It includes fiberglass insulation with a thermal resistance of R8 and is surrounded by a metalized, reinforced vapor barrier.

• Applications: Indoor use only.
• Flow Rate: Maximum of five thousand feet per minute.
• Temperature Rating: Suitable for temperatures from zero to two hundred degrees Fahrenheit.

Product Highlights

This flexible duct meets various certifications, including GreenGuard Gold. It is designed for efficient airflow and easy installation in HVAC systems.

Product Information

Standard Information

• Brand: JPL
• Manufacturer: JP Lamborn

Technical Specifications

• Model Number: MHP25R8B-12
• Material: Metalized Polyester
• Insulation Value: R8
• Inside Diameter: 12 in
• Length: 25 ft
• Pressure Rating: -1/2 to 6 in-WG
• Vapor Transmission: 0.01 perm
• Certifications: ASTM E96A, GreenGuard Gold Certification, IMC Approved, NFPA 90A/90B, UL 181/MH11637, UMC Approved
