JPL MHP25R8B10 Silver Flex Duct R8 10 in x 25 ft Replacement MPN

Product Description

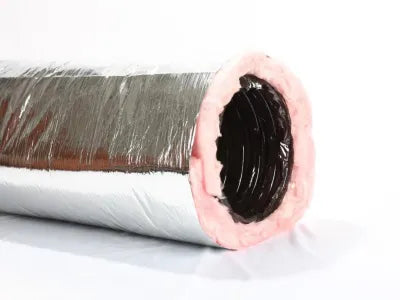

The JPL MHP25R8B10 is a flexible duct designed for indoor applications. It has a ten inch inside diameter and a length of twenty-five feet. This duct is constructed with a spring steel wire helix that enhances its structure. The duct is encapsulated in a two-ply air-tight inner core made from pigmented polyester. It features R8 fiberglass insulation for optimal thermal properties and is covered with a metalized reinforced vapor barrier that prevents moisture infiltration.

• Ten inch inside diameter
• High flow rate of five thousand feet per minute
• R8 insulation value

Product Highlights

This flexible duct is ideal for heating and cooling systems. Its insulation and vapor barrier make it suitable for energy-efficient designs.

Product Information

Standard Information

• Brand: JPL
• Part Number: MHP25R8B-10

Technical Specifications

• Type: Insulated Class 1
• Length: 25 feet
• Material: Metalized Polyester
• Flow Rate: 5000 feet per minute
• Inside Diameter: 10 inches
• Pressure Rating: -1 to 6 inches of water gauge
• Insulation Value: R8
• Temperature Rating: 0 to 200 degrees Fahrenheit
• Vapor Transmission: 0.01 perm
