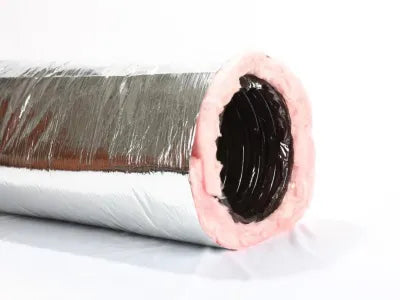

JPL MHP25R8B-06 Silver Flex Duct R8 6 in x 25 ft Replacement MPN

Product Description

The JPL MHP25R8B-06 is a flexible duct that measures six inches in diameter and twenty-five feet in length. This duct features a spring steel wire helix and an encapsulated inner core that is airtight. It has R8 fiberglass insulation surrounding the core, along with a metalized vapor barrier for enhanced durability.

• Constructed with spring steel wire helix
• Features R8 fiberglass insulation
• Includes a reinforced metalized vapor barrier

Product Highlights

Ideal for indoor applications, this duct is designed for effective air distribution with a certified insulation value. It is suitable for both residential and commercial use.

Product Information

Standard Information

• Brand: JPL
• Model Number: MHP25R8B-06

Technical Specifications

• Inside Diameter: 6 in
• Length: 25 ft
• Flow Rate: 5000 fpm
• Insulation Value: R8
• Pressure Rating: -1 to 6 in-WG
• Temperature Rating: -20 to 140 deg F
• Material: Fiberglass and metalized reinforced polyester
• Country of Origin: US
