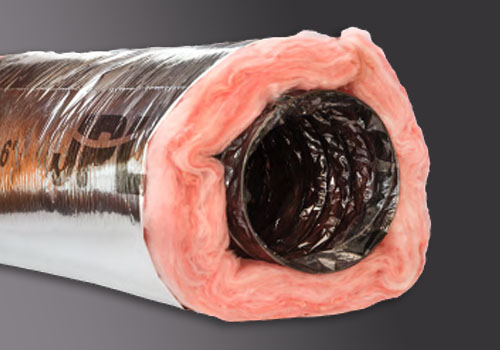

JPL MHP25R8-08 IN MHP-25 Series 8 in Insulated Flexible Duct - 25 ft L R-8

Product Description

The JPL MHP-25 Series is a flexible air duct identified by MPN MHP25R8-08 IN. This duct is suitable for low to medium pressure supply and return HVAC systems in various residential and commercial settings. The design emphasizes thermal efficiency and reliability.

• UL-listed Class 1 flexible air duct
• Includes R-8 fiberglass insulation
• Features a metalized polyester vapor barrier

Product Highlights

This duct incorporates a resilient spring steel wire helix for added strength. It prevents air leakage and maintains optimal thermal performance for HVAC applications.

Product Information

Standard Information

• Brand: JPL
• Product Type: Insulated Flexible Duct

Technical Specifications

• Core Material: Polyester
• Flame / Smoke Rating: Class 1 (25/50)
• Inside Diameter: 8 inches
• Insulated: Yes
• Jacket Material: Metalized Polyester
• Length: 25 feet
• Maximum Air Velocity: 5,000 FPM
• Maximum Working Pressure: 6 inches w.c.
• Operating Temperature Rating: 0-200 F
• R-Value: 8
• Shape: Round
