JPL MHP25R6B14 Silver Flex Duct R6 14 in x 25 ft

Product Description

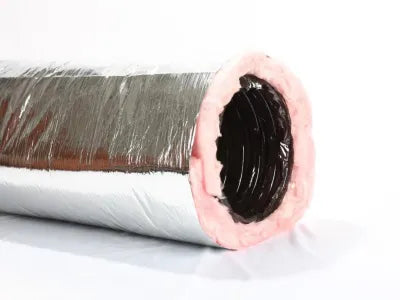

The JPL MHP25R6B14 is a versatile insulated class 1 flexible air duct. This duct features a spring steel wire helix and an airtight inner core made from two layers of material. The insulation is fiberglass rated at R6, providing excellent thermal efficiency. A reinforced vapor barrier surrounds the entire duct, allowing for effective moisture management and durability.

• Constructed with a spring steel wire helix
• Airtight 2-ply black pigmented polyester inner core
• Ideal for indoor applications with a maximum flow rate of 5000 fpm

Product Highlights

This flexible duct is suitable for indoor air distribution systems. It should not be exposed to direct ultraviolet light, making it perfect for various HVAC applications.

Product Information

Standard Information

• Brand: JPL
• Manufacturer: JP Lamborn

Technical Specifications

• MPN: MHP25R6B-14
• Length: 25 ft
• Inside Diameter: 14 in
• Flow Rate: 5000 fpm
• Insulation Value: R6
• Pressure Rating: -1/2 to 4 in-WG
• Temperature Rating: 0 to 200 deg F
• Vapor Transmission: 0.01 perm
