JPL MHP25R6B-16 Silver Flex Duct R6 16 in x 25 ft Replacement MPN

Product Description

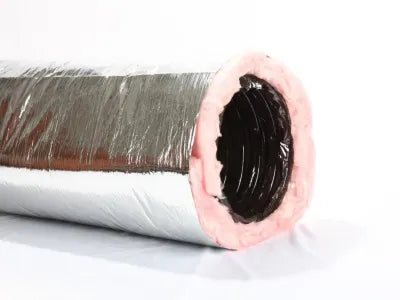

The JPL MHP25R6B-16 is a flexible air duct with a diameter of sixteen inches and a length of twenty-five feet. It features a construction of spring steel wire helix wrapped in a two-ply airtight inner core. This duct is insulated with R6 fiberglass, ensuring effective thermal properties. A reinforced metalized vapor barrier surrounds the entire duct for enhanced performance.

• Constructed with spring steel wire helix.
• Includes R6 fiberglass insulation for thermal efficiency.
• Bagged for easy handling and storage.

Product Highlights

This flexible duct is ideal for indoor applications, designed to provide effective airflow while maintaining energy efficiency. The duct meets various certifications, ensuring quality and safety standards.

Product Information

Standard Information

• Brand: JPL
• Manufacturer: JP Lamborn

Technical Specifications

• Type: Insulated Class 1
• Length: 25 ft
• Material: Metalized Polyester
• Flow Rate: 5000 fpm
• Inside Diameter: 16 in
• Pressure Rating: -1/2 to 4 in-WG
• Insulation Value: R6
• Temperature Rating: 0 to 200 deg F
• Vapor Transmission: 0.01 perm
