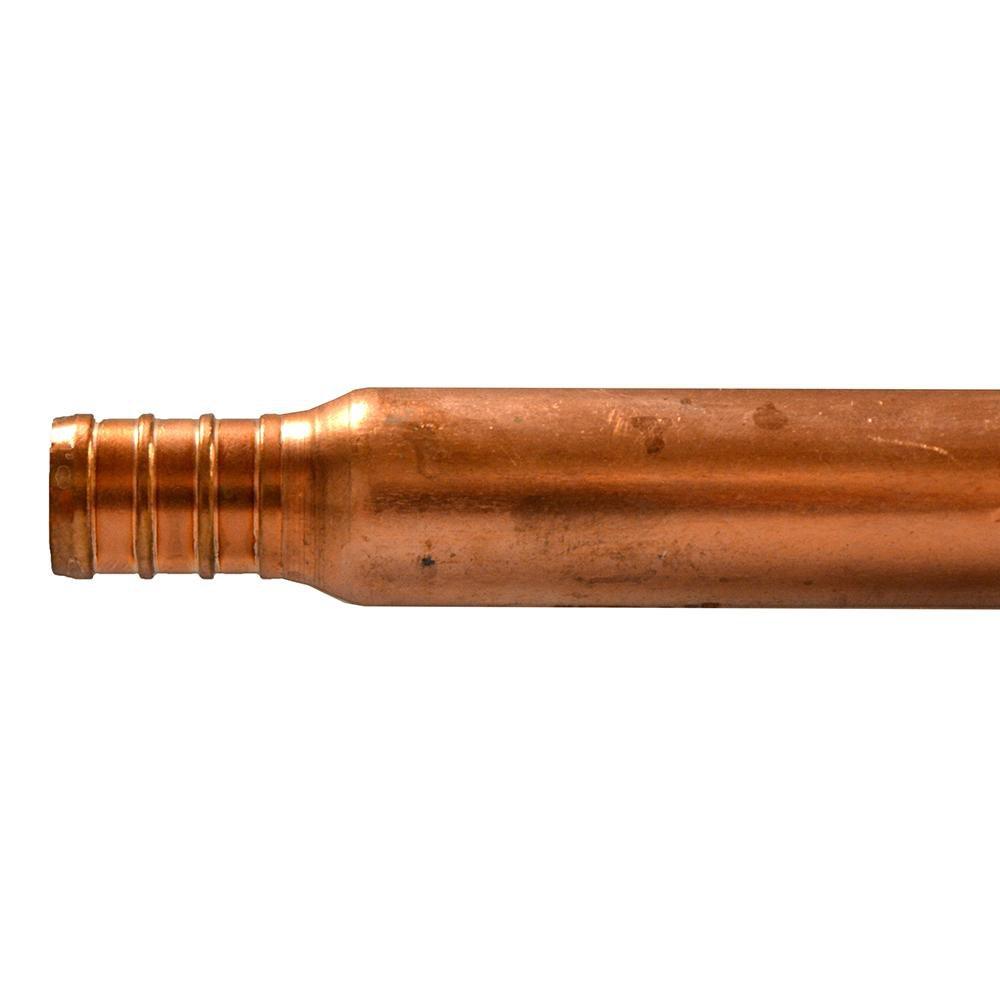

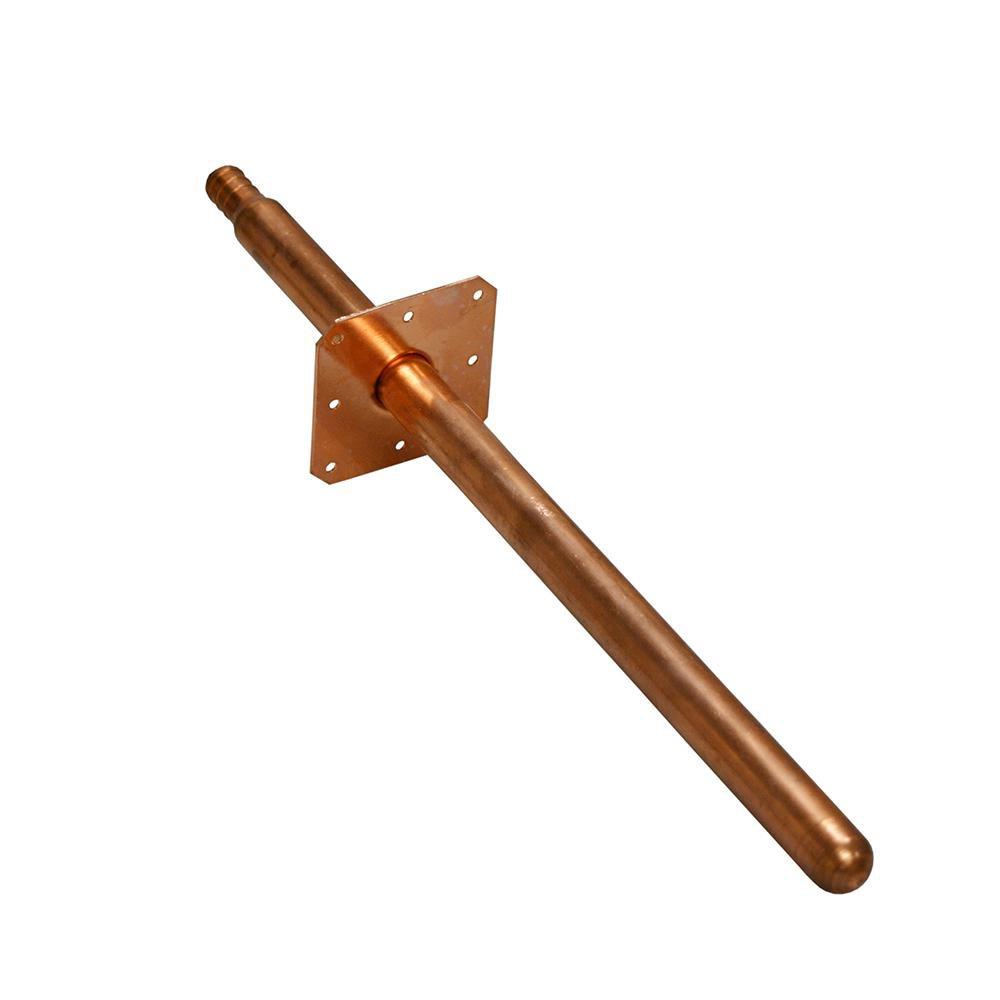

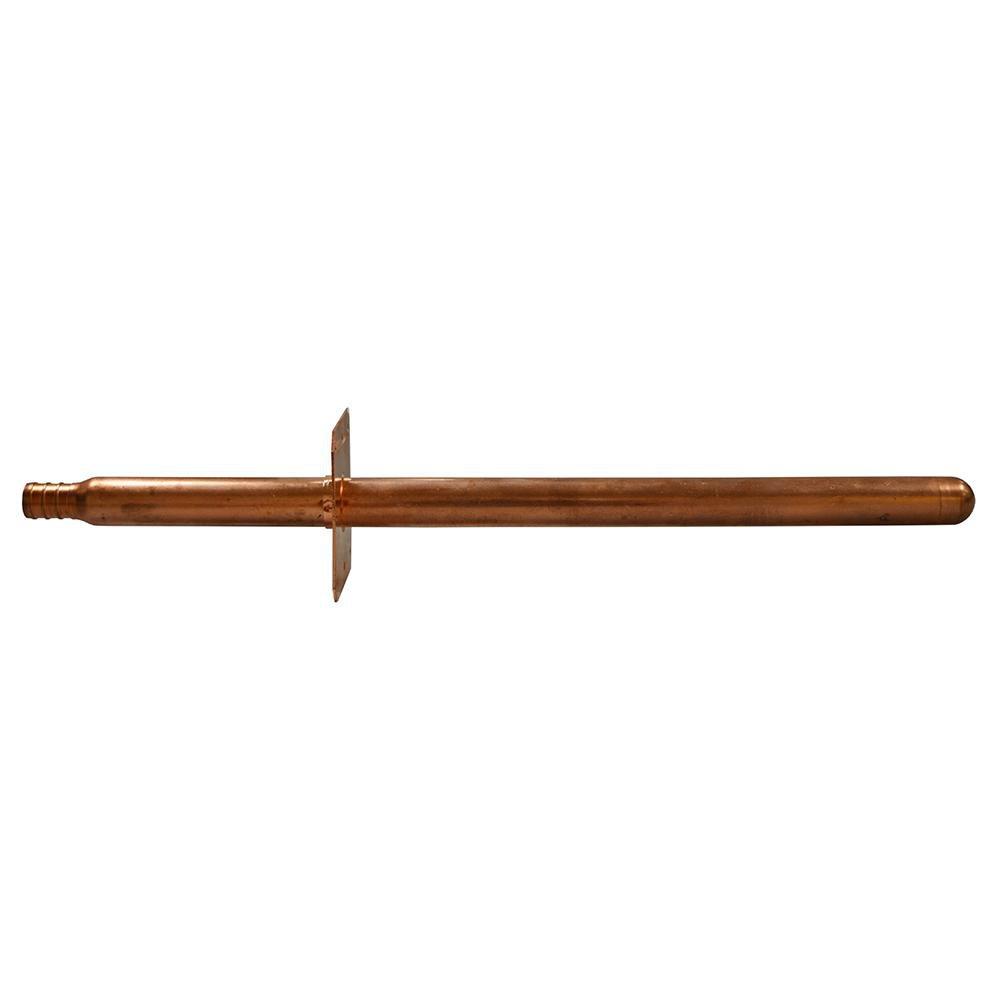

Jones Stephens S72017 1/2 x 12 in. F1807 Copper Stub Out Straight Close End with Mounting Flange

Product Description

The Jones Stephens S72017 is a 1/2 inch by 12 inch F1807 copper stub out designed for plumbing applications. This product features a closed end suitable for pressure testing and a flange that allows for easy nailing to a stud. It is compatible with ASTM F1807 (Crimp Style) PEX and complies with various safety standards.

• Closed end for effective pressure testing
• Flange for secure attachment to structural supports
• Lead-free construction for safe drinking water

Product Highlights

Durable and compliant with relevant plumbing standards, this stub out is a reliable choice for connecting PEX piping in both residential and commercial settings.

Product Information

Standard Information

• Brand: Jones Stephens
• MPN: S72017

Technical Specifications

• Material: Copper
• Type: Stub Out
• Size: 1/2 inch by 12 inch
• Compliance: ASTM F1807, NSF/ANSI 61
• Lead Content: Lead-free
• Country of Approval: USA and Canada
• Flange Included: Yes
• Usage: Plumbing, Connection to PEX
