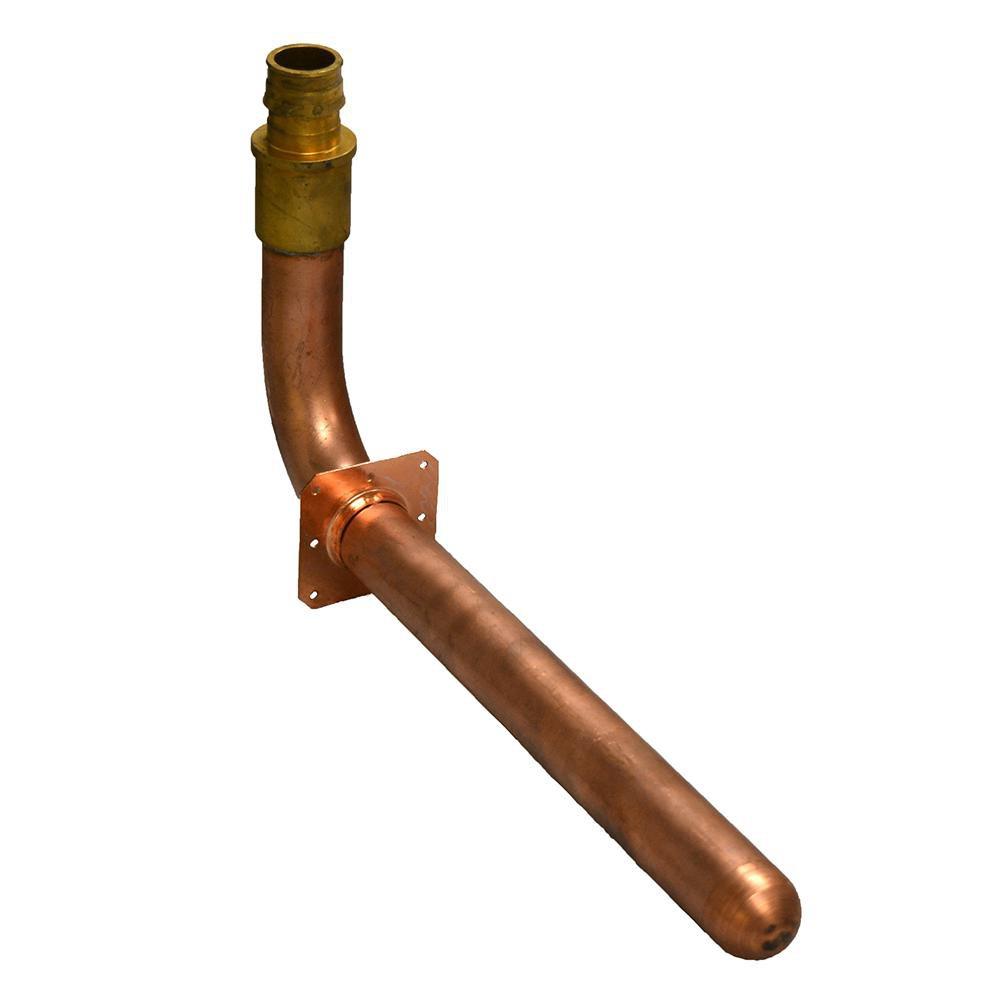

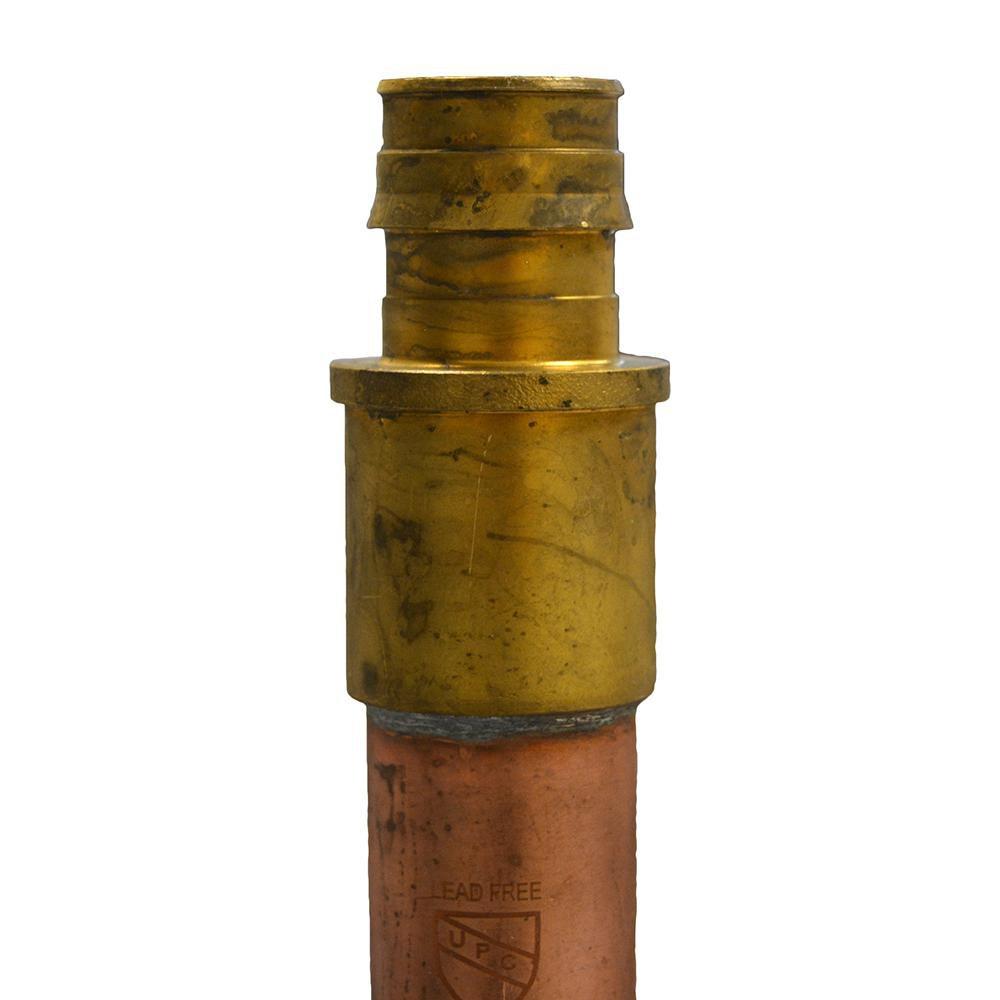

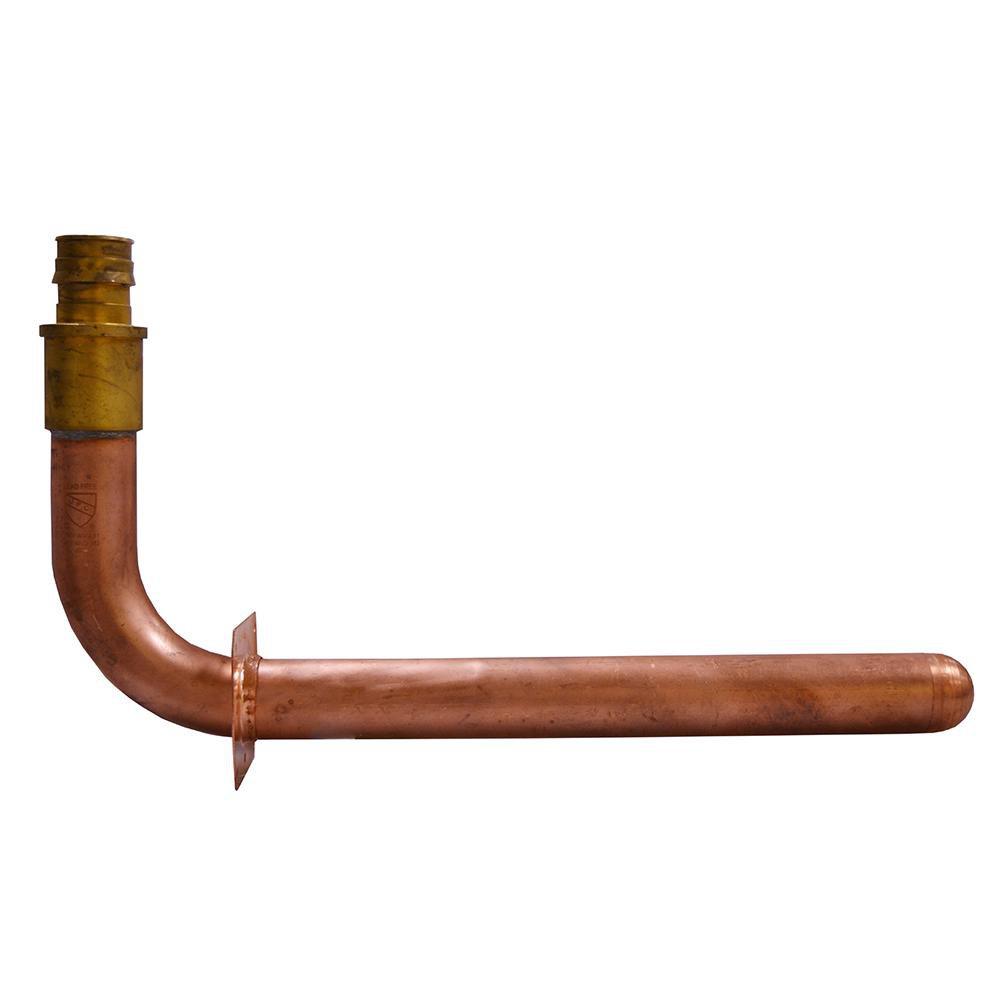

Jones Stephens S71007 1 x 6 x 12 in. PEX Expansion PEX Stub Out Elbow with Flange

Product Description

The Jones Stephens S71007 is a one inch by six inch by twelve inch PEX expansion stub out elbow with flange. It is designed for easy installation and connection to ASTM F1960 cold expansion style PEX. This stub out elbow features a closed end for pressure testing and a flange for nailing to a stud.

• Closed end for effective pressure testing.
• Flange attachment for secure installation.
• Connects with ASTM F1960 compliant PEX.

Product Highlights

This product is suitable for plumbing installations that require a reliable connection point for PEX pipe systems.

Product Information

Standard Information

• Manufacturer: Jones Stephens Corp
• Part Number: S71007

Technical Specifications

• Material Compliance: Complies with the Safe Drinking Water Act regulations and ANSI/NSF standards for lead content.
• UPC: 717510232165
• Type: PEX Stub Out Elbow
• Size: 1 x 6 x 12 inches
• Connection Type: Cold Expansion Style PEX
• Approval: CUPC approved for use in USA and Canada
