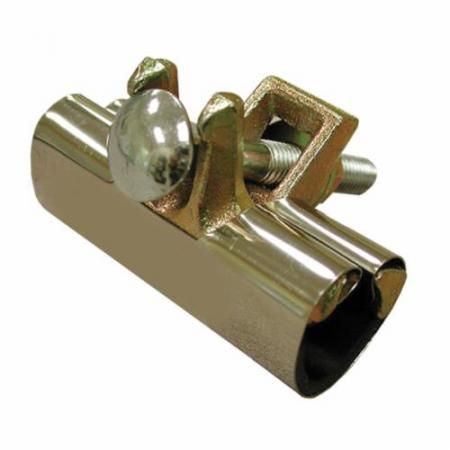

Jones Stephens R60100 1 x 6 Stainless Steel Repair Clamp

Product Description

The Jones Stephens R60100 1 x 6 Stainless Steel Repair Clamp is designed for quick and easy pipe repair. Made from 301 stainless steel, this clamp ensures durability and resistance to corrosion. It features long neck carriage bolts for straightforward installation and is ideal for various plumbing applications.

• Easy installation with long neck carriage bolts
• Corrosion-resistant stainless steel construction
• Applicable for a range of pipe repairs

Product Highlights

This repair clamp features plated lugs, carriage bolts, and nuts for enhanced corrosion protection. It also includes a neoprene gasket designed to withstand temperatures up to 180 degrees Fahrenheit. The clamp’s malleable iron lugs comply with ASTM A47 grade 32610 standards, ensuring high quality. It is suitable for various chemicals and temperature ranges from -40 to 212 degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Jones Stephens Corp
• UPC: 717510601008
• Catalog Number: R60100
• Product Type: Repair Clamp

Technical Specifications

• Material: 301 Stainless Steel
• Pipe Size: 6 inches
• Temperature Rating: 180 degrees Fahrenheit
• Type: 2-Bolt
• Gasket Grade: 60
• Compliance: ASTM A47, ASTM A307
• Clamp Width: 3 inches
• Gasket Temperature Range: -40 to 212 degrees Fahrenheit
