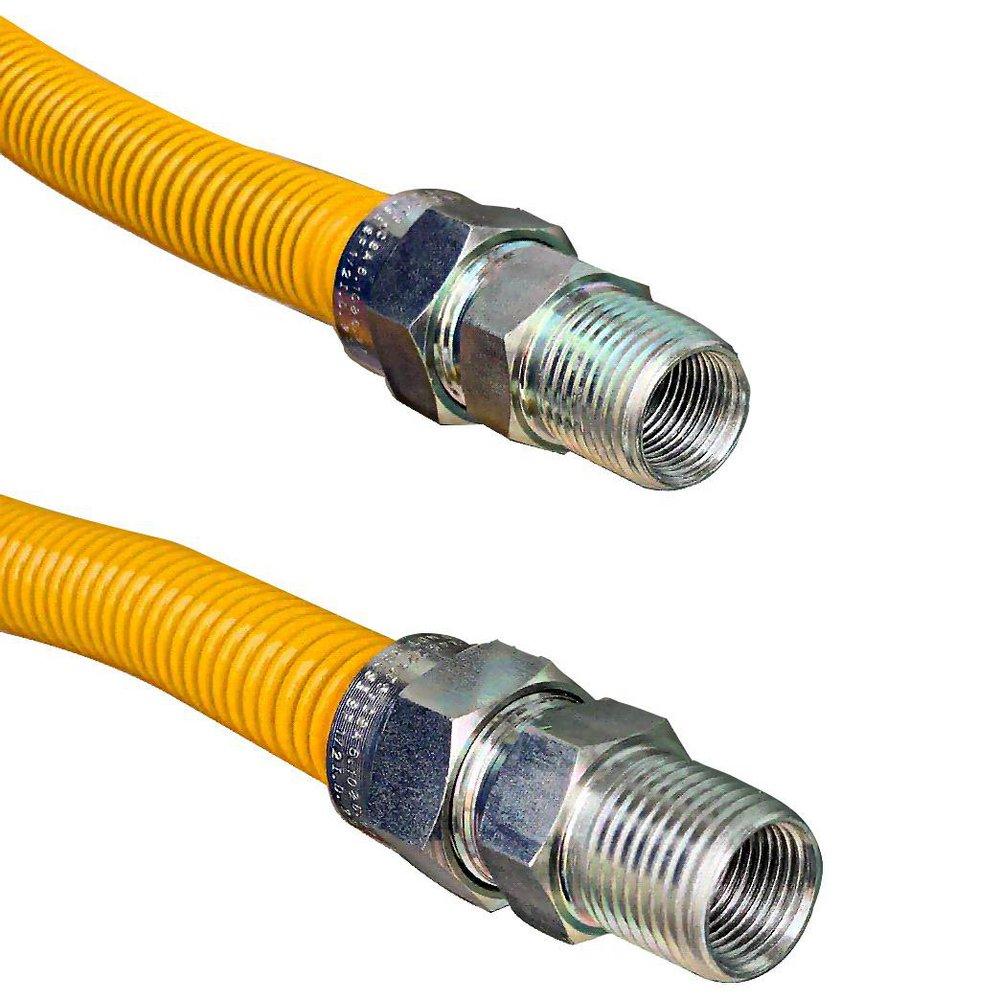

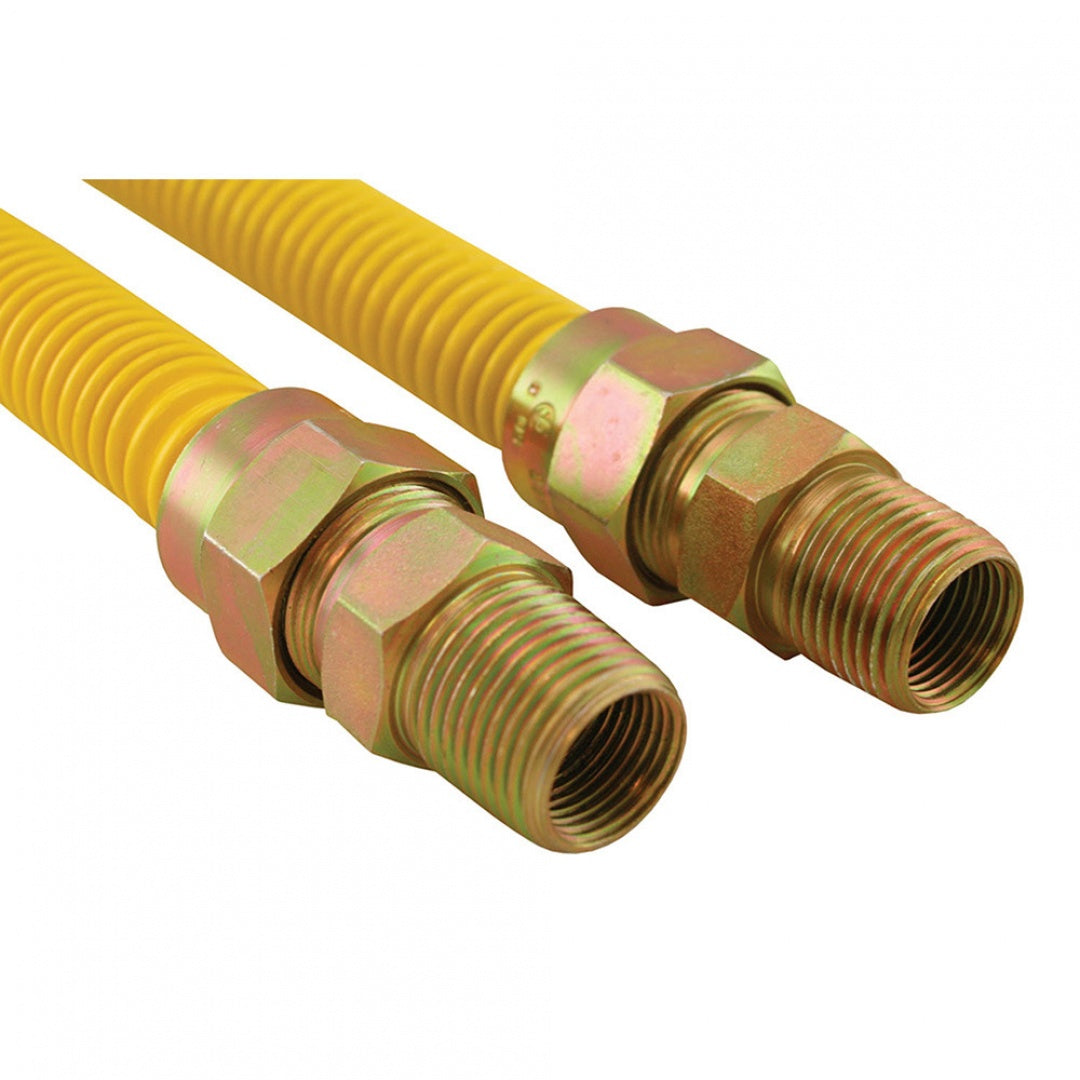

Jones Stephens G71152 1/2 x 48 in. MIPS Gas Connector with Fitting

Product Description

The Jones Stephens G71152 is a durable gas connector designed for safe and effective gas appliance installations. This connector is made from stainless steel 304, ensuring longevity and reliability in various environments. It measures one-half inch by forty-eight inches and features metallic flared end fittings to provide a secure, leak-free connection.

• Constructed from corrosion-resistant stainless steel 304
• Certified for indoor and outdoor use by CSA
• 100% leak tested for safety and reliability

Product Highlights

This gas connector integrates a corrugated design that enhances tubing flexibility, aiding in installation ease in various settings.

Product Information

Standard Information

• Brand: Jones Stephens
• MPN: G71152

Technical Specifications

• Material: Stainless steel 304
• Size: 1/2 in. diameter by 48 in. length
• Max BTU Rating: 106,000 BTU
• Minimum Fitting Tightening Torque: 250 in-lbs / 28.25 N-M
• Maximum Fitting Tightening Torque: 520 in-lbs / 58.75 N-M
• Certification: CSA Design certified
• Sealing Type: Flared end fittings for metal-to-metal seal
