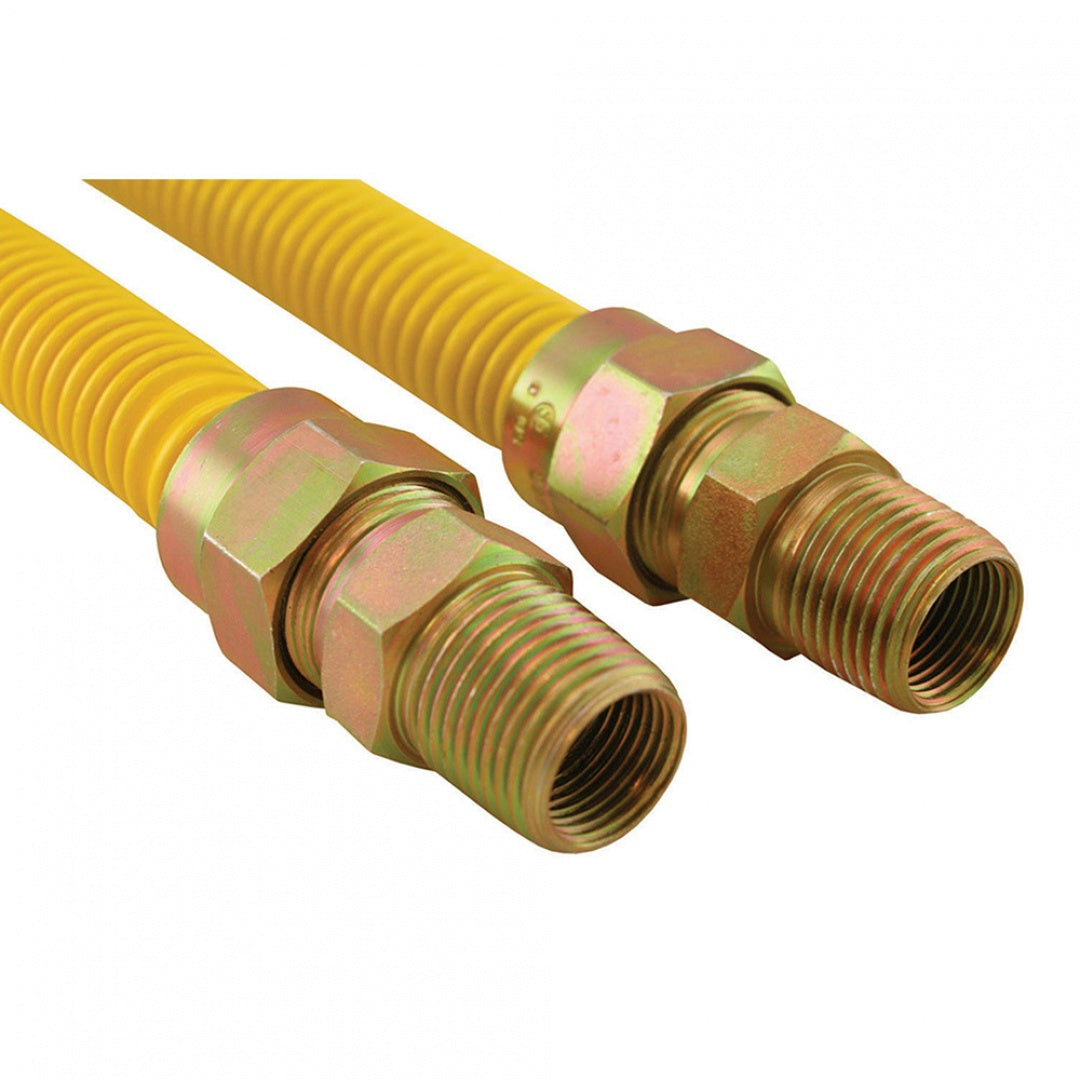

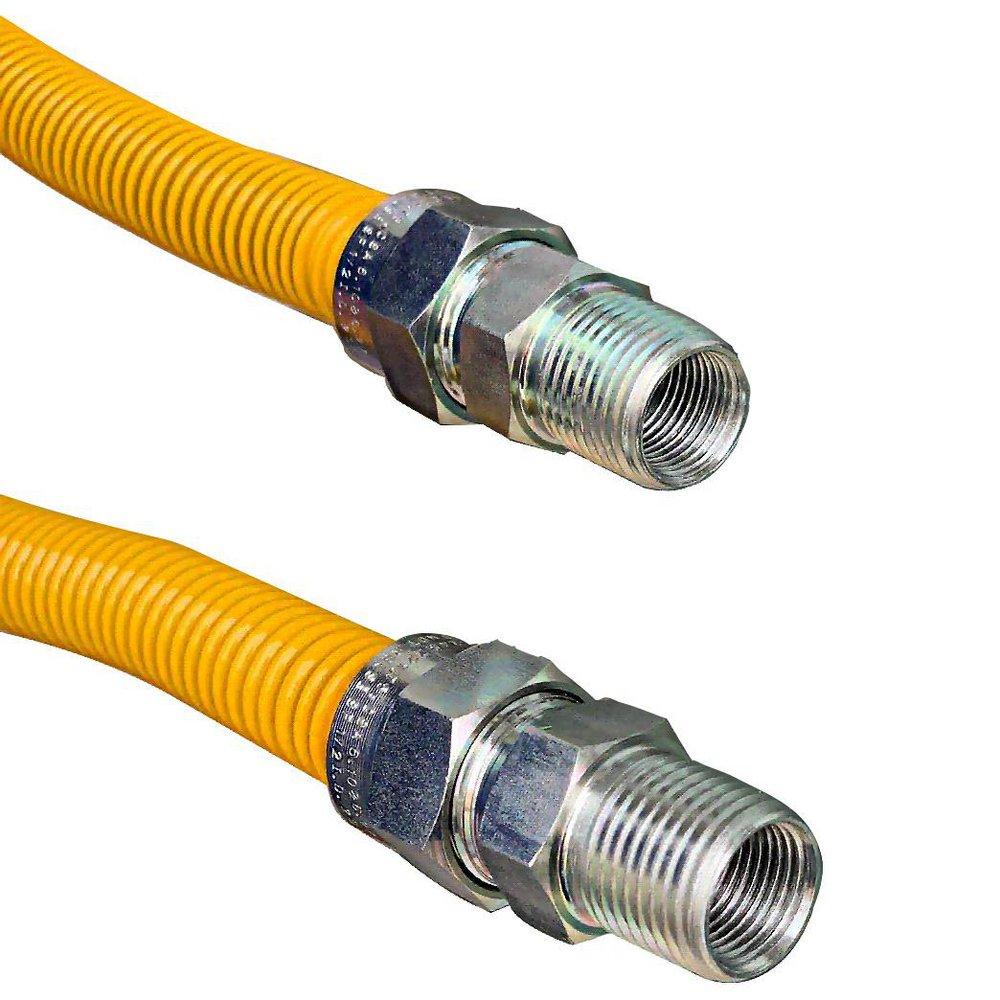

Jones Stephens G71150 3/4 x 48 in. MIPS Gas Connector with Fitting

Product Description

The Jones Stephens G71150 is a 3/4 x 48 inch MIPS gas connector designed for reliable performance. This connector is made from durable stainless steel 304 material, ensuring that it can withstand corrosive environments.

• Corrugation extends to the fitting for better tubing flexibility.
• 100% leak tested for safety and assurance.
• Quality flared end fittings provide a strong metal-to-metal seal in key applications.

Product Highlights

This connector is CSA Design certified for use both indoors and outdoors. It meets industry standards ensuring quality and reliability.

Product Information

Standard Information

• Manufacturer: Jones Stephens Corp
• Part Number: G71150

Technical Specifications

• Material: Stainless Steel 304
• Diameter: 3/4 inches
• Length: 48 inches
• Gas BTU Rating: 106,000 BTU (31,066 W)
• Minimum Fitting Torque: 250 in-lb / 28.25 N-M
• Maximum Fitting Torque: 520 in-lb / 58.75 N-M
• Leak Test: 100% tested for quality
• Usage Certification: CSA Design certified
