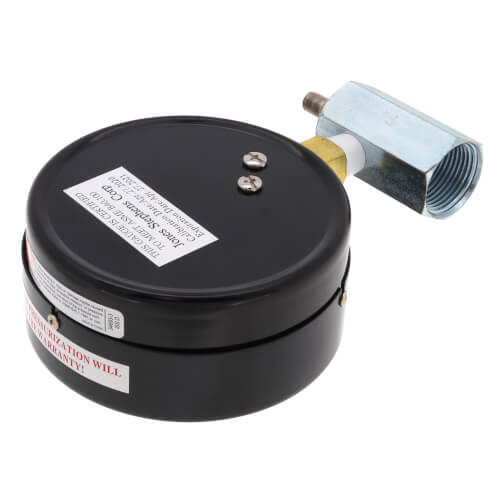

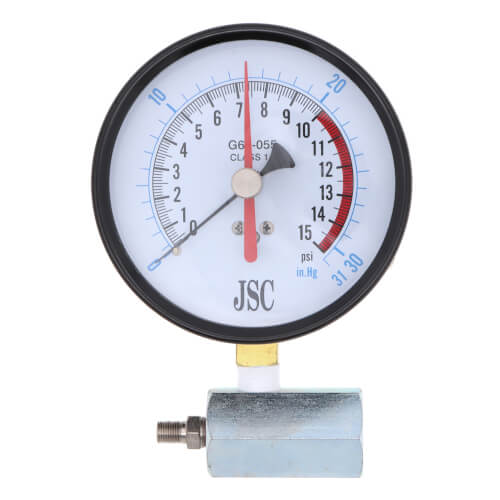

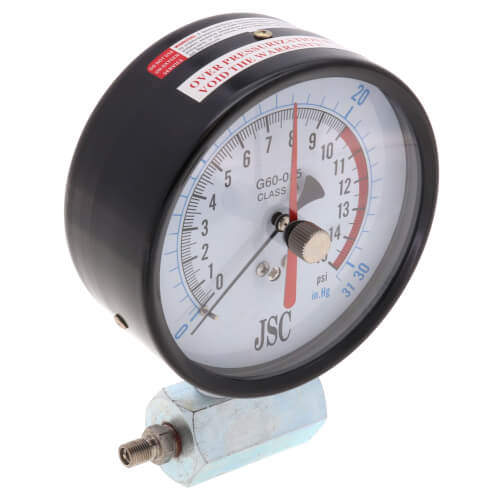

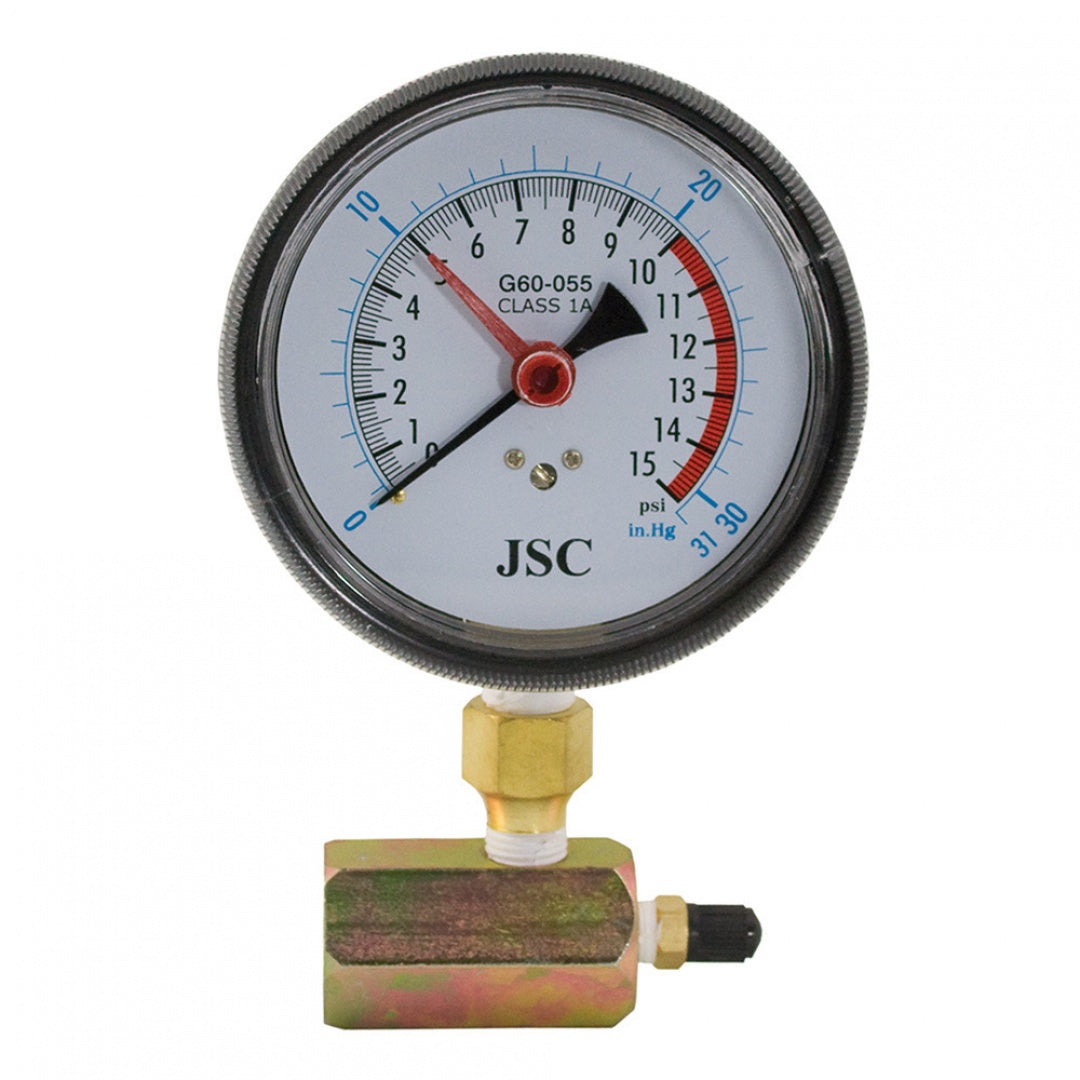

Jones Stephens G65155 15 LB Gas Test Assy W/4 Face & Snubber

Product Description

The Jones Stephens G65155 is a 15 lb gas test assembly designed for various plumbing applications. This assembly features a four-inch face with a pressure snubber that helps regulate air to ensure an even flow. It effectively protects against over-pressurization, which can void the warranty. Additionally, this device safeguards the diaphragm from damage caused by compressed air.

• Four-inch face with built-in pressure snubber
• Ensures steady air flow regulation
• Protects diaphragm against damage

Product Highlights

This gas test assembly is essential for safely conducting pressure tests in plumbing systems.

Product Information

Standard Information

• Manufacturer: Jones Stephens Corp
• UPC: 717510651553

Technical Specifications

• Type: Dry
• Mount: Bottom
• Material: Brass
• Measures: Pressure
• Weight: 1.37 lbs
• Dial Size: 4 inches
• Max Pressure: 15 psig
• Shipping Dimensions: 7.6 inches depth, 4.9 inches width, 4 inches height
