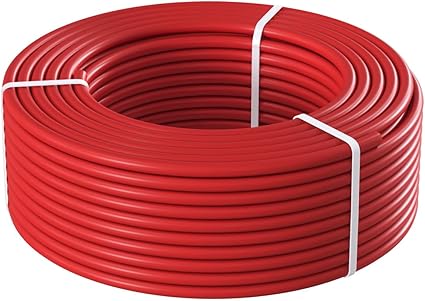

JONES STEPHENS F76801 PEX-A Pipe 3/4X500 F1960

Product Description

The JONES STEPHENS F76801 PEX-A pipe measures 3/4 by 500. Made from plastic, it features a durable crosslinking design. This pipe is highly flexible, reducing the risk of kinking and minimizing the need for multiple fittings during installation. Approved for use with F1960 expansion fittings.

• Constructed from durable plastic
• Compatible with F1960 fittings
• Designed for easy installation

Product Highlights

This PEX-A pipe offers corrosion resistance and operates quietly. It is suitable for potable plumbing and meets NSF certifications for various standards including ASTM F876/877 and CSA B137.5.

Product Information

Standard Information

• Material: Plastic
• Compatible Valve Type: F1960

Technical Specifications

• Inlet Connection Size: 3/4 inches
• Outlet Connection Size: 3/4 inches
• ID: 0.681 inches
• OD: 0.875 inches
• Max Temperature: 203 degrees Fahrenheit
• Pipe/Tubing Size: 3/4 inches
• Max Pressure: 160 psi
• Temperature Range: 73 degrees Fahrenheit - 180 degrees Fahrenheit
• Tensile Strength: 2900 psi
• Working Pressure: 100 psi
• Working Temperature: 180 degrees Fahrenheit
• Approved Applications: Water
• Length: 500 feet
• Wall Thickness: 0.097 inches
• Warranty: 11-25 Year
• End Connections: Tube
• ANSI Standard: ANSI 14
• ASTM Standard: ASTM F876
• Lead Law Compliant: Yes
• MASS Approved: Yes
• NSF Certified: Yes
• NSF Standard: NSF 14
• SDWA Compliant: Yes
• HAZMAT: No
• CAN Standard: CAN 61
