Jones Stephens D49807 4 PVC STD Floor Drain F/3 1/2 Spud

Product Description

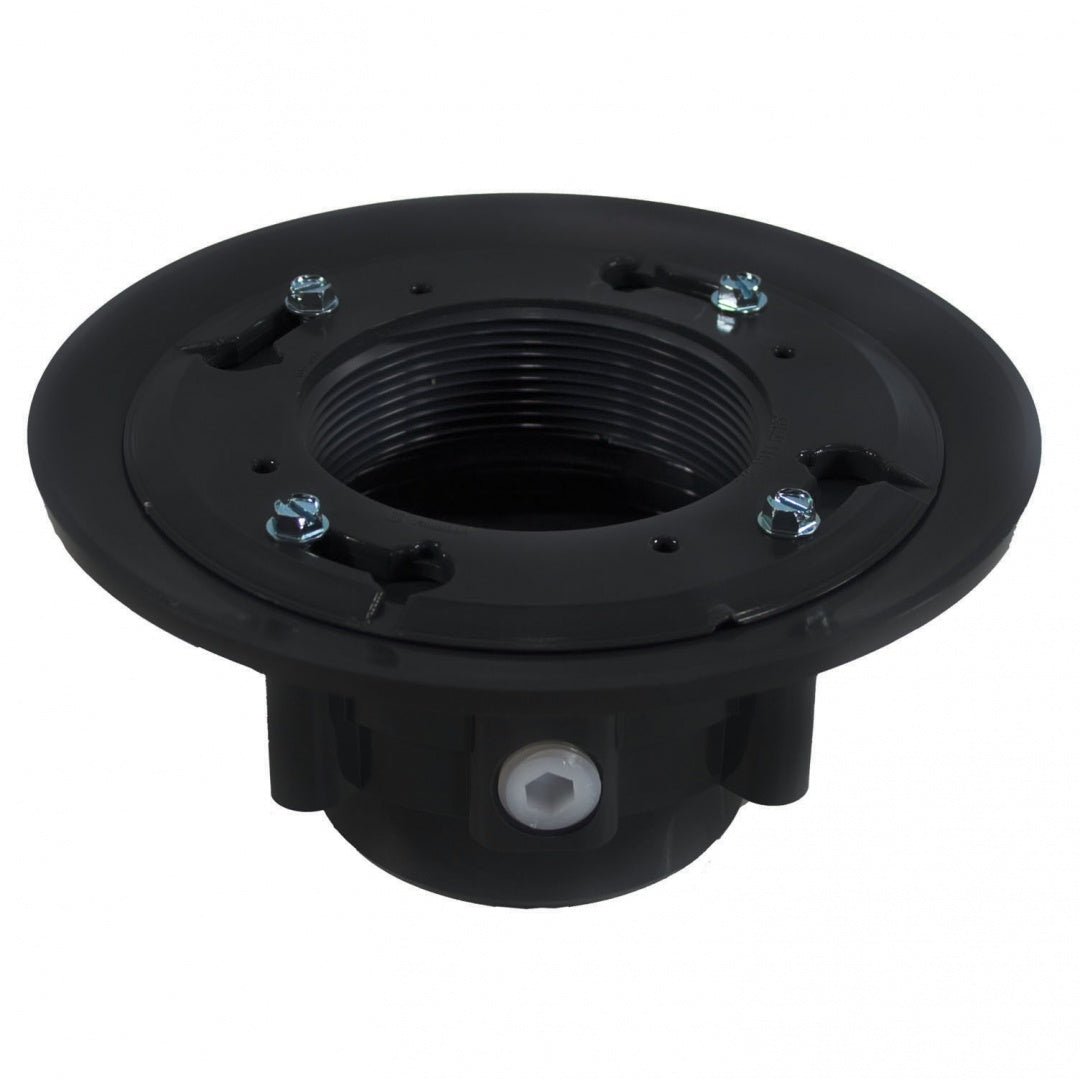

The Jones Stephens D49807 is a four-inch PVC standard floor drain designed for use with three and one-half inch spuds. This drain is built with a heavy-duty base and includes a clamping ring that fits over a four-inch Schedule 40 DWV pipe. It features an adjustable clamping ring that provides an additional one-inch height when needed.

• Constructed from durable gray PVC and black ABS materials.
• Includes extra weep holes for effective drainage.
• Comes with an eight and one-half inch pan that is primer tapped with a one-half inch plug.

Product Highlights

This floor drain is ideal for various plumbing applications, ensuring reliable drainage in residential and commercial settings.

Product Information

Standard Information

• Manufacturer: Jones Stephens Corp
• UPC: 717510498073

Technical Specifications

• Model: D49807
• Material: Gray PVC / Black ABS
• Size: 4 inches
• Connection Type: 3 1/2 inch spud
• Adjustable Height: Yes, provides additional 1 inch
• Pan Size: 8-1/2 inches
• Plug Size: 1/2 inch
