Jones Stephens D49059 2 X 3 PVC DRAIN W/MTL SPD &5 CP STR(8-1/2)

Product Description

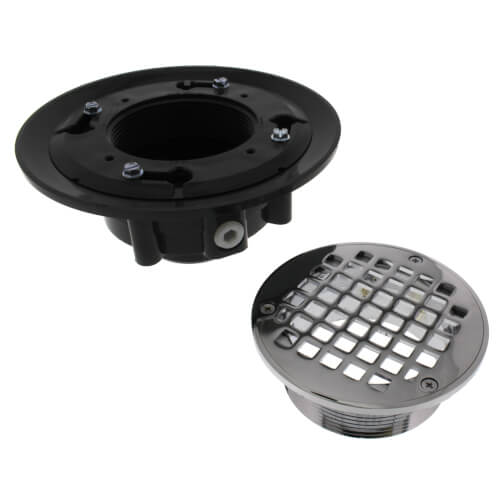

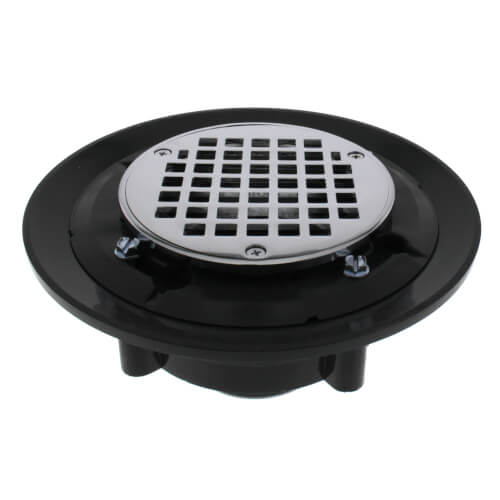

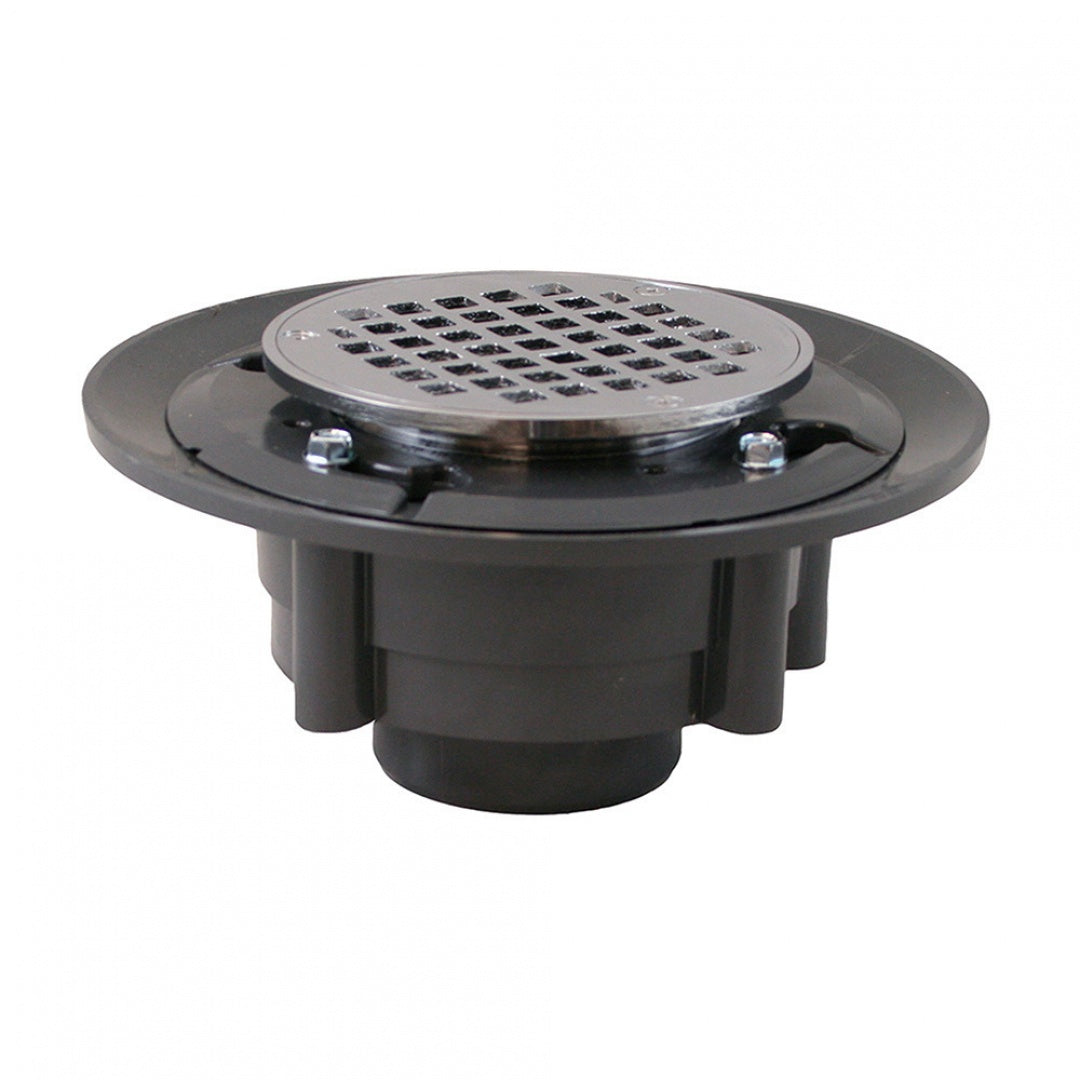

Jones Stephens D49059 is a two by three inch PVC drain with metal spud and five circular strainers. It is designed for heavy-duty use and fits over two inch and inside three inch schedule forty DWV pipe. This unit features a completely adjustable design with a reversible clamping ring that allows for an additional one inch of height, making it versatile for various installation situations.

• Two by three inch heavy-duty drain base with three and a half inch metal spud.
• Adjustable height with a reversible clamping ring.
• Available in different strainer designs including PB, NB, and CP.

Product Highlights

This drain assembly is made from gray PVC with black ABS components. It includes an eight and one half inch pan primer that is tapped with a one half inch plug, along with extra weep holes to enhance drainage effectiveness.

Product Information

Standard Information

• Manufacturer: Jones Stephens Corp
• Model Number: D49059

Technical Specifications

• Drain Size: 2 x 3 inches
• Spud Size: 3-1/2 inches
• Material: PVC and ABS
• Strainer Size: 5 inches
• Weight: 3.795 pounds
• Shipping Dimensions: 9.95 inches (depth) x 7.95 inches (width) x 7.7 inches (height)
