Jones Stephens D06050 Dielectric Union 1/2 FIP x 1/2 Sweat (1/2 in)

Product Description

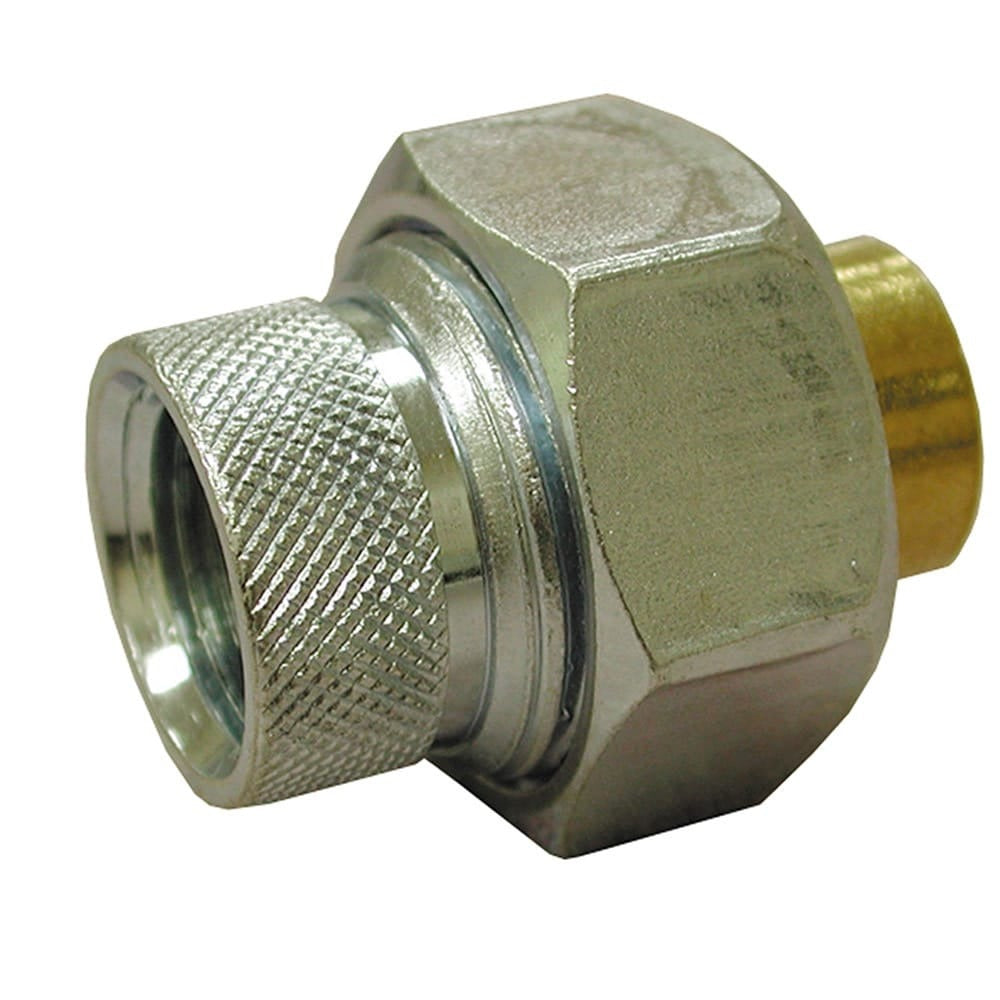

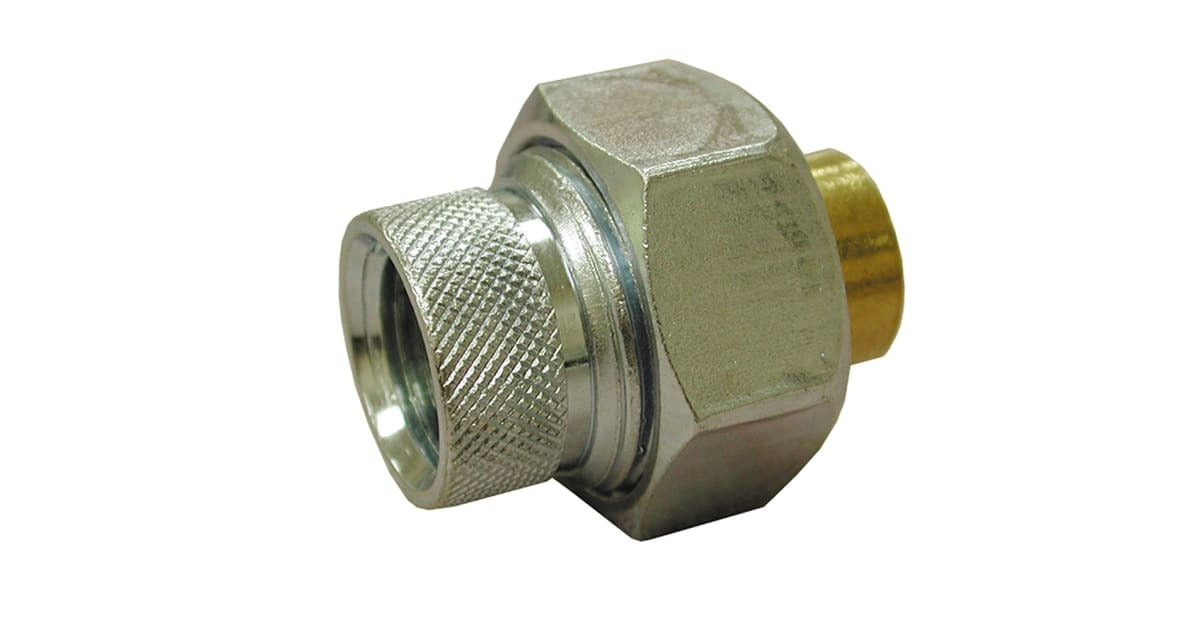

Jones Stephens D06050 is a 1/2 inch dielectric union that electrically isolates dissimilar metals in plumbing systems by combining a 1/2 inch female iron pipe (FIP) threaded end with a 1/2 inch sweat (solder) end. The union is zinc-plated forged steel, lead free, and rated to 250 PSI at 180 F. Solder ends conform to ANSI B16.19 and threads conform to ANSI B2.1 for residential and commercial use.

• 1/2 inch FIP (female iron pipe) threaded connection on one end and 1/2 inch sweat (solder) connection on the other
• Zinc-plated forged steel construction, lead free, outside diameter 5/8 inch
• Solder ends conform to ANSI B16.19; threads conform to ANSI B2.1; pressure rated 250 PSI at 180 F

Product Highlights

Electrically isolates dissimilar metals to prevent galvanic corrosion in residential and commercial plumbing.

Product Information

Standard Information

• Brand: JONES STEPHENS
• Manufacturer Part Number: D06050
• Country of Origin: China
