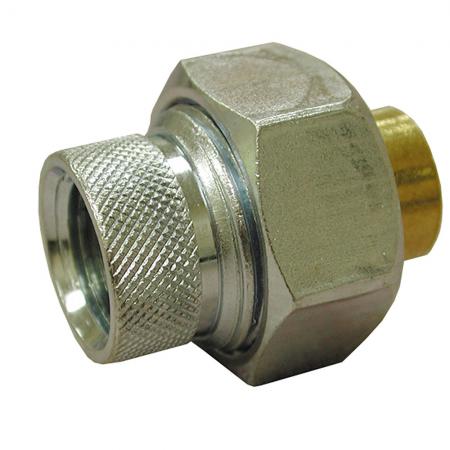

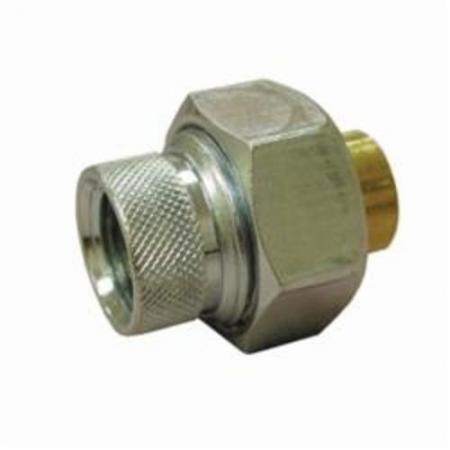

JONES STEPHENS D06050 1/2 FIP X 1/2 SWEAT DIELECTRIC UNION LF

Product Description

The JONES STEPHENS D06050 is a 1/2 inch dielectric union designed for connecting dissimilar metals in plumbing systems. This product is lead free and constructed from forged steel. It features a zinc plating for enhanced durability and corrosion resistance. With a length of one and seven eighths inches, it can withstand a pressure rating of two hundred fifty psi at a temperature of one hundred eighty degrees Fahrenheit.

• Lead free construction
• Zinc plated for corrosion resistance
• Solder ends conform to ANSI B16.19

Product Highlights

The JONES STEPHENS D06050 is ideal for both residential and commercial plumbing applications. It prevents galvanic action when connecting dissimilar metals, ensuring longevity and reliability in your plumbing systems.

Product Information

Standard Information

• Manufacturer: JONES STEPHENS CORP
• UPC: 717510060508

Technical Specifications

• Finish: Zinc Plated
• Length: 1-7/8 in
• Material: Forged Steel
• End Style: FNPT x C
• Dimensions: 5/8 in OD
• Nominal Size: 1/2 in
• Pressure Rating: 250 psi
• Temperature Rating: 180 deg F
