JONES STEPHENS CORP J40555 0-100PSI LIQ FILLED PRESS GAUGE

Product Description

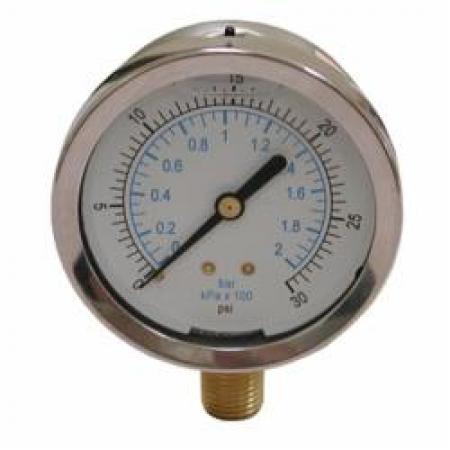

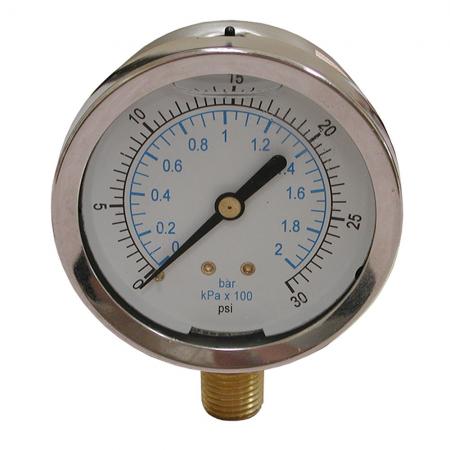

The JONES STEPHENS CORP J40555 is a pressure gauge designed to measure up to 100 psi. This device is equipped with a one-fourth inch NPT connection and features a dial diameter of two and a half inches. The liquid inside the gauge is glycerin, which helps to dampen vibrational effects. It operates accurately within a temperature range from negative fifty to one hundred fifty degrees Fahrenheit.

• Glycerin-filled for reduced vibration and pressure pulsation.
• Glass dial for easy visibility.
• Bottom mount design for straightforward installation.

Product Highlights

This pressure gauge is suitable for a variety of plumbing and heating applications. It provides reliable readings where consistent accuracy is important, especially in environments prone to vibration.

Product Information

Standard Information

• Brand: JONES STEPHENS CORP
• UPC: 717510405552

Technical Specifications

• Accuracy: +/- 1.5 %
• Connection Size: 1/4 in NPT
• Dial Diameter: 2-1/2 in
• Liquid Filled: Glycerin
• Material: 304 Stainless Steel Case
• Mounting Type: Bottom
• Pressure Range: 0 to 100 psi
• Temperature Rating: -50 to 150 deg F
