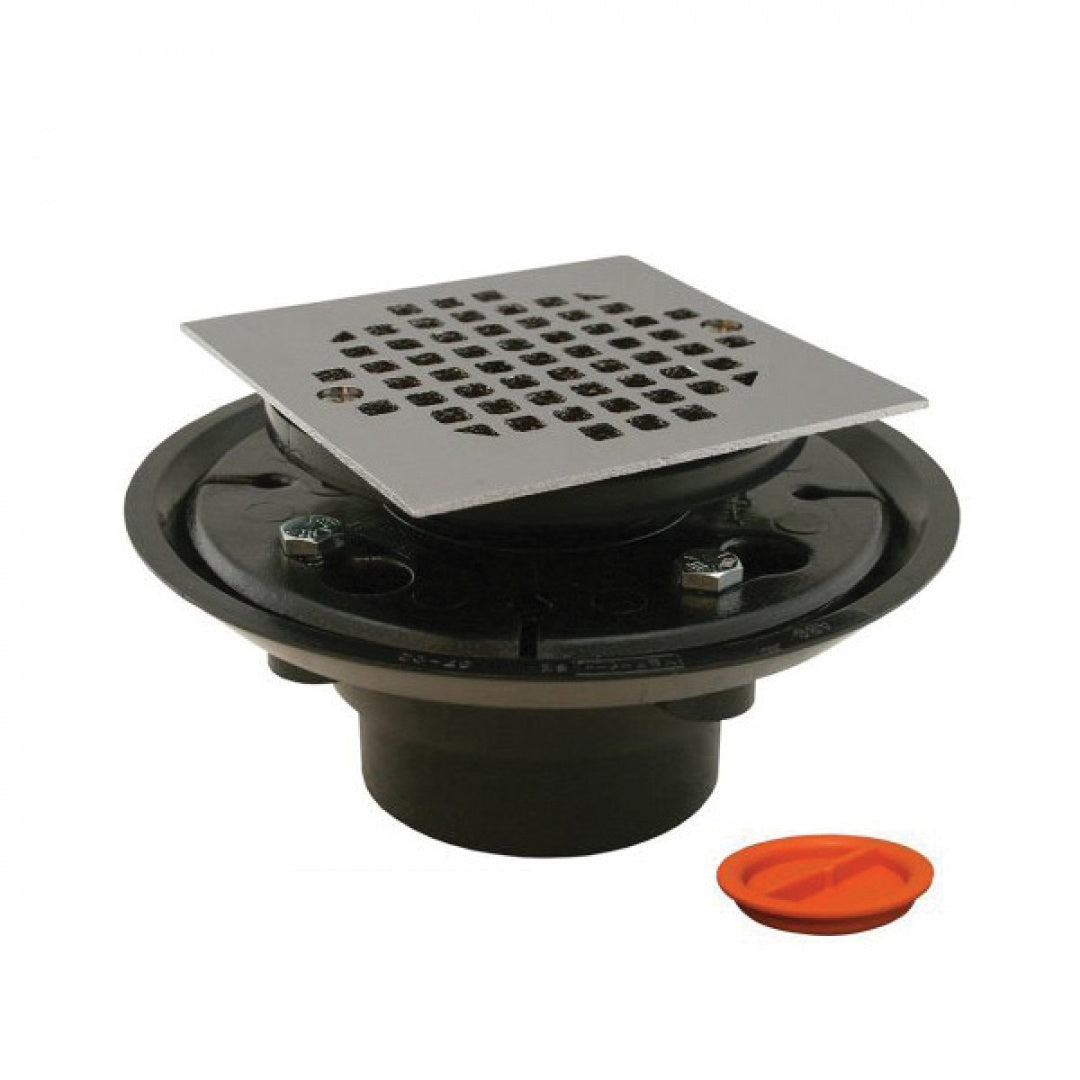

JONES STEPHENS CORP D50334TP 2X3 ABS SHR/FLR DRN W/4-1/4 SQ CP STR WITH TEST PLUG

Product Description

The JONES STEPHENS CORP D50334TP is a shower and floor drain designed for tiled installations. It features a nominal size of two by three inches and is constructed from durable ABS material. This product is ideal for residential applications and is compatible with both two and three-inch standard and schedule forty drainage pipes. Its innovative design includes a beveled edge for recessed installations, a reversible clamping ring for height adjustments, and brass inserts that ensure secure clamping.

• Fits over two or inside three-inch SCH forty/STD DWV pipe.
• Recessed sump area for effective drainage.
• Complies with new construction drain test requirements.

Product Highlights

This drain includes dual weep holes for optimal drainage and features a test plug to ensure a complete seal during testing. It can handle both wet tests from showers and pressure tests from above floors. The D50998 tailpiece extension can be used for additional height requirements.

Product Information

Standard Information

• Manufacturer: JONES STEPHENS CORP
• UPC: 717510211689

Technical Specifications

• Connection Type: Solvent Weld
• Dimensions: 6-1/2 in Dia x 3-1/4 to 4-3/8 in H
• Domestic/Import: Domestic
• Drain Material: ABS
• Grid Size: 4 in
• Nominal Size: 2 x 3 in
• Type: Tiled
• Manufacturer: JONES STEPHENS CORP
