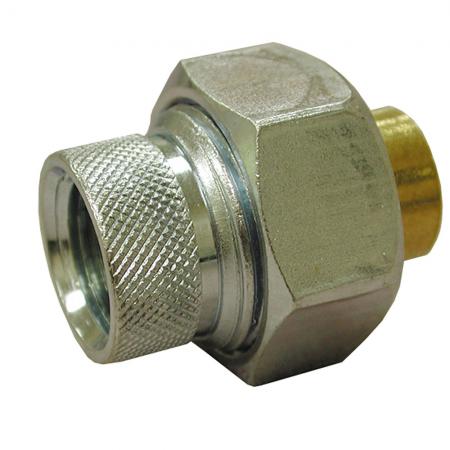

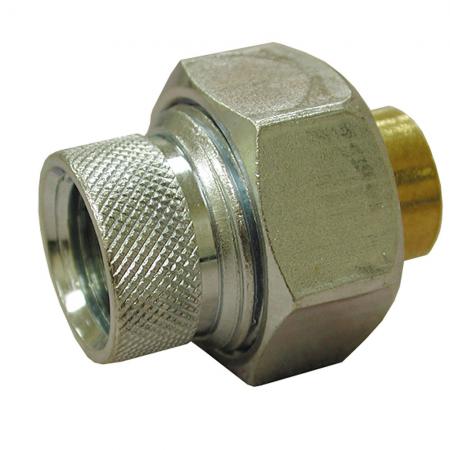

JONES STEPHENS CORP D06350 3/4 FIP X 1/2 SWT DIELECTRIC UNION LF

Product Description

The JONES STEPHENS CORP D06350 is a reducing dielectric union designed for plumbing applications. This product features a nominal size of three-fourths inch by one-half inch and is made of forged steel. The dielectric union helps prevent electrolysis or galvanic action when connecting dissimilar metals.

• Lead free construction
• Pressure rating up to 250 psi
• Temperature rating of 180 degrees Fahrenheit

Product Highlights

This dielectric union is suitable for both residential and commercial applications. It includes an EPDM washer and an ABS fiber sleeve for enhanced durability.

Product Information

Standard Information

• Manufacturer: JONES STEPHENS CORP
• UPC: 717510063509

Technical Specifications

• Nominal Size: 3/4 x 1/2 inches
• End Style: FNPT x C
• Dimensions: 5/8 inches OD
• Length: 1-7/8 inches
• Pressure Rating: 250 psi
• Temperature Rating: 180 degrees Fahrenheit
• Finish: Zinc Plated
• Material: Forged Steel
