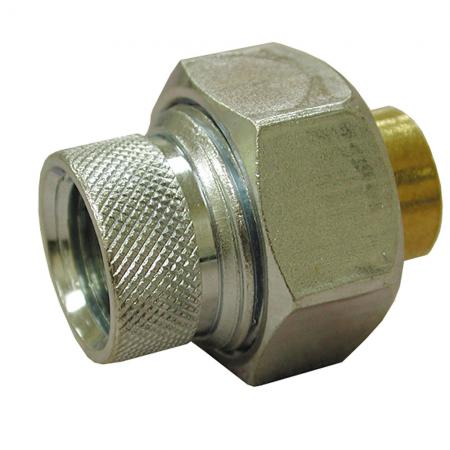

JONES STEPHENS CORP D06150 1-1/2 FIP X 1-1/2 SWT DIELECTRIC UNION LF

Product Description

JONES STEPHENS CORP D06150 is a dielectric union designed for plumbing applications. It is lead-free and measures one and a half inches nominal size. This product features female NPT and copper connections, with a length of two and five eighths inches. It can handle pressures up to two hundred fifty psi and temperatures reaching one hundred eighty degrees Fahrenheit.

• Prevents electrolysis and galvanic action when connecting different metals
• Constructed with an EPDM washer and an ABS fiber sleeve
• Suitable for use in residential and commercial settings

Product Highlights

This dielectric union is essential for preventing corrosion when different metal pipes are joined.

Product Information

Standard Information

• Manufacturer: JONES STEPHENS CORP

Technical Specifications

• Finish: Zinc Plated
• Length: 2-5/8 in
• Material: Forged Steel
• End Style: FNPT x C
• Dimensions: 1-5/8 in OD
• Nominal Size: 1-1/2 in
• Pressure Rating: 250 psi
• Temperature Rating: 180 deg F
