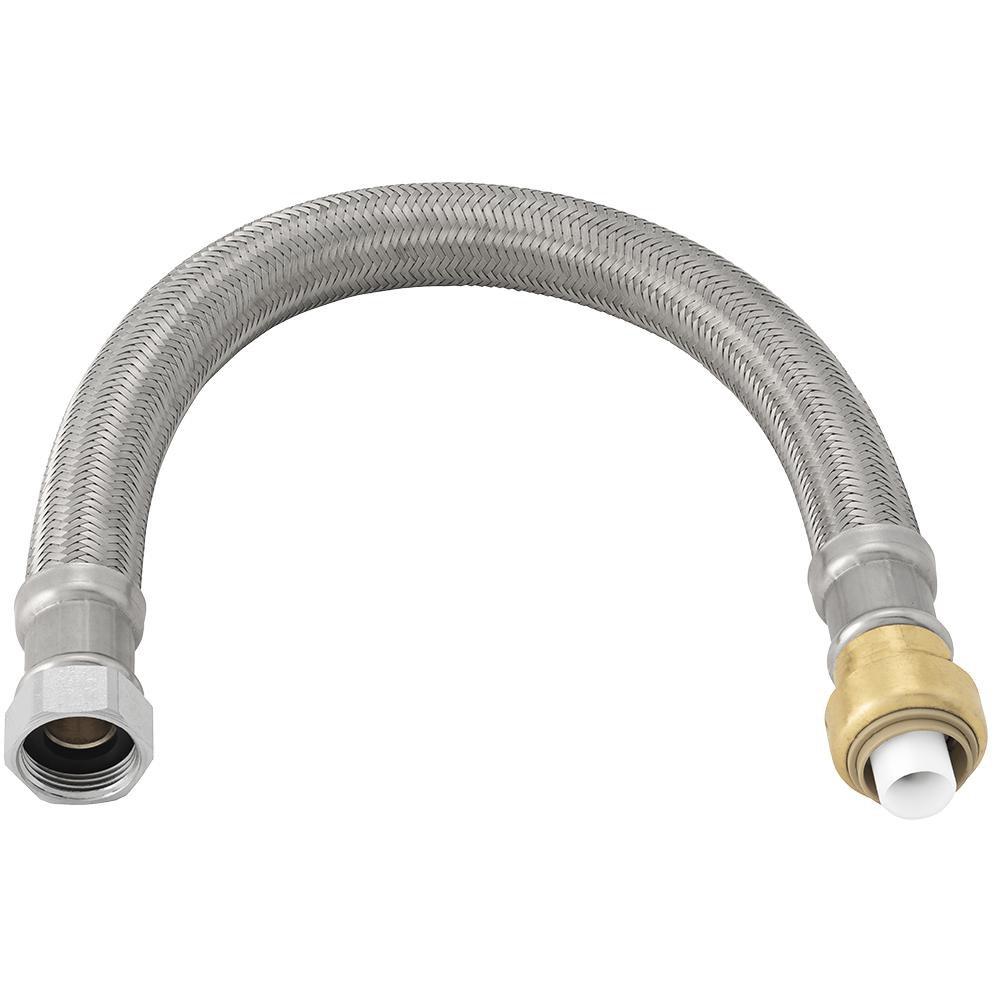

Jones Stephens C77478LF Plumbite 18 x 3/4 in. Water Heater Connector

Product Description

The Jones Stephens C77478LF is a Plumbite® water heater connector, designed to simplify installations. This connector features a heat-free method for joining various types of tubing, including copper, CPVC, PEX, and PE-RT. The innovative design requires no soldering, glue, or heating tools. The stainless steel gripper ring and EPDM O-ring ensure a secure connection with a reliable seal.

• No soldering or tools required for installation
• Compatible with copper, CPVC, PEX, and PE-RT tubing
• Maximum temperature of 180°F and pressure of 200 PSI

Product Highlights

This water heater connector is certified by NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASME A112.18.6/CSA B125.6, UPC, and cUPC by IAPMO. With a five-year warranty, the connector can be disassembled and reused with a special tool.

Product Information

Standard Information

• Brand: Jones Stephens
• MPN: C77478LF

Technical Specifications

• Type: Water Heater Connector
• Size: 18 inches x 3/4 inch
• Material: Lead-free
• Installation Method: Push fitting
• Maximum Temperature: 180°F
• Maximum Pressure: 200 PSI
• Warranty: 5 years
