Jones Stephens C77477LF Plumbite 3/4 x 3/4 FIP x 18 In. Push On Water Heater Connector With Ball Valve

Product Description

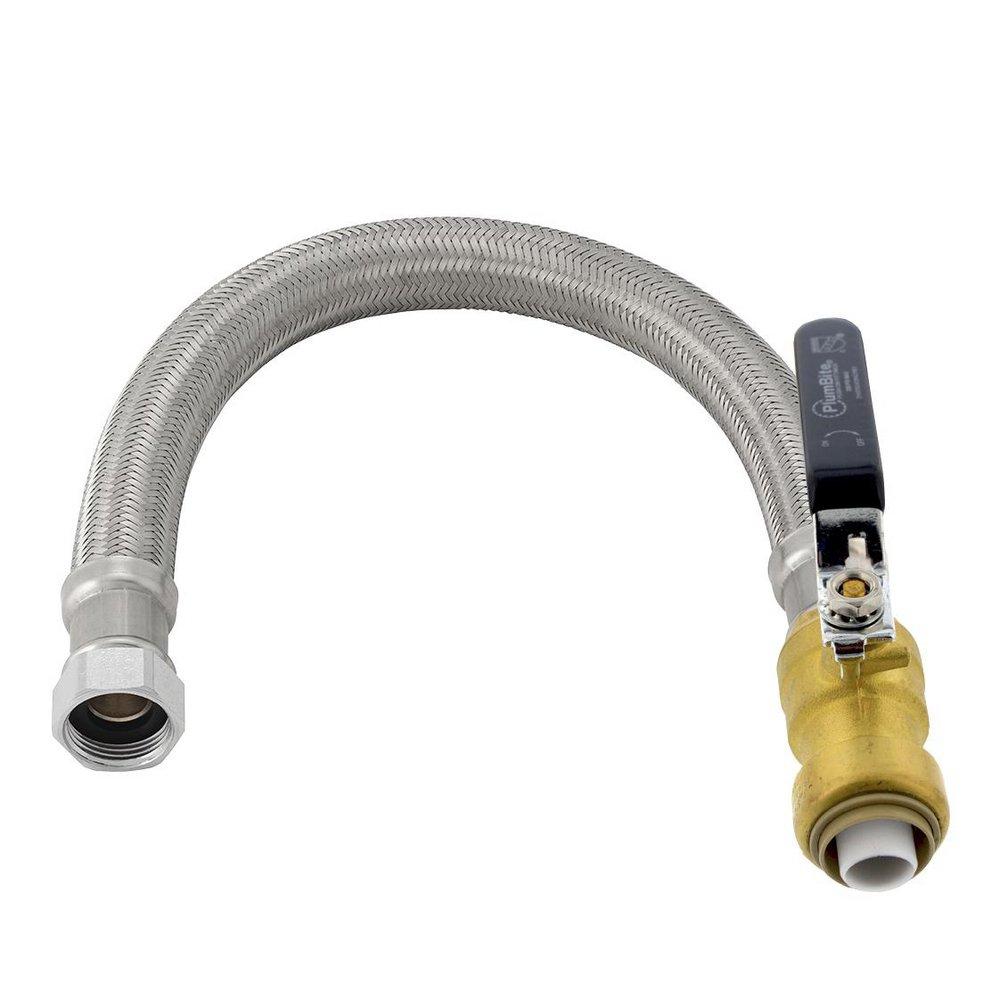

The Jones Stephens C77477LF is a Plumbite® water heater connector designed for easy installation. This push-on connector features a ball valve and eliminates the need for soldering, glue, or heat. It is suitable for joining copper, CPVC, PEX, or PE-RT tubing without tools.

• Secure connection with stainless steel gripper ring and EPDM O-ring
• Heat-free joining for efficient installation
• Can be disassembled and reused with a separate tool

Product Highlights

This connector supports a maximum temperature of one hundred eighty degrees Fahrenheit and a maximum pressure of two hundred PSI.

Product Information

Standard Information

• Brand: Jones Stephens
• Manufacturer Part Number: C77477LF

Technical Specifications

• Maximum Temperature: 180°F
• Maximum Pressure: 200 PSI
• Connection Type: Push-On with Ball Valve
• Connector Size: 3/4 x 3/4 FIP
• Length: 18 inches
• Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASME A112.18.6/CSA B125.6, UPC, cUPC by IAPMO
• Warranty: 2 years
