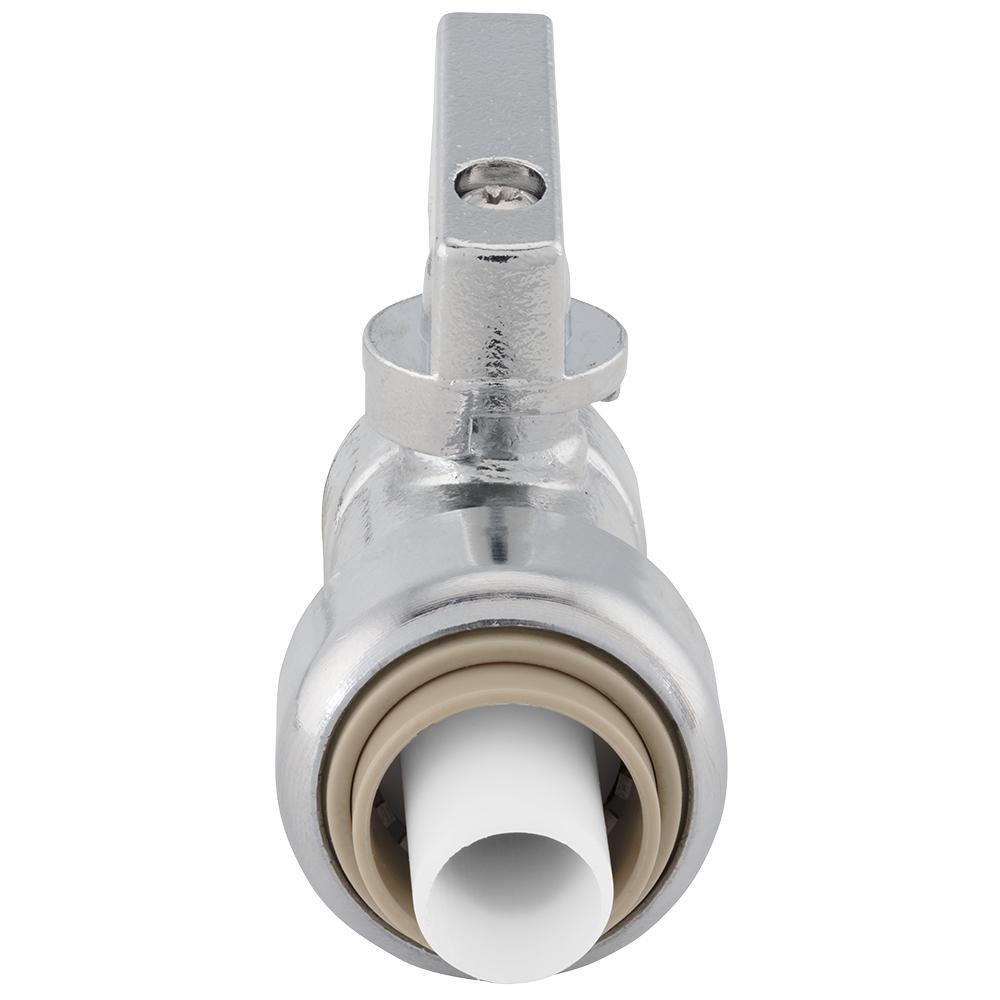

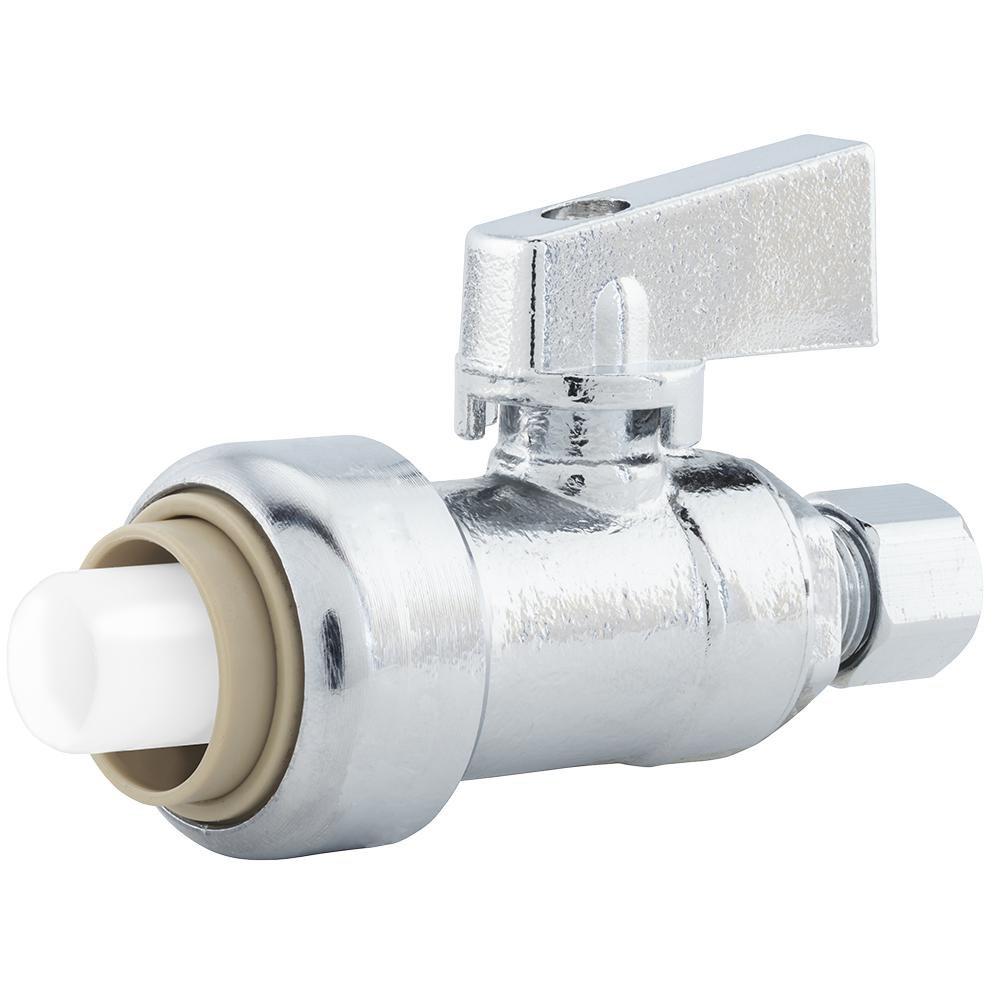

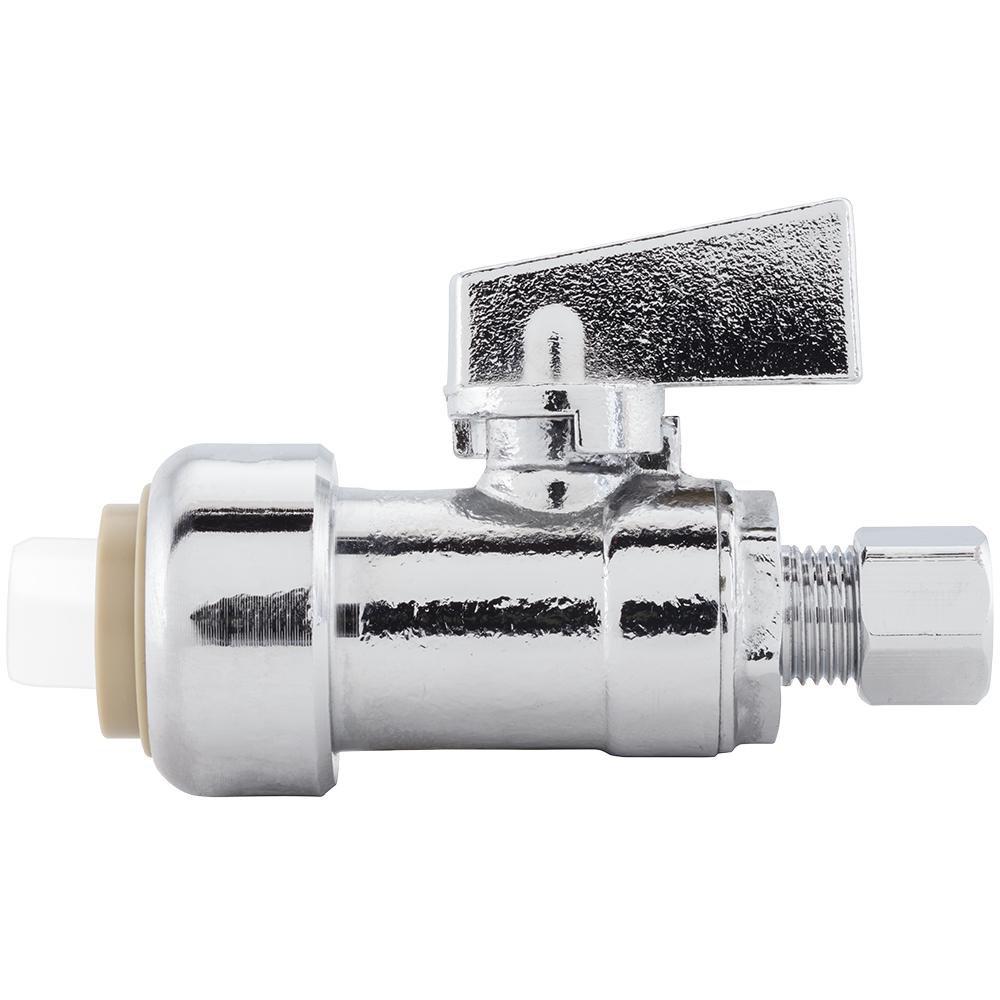

Jones Stephens C77475LF Plumbite 1/2 x 3/8 in. Push x Compression Straight Supply Stop Valve

Product Description

The Jones Stephens C77475LF is a straight supply stop valve designed for push and compression connections. This valve features a chrome finish and eliminates the need for soldering, glue, or tools, making installation quick and easy.

• No soldering or heat required for installation.
• Equipped with stainless steel gripper ring and EPDM O-ring.
• Lead-free construction for safety and compliance.

Product Highlights

This supply stop valve allows for a heat-free method of joining copper, CPVC, PEX, or PE-RT tubing. It has a maximum temperature rating of one hundred eighty degrees Fahrenheit and a maximum pressure rating of two hundred PSI. The valve can be disassembled and reused using a separate disassembly tool, increasing its adaptability for future plumbing needs.

Product Information

Standard Information

• Manufacturer: Jones Stephens Corp
• MPN: C77475LF

Technical Specifications

• Pipe Size: 1/2 x 3/8 inches
• Connection Type: Push x Compression
• Maximum Temperature: 180 degrees Fahrenheit
• Maximum Pressure: 200 PSI
• Lead-Free: Yes
• Standards/Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASME A112.18.1/CSA B125.1, UPC, cUPC
