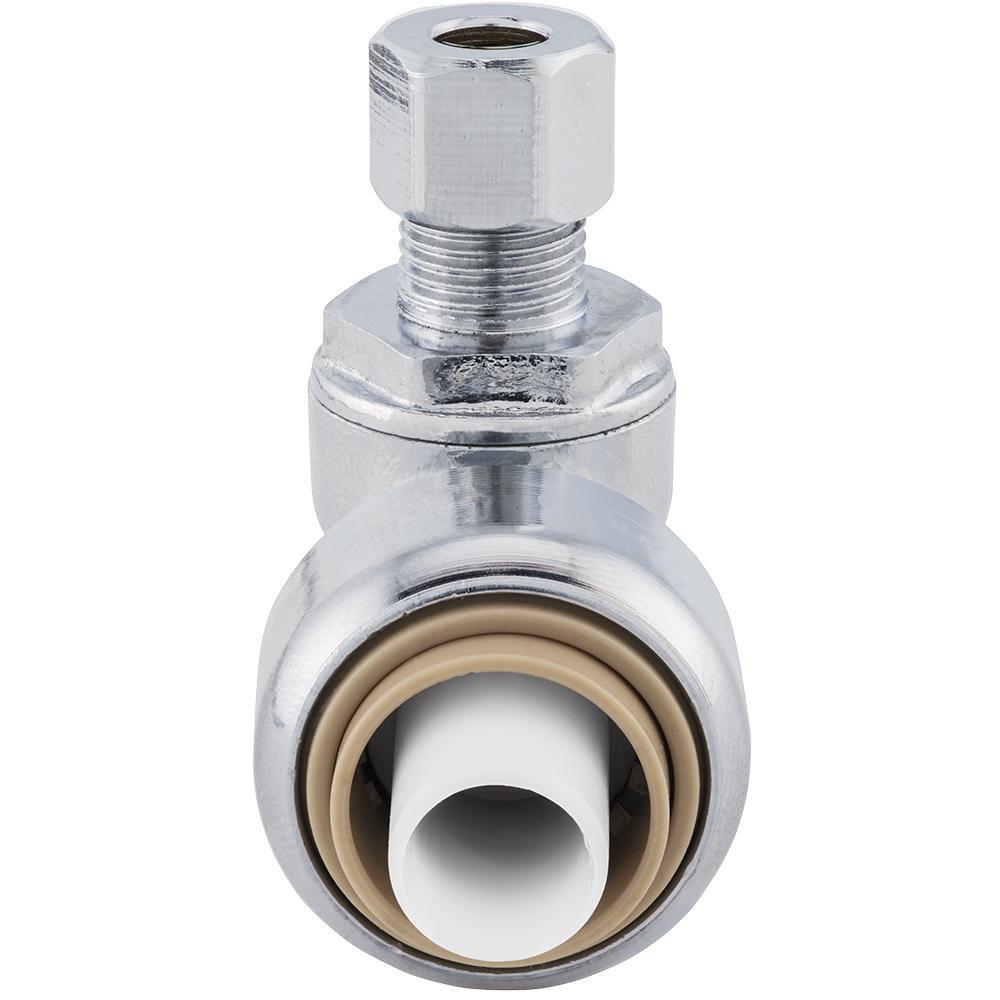

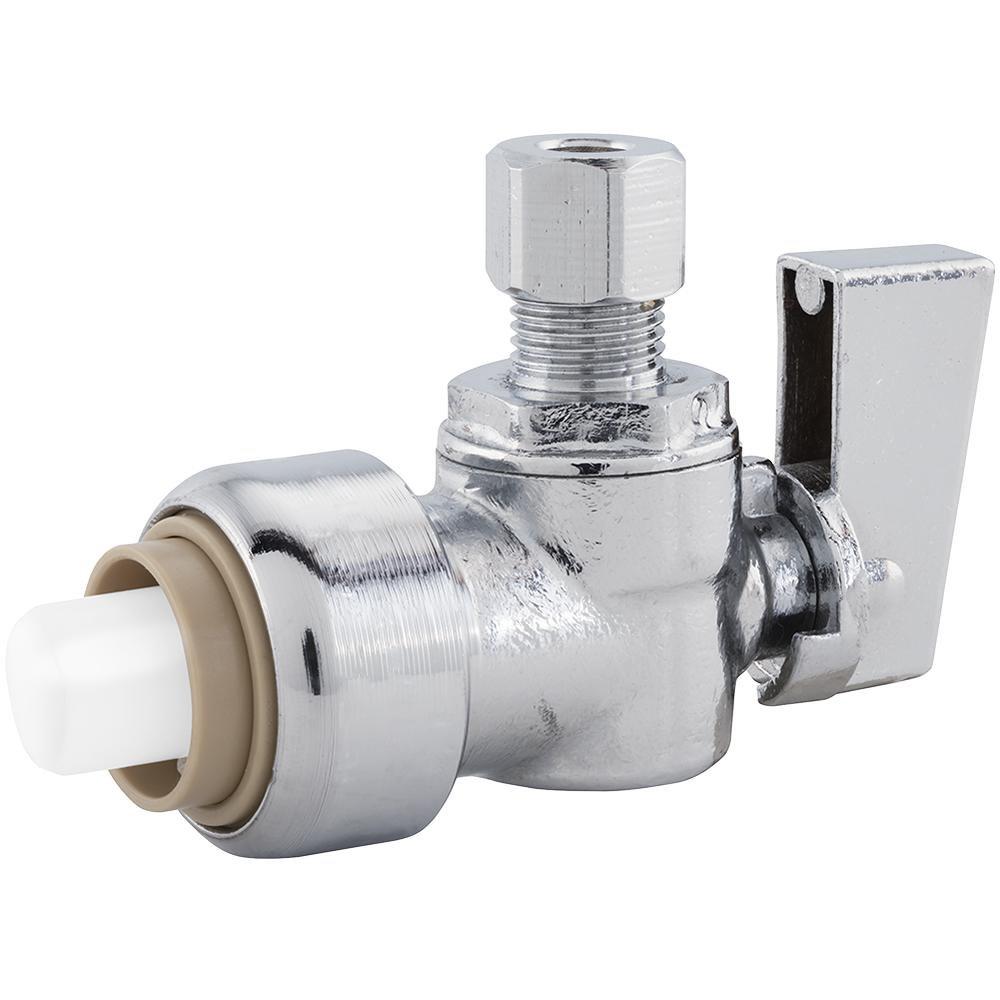

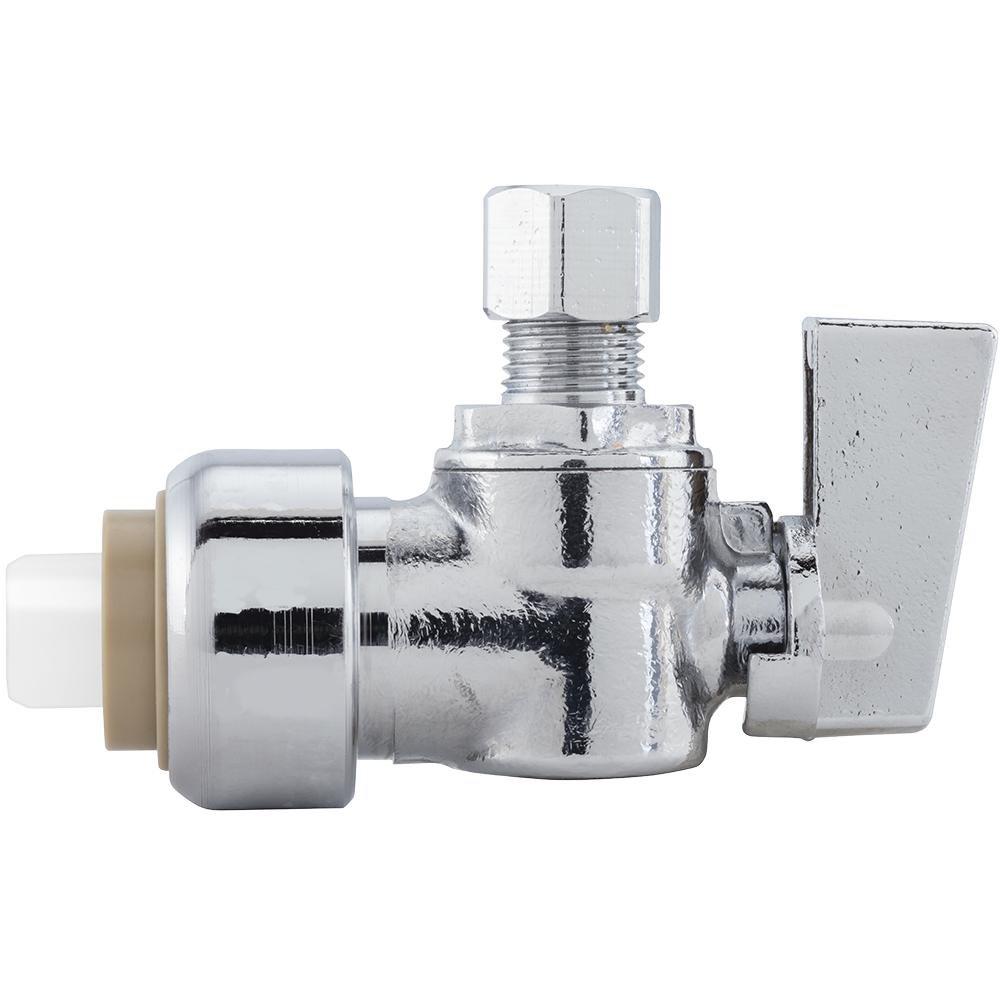

Jones Stephens C77473LF Plumbite 1/2 x 3/8 in Push x Compression Angle Supply Stop Valve

Product Description

The Jones Stephens C77473LF is a reliable supply stop valve designed for plumbing applications, featuring a half-inch by three-eighths inch push to compression fitting. This valve allows for easy installation without the need for soldering or glue.

• No tooling is required for joining pipes, making installation straightforward and efficient.
• Made with a stainless steel gripper ring and EPDM O-ring for a secure connection.
• Designed to work with copper, CPVC, PEX, or PE-RT tubing.

Product Highlights

This valve is perfect for use in tight spaces where a quarter-turn angle stop is ideal, and it can handle a maximum temperature of one hundred eighty degrees Fahrenheit and a maximum pressure of two hundred PSI.

Product Information

Standard Information

• Brand: Jones Stephens
• MPN: C77473LF

Technical Specifications

• Material: Chrome
• Connection Type: Push x Compression
• Max Temperature: 180 degrees Fahrenheit
• Max Pressure: 200 PSI
• Lead-Free: Yes
• Warranty: 2 years
• Standards: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASME A112.18.1/CSA B125.1
• Compatible Tubing Types: Copper, CPVC, PEX, PE-RT
